Connector End View - X404 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

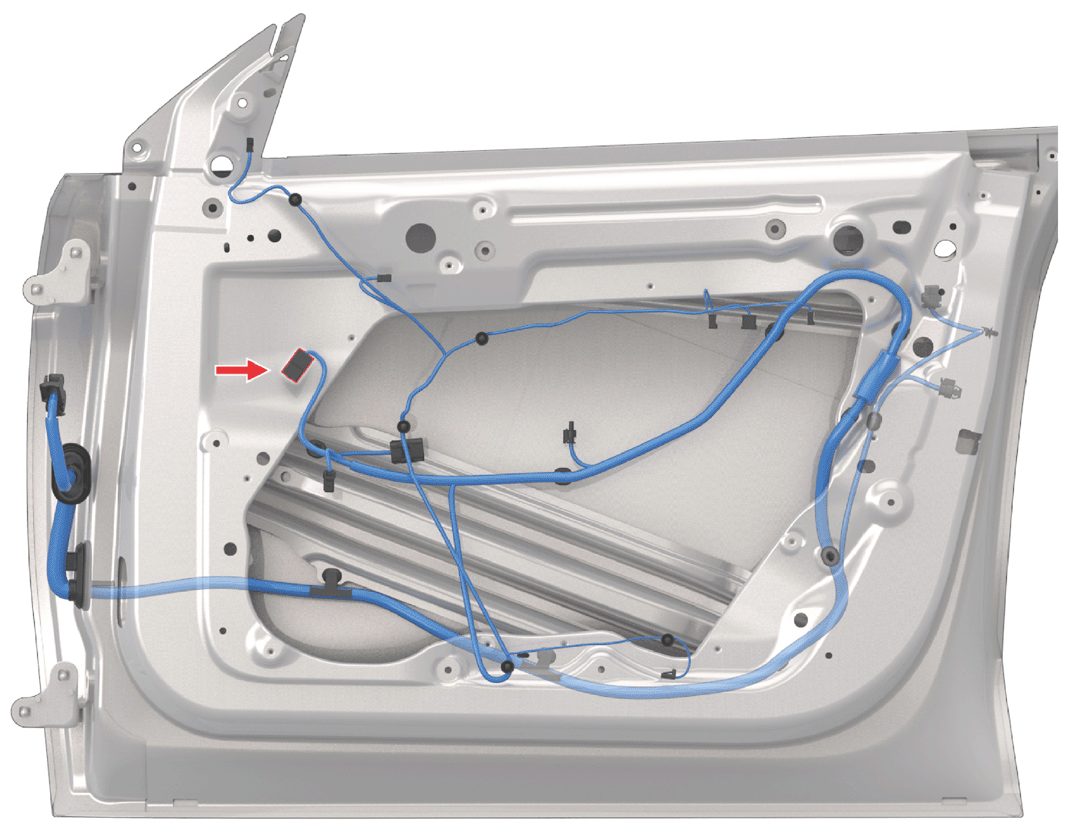

Fig 1: Connector Component Location - X404 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-3802
Color: WH

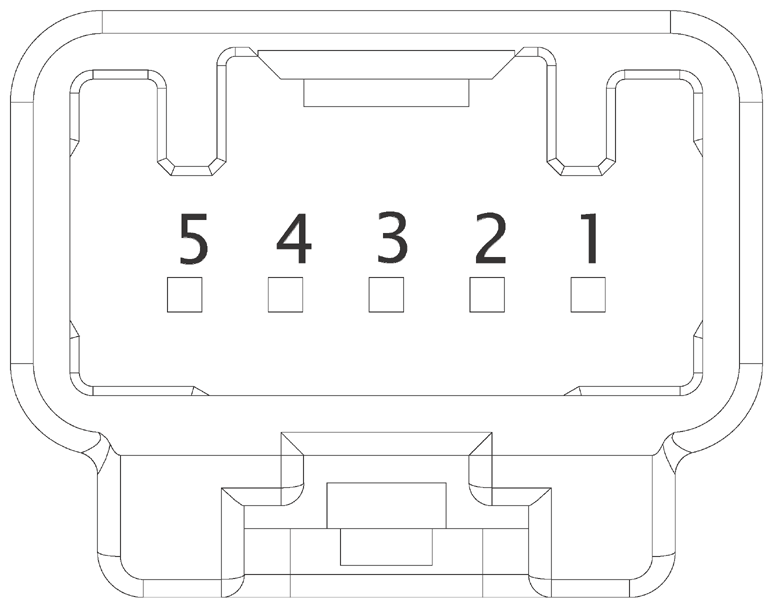

Fig 2: Connector End View - X404 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | VT | 0.13 | SN | X053A-15 | 8230-4878 |
| 2 | |||||
| 3 | WH | 0.13 | SN | X053A-16 | 8230-4878 |
| 4 | |||||
| 5 | BU | 0.13 | SN | X053A-14 | 8230-4878 |
