Connector End View - X366 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

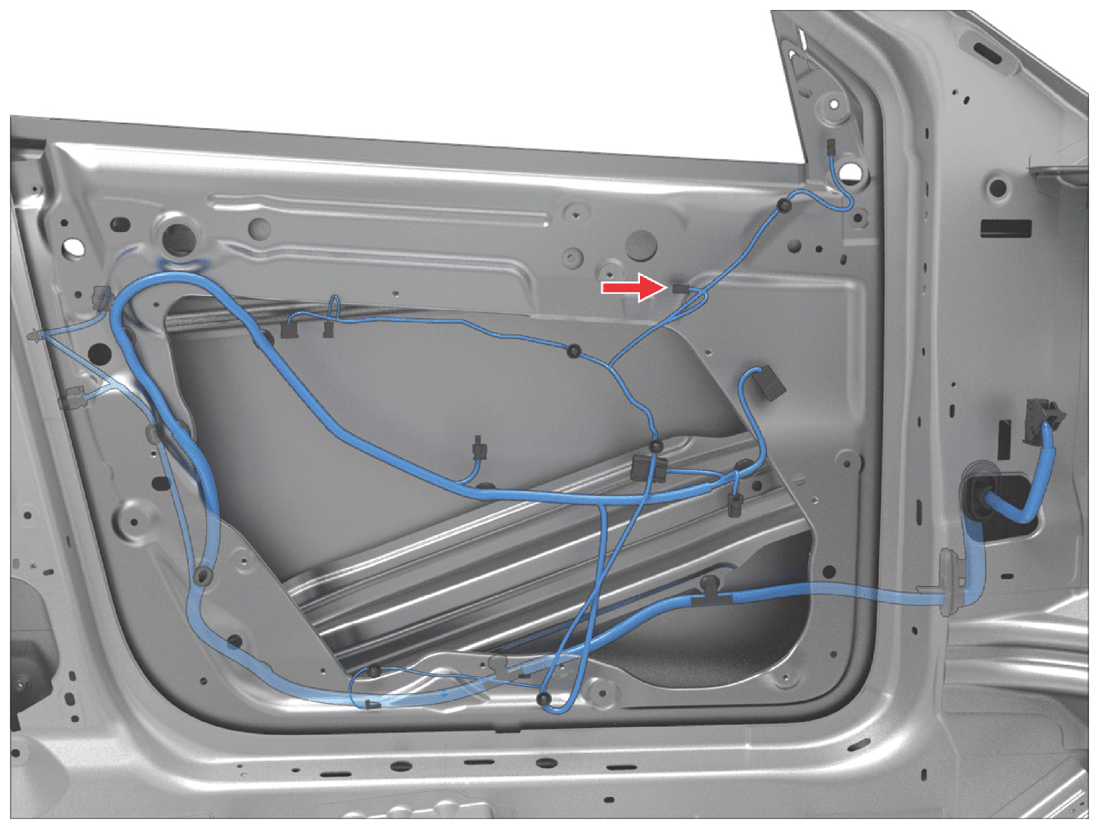

Fig 1: Connector Component Location - X366 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 3-1718346-1
Color: BU

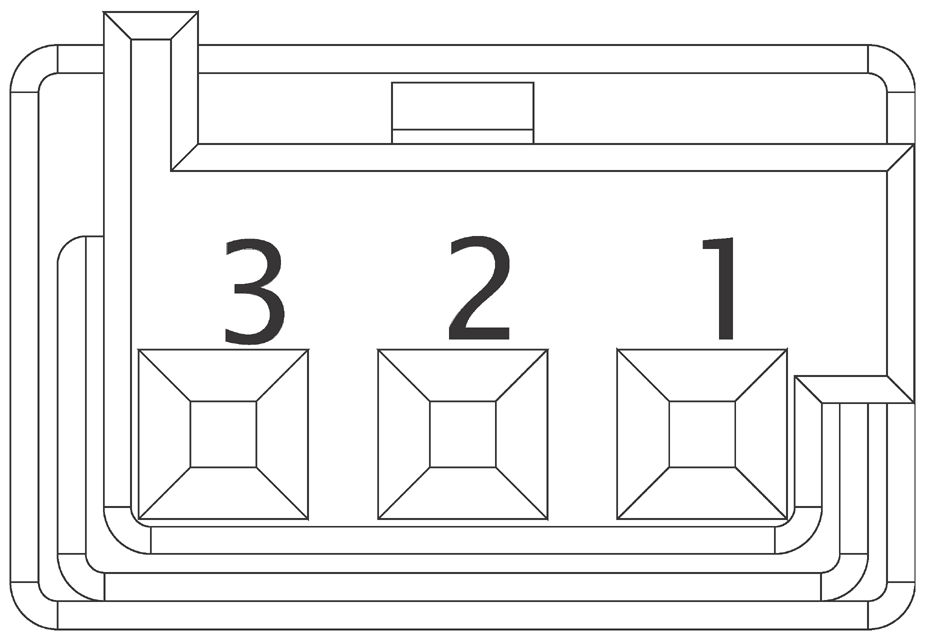

Fig 2: Connector End View - X366 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | 5-928999-1 | |
| 2 | YE | 0.13 | SN | X033A-12 | 1355717-1 |
| 3 | WH | 0.13 | SN | X033A-4 | 1355717-1 |
