Connector End View - X191 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

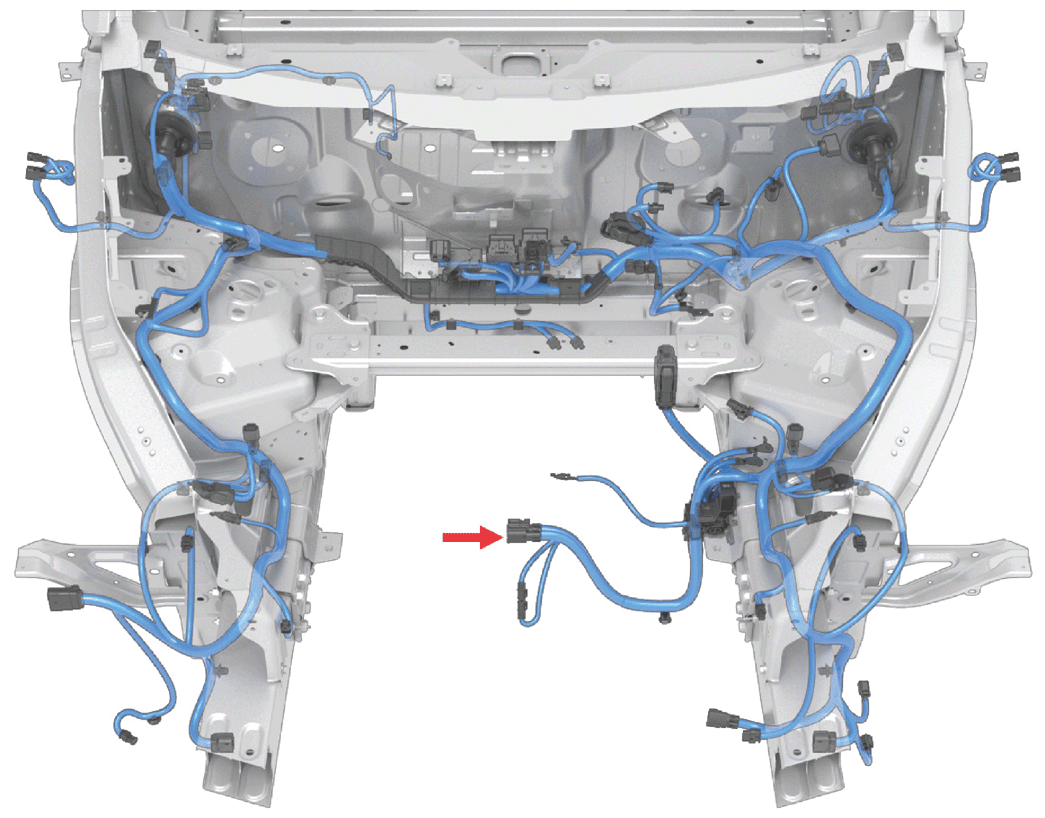

Fig 1: Connector Component Location - X191 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: YAZAKI 7287-1990-30
Color: BK

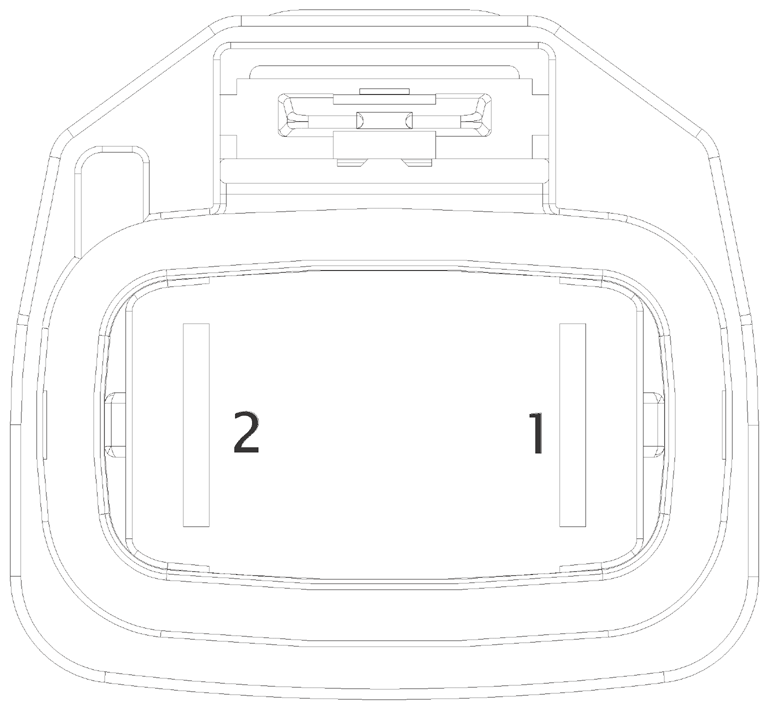

Fig 2: Connector End View - X191 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | WH | 13 | AG | X015-2 | 7116-5625-06 | 7158-3713-70 |
| 2 | BK | 13 | AG | G099-1 | 7116-5625-06 | 7158-3713-70 |
