Connector End View - X157 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

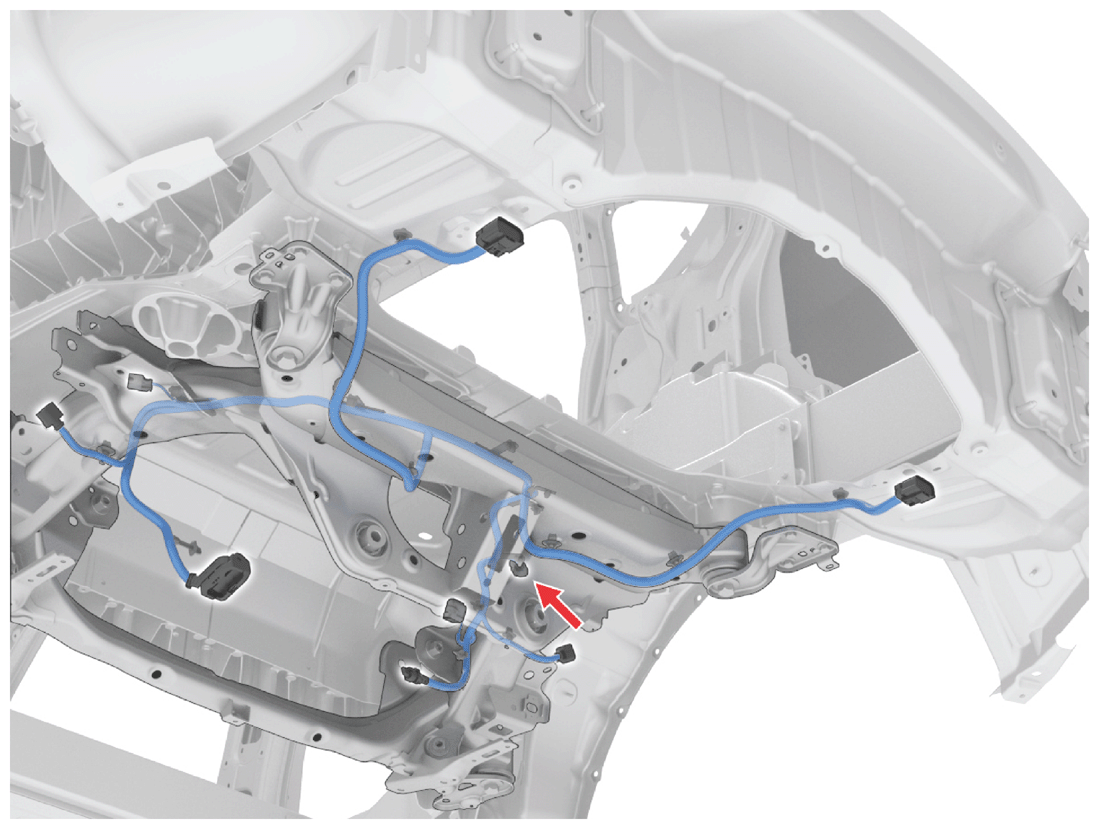

Fig 1: Connector Component Location - X157 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 33164011
Color: BK

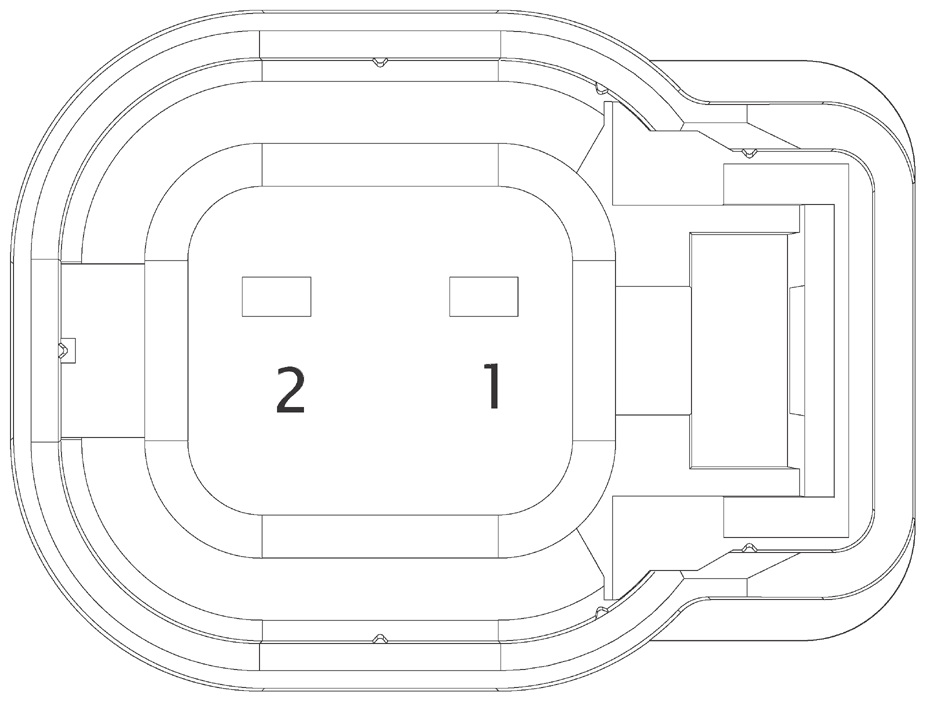

Fig 2: Connector End View - X157 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | WH | 0.35 | SN | X952F-4 | 7116-4102-02 | 7158-3030-50 |
| 2 | VT | 0.35 | SN | X952F-5 | 7116-4102-02 | 7158-3030-50 |
