Connector End View - X150 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

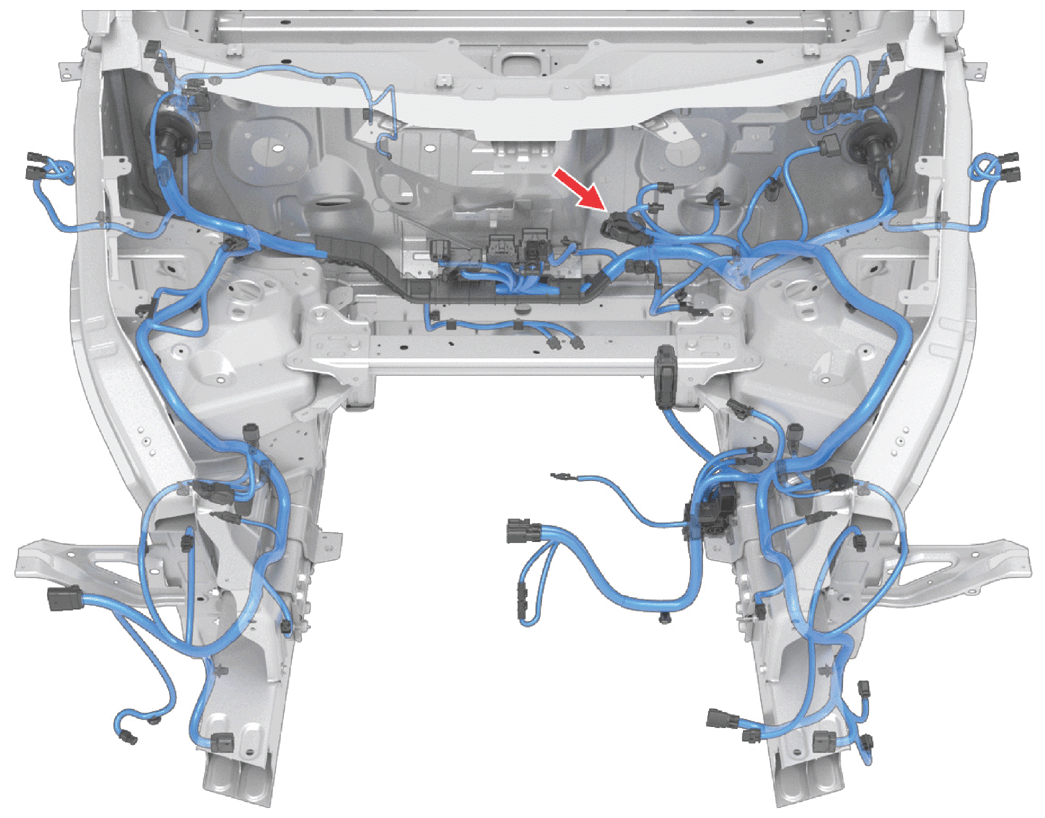

Fig 1: Connector Component Location - X150 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: BOSCH 1928405762

Color: BK

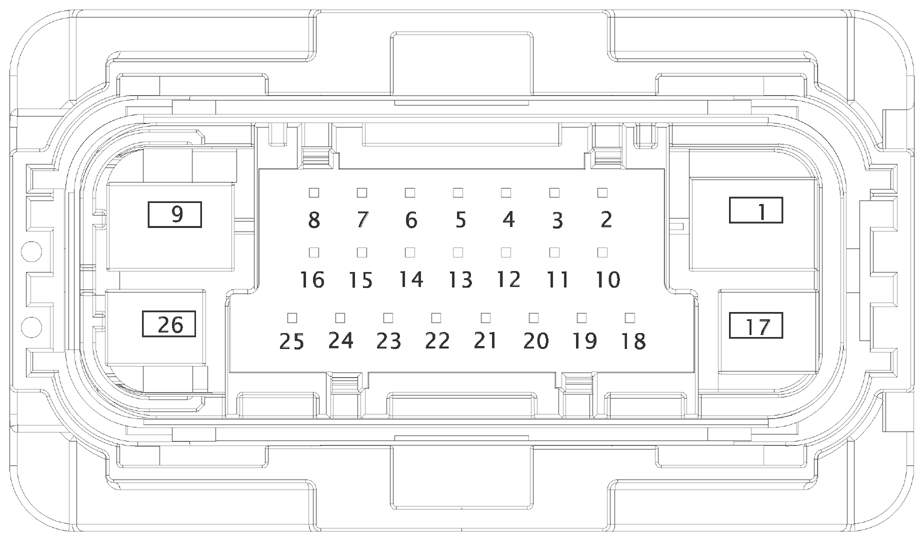

Fig 2: Connector End View - X150 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal
1	RD	4.00	SN	X012-5	1928498807	1928301086
2	GN	0.50	SN	X158-2	1928498705	1928301118
3
4
5
6
7
8	GY	0.50	SN	X158-4	1928498705	1928301118
9	BK	4.00	SN	G014_B-1	1928498807	1928301086
10	RD	0.35	SN	X010-55	1928498705	1928301118
11
12
13
14
15
16	BU	0.35	SN		1928498705	1928301118
17
18	GY	0.35	SN	X010-54	1928498705	1928301118
19
20	YE	0.35	SN	X010-6	1928498705	1928301118
21
22	WH	0.50	SN	X158-1	1928498705	1928301118
23	BU	0.50	SN	X158-3	1928498705	1928301118
24
25	YE	0.35	SN		1928498705	1928301118
26
