Connector End View - X145 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

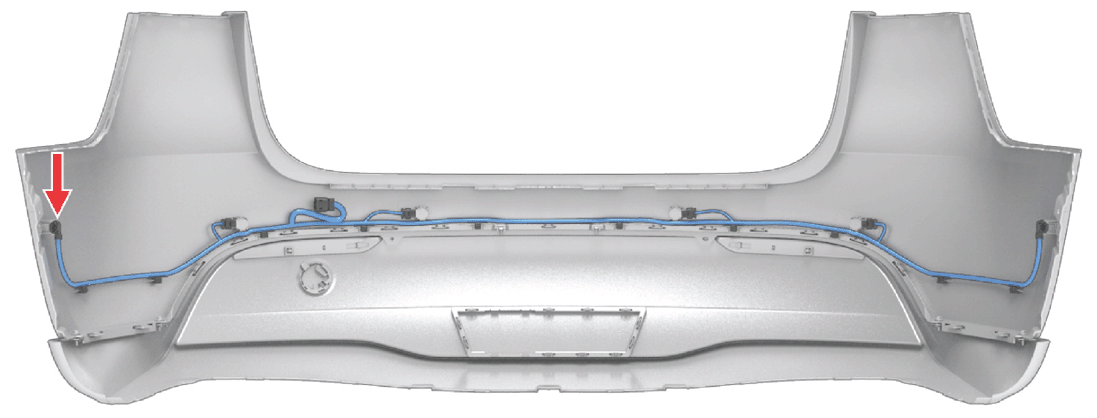

Fig 1: Connector Component Location - X145 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 35126370
Color: BK

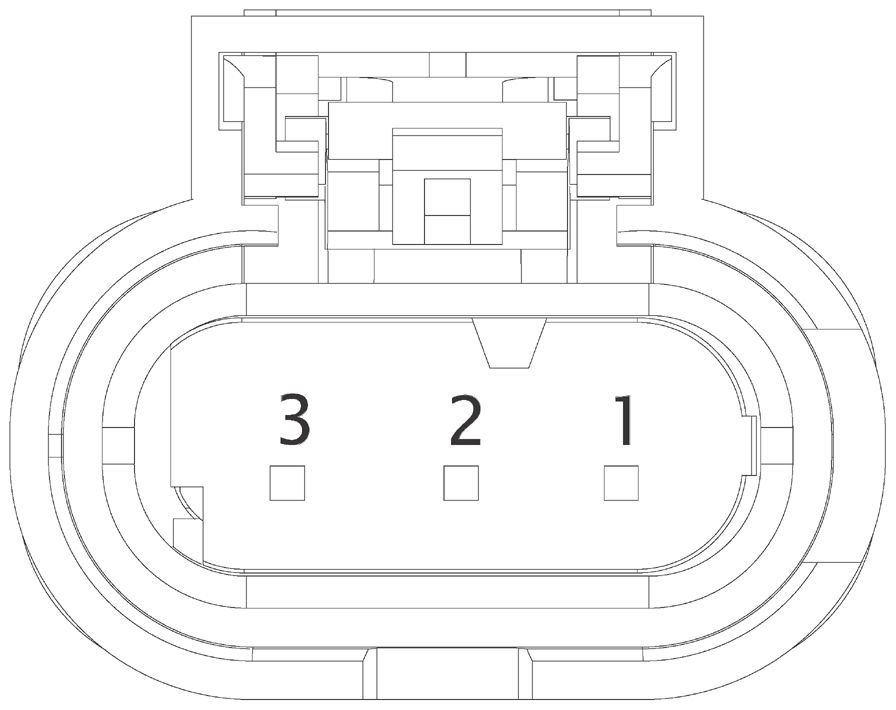

Fig 2: Connector End View - X145 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | 7-1452665-1 | 967067-2 | |
| 2 | YE | 0.35 | SN | X949F-3 | 7-1452665-1 | 967067-2 |
| 3 | BK | 0.35 | SN | 7-1452665-1 | 967067-2 |
