Connector End View - X091 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

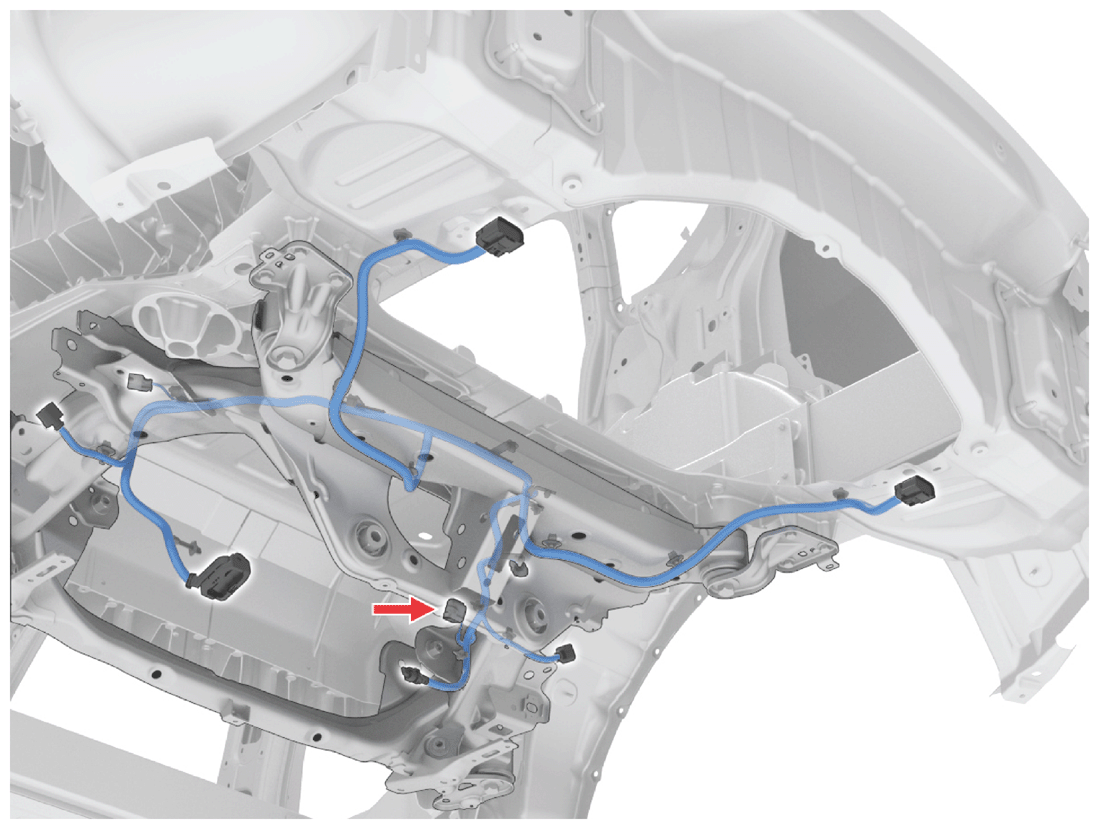

Fig 1: Connector Component Location - X091 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 1-2282337-1
Color: BK

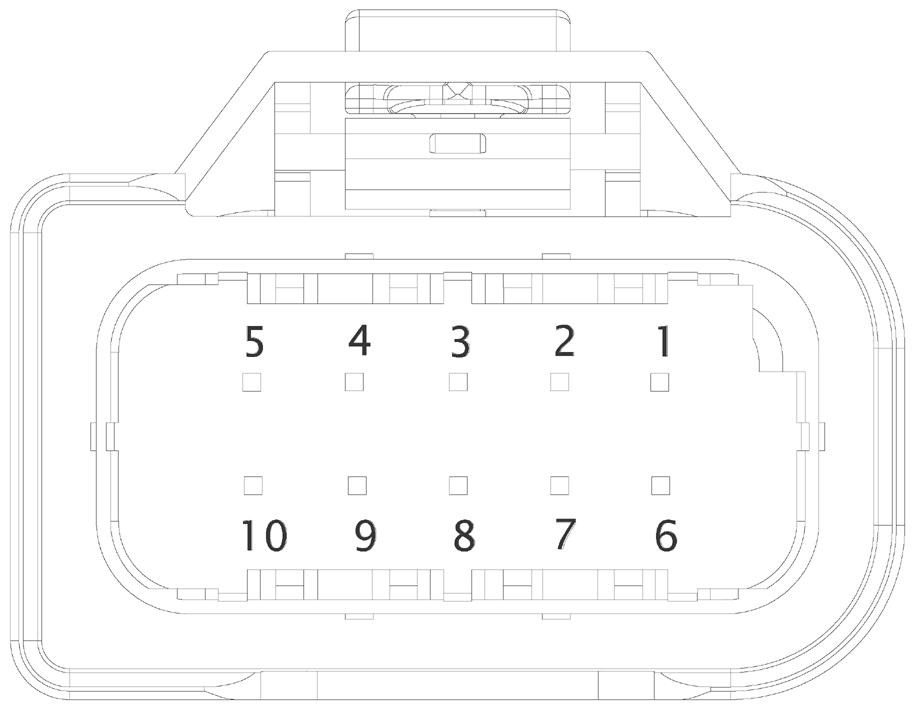

Fig 2: Connector End View - X091 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | ||||||
| 2 | ||||||
| 3 | YE | 0.35 | AU | X090-26 | 7-1452665-2 | 967067-2 |
| 4 | GN | 0.35 | AU | X090-17 | 7-1452665-2 | 967067-2 |
| 5 | VT | 0.35 | AU | X090-8 | 7-1452665-2 | 967067-2 |
| 6 | ||||||
| 7 | ||||||
| 8 | BK | 0.35 | AU | X090-16 | 7-1452665-2 | 967067-2 |
| 9 | RD | 0.35 | AU | X090-7 | 7-1452665-2 | 967067-2 |
| 10 | BU | 0.35 | AU | X090-27 | 7-1452665-2 | 967067-2 |
