Connector End View - X086 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

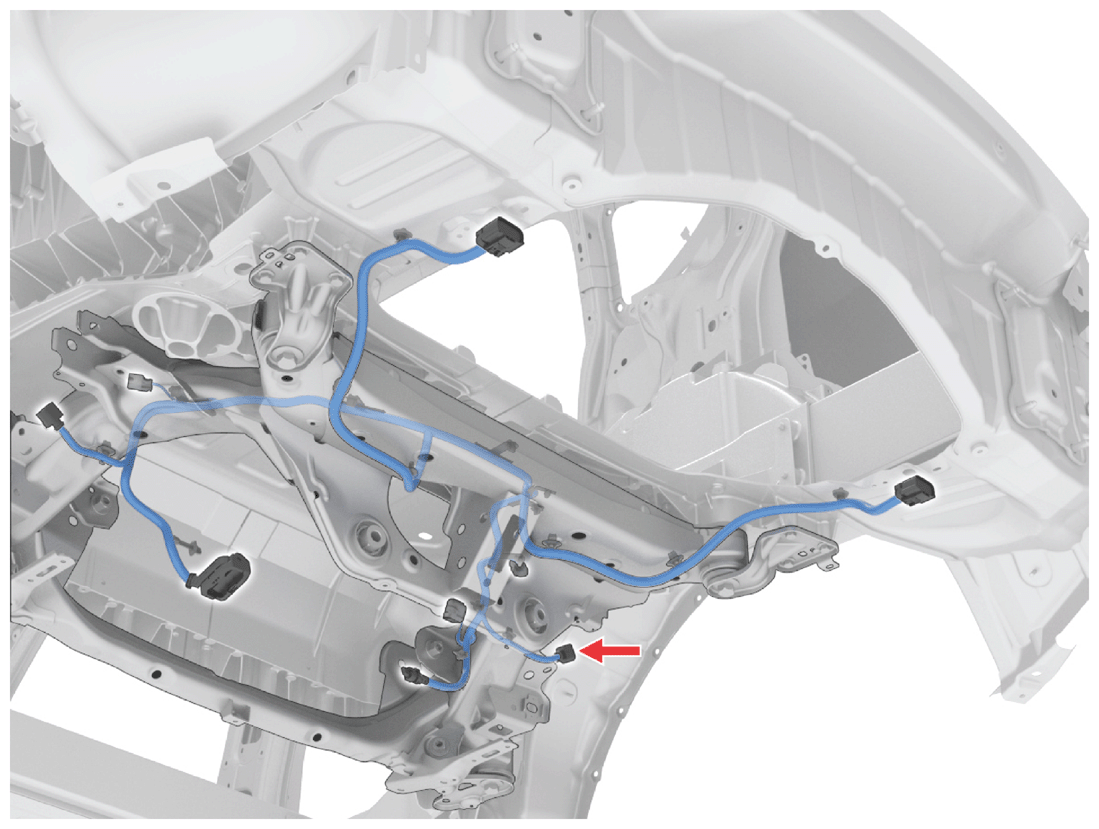

Fig 1: Connector Component Location - X086 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: FEP 42511400
Color: BK

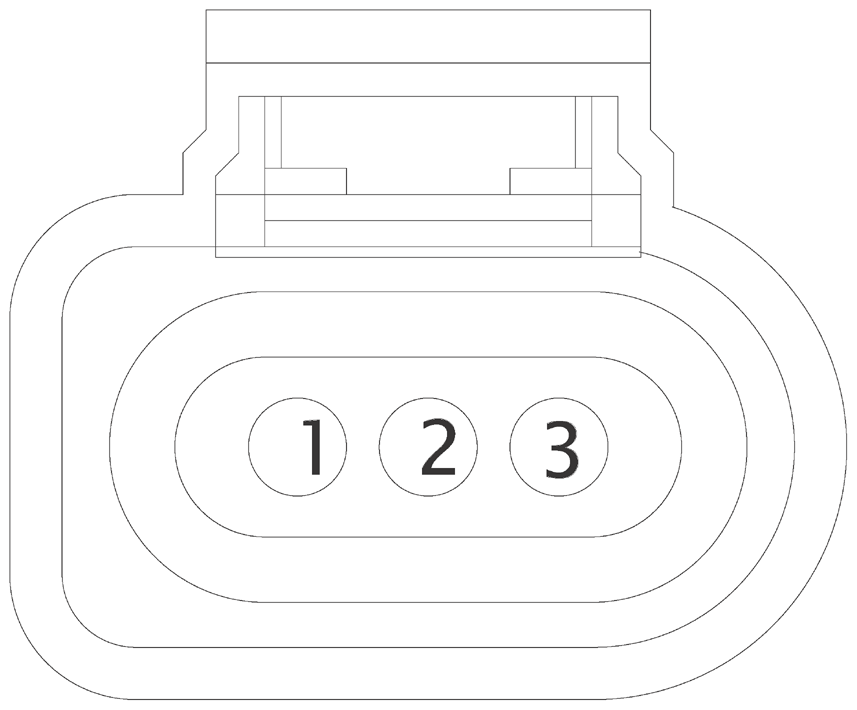

Fig 2: Connector End View - X086 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | GN | 0.35 | AU | X952F-13 | 1564324-2 |
| 2 | YE | 0.35 | AU | X952F-12 | 1564324-2 |
| 3 | BN | 0.35 | AU | X952F-11 | 1564324-2 |
