Connector End View - X083 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:
Fig 1: Connector Component Location - X083 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: FEP 42511700
Color: BK

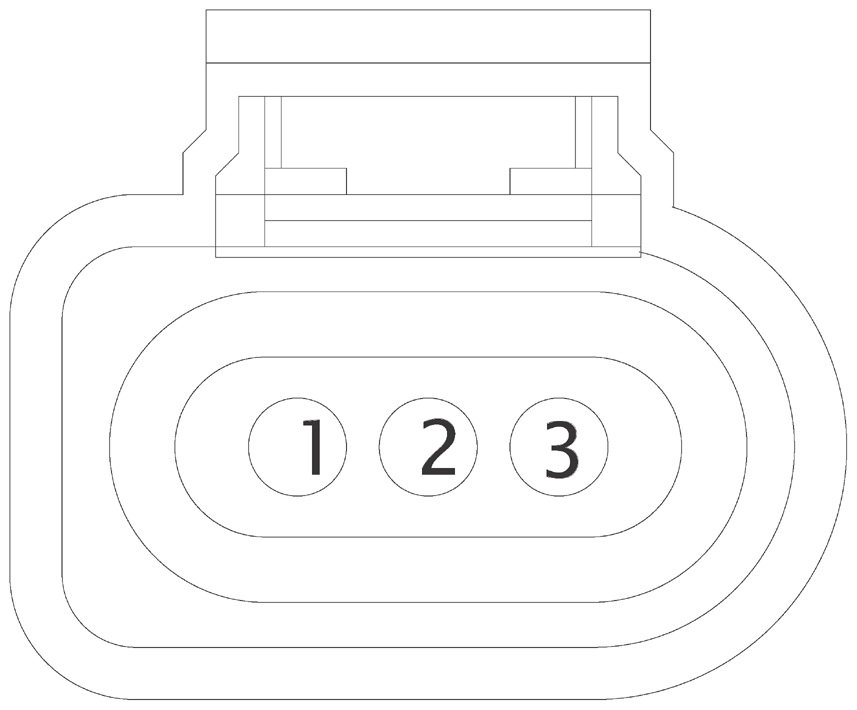

Fig 2: Connector End View - X083 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | BN | 0.35 | AU | X037-9 | 1564324-2 | 964971-1 |
| 2 | BU | 0.35 | AU | X037-23 | 1564324-2 | 964971-1 |
| 3 | GY | 0.35 | AU | X037-22 | 1564324-2 | 964971-1 |
