Connector End View - X057 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

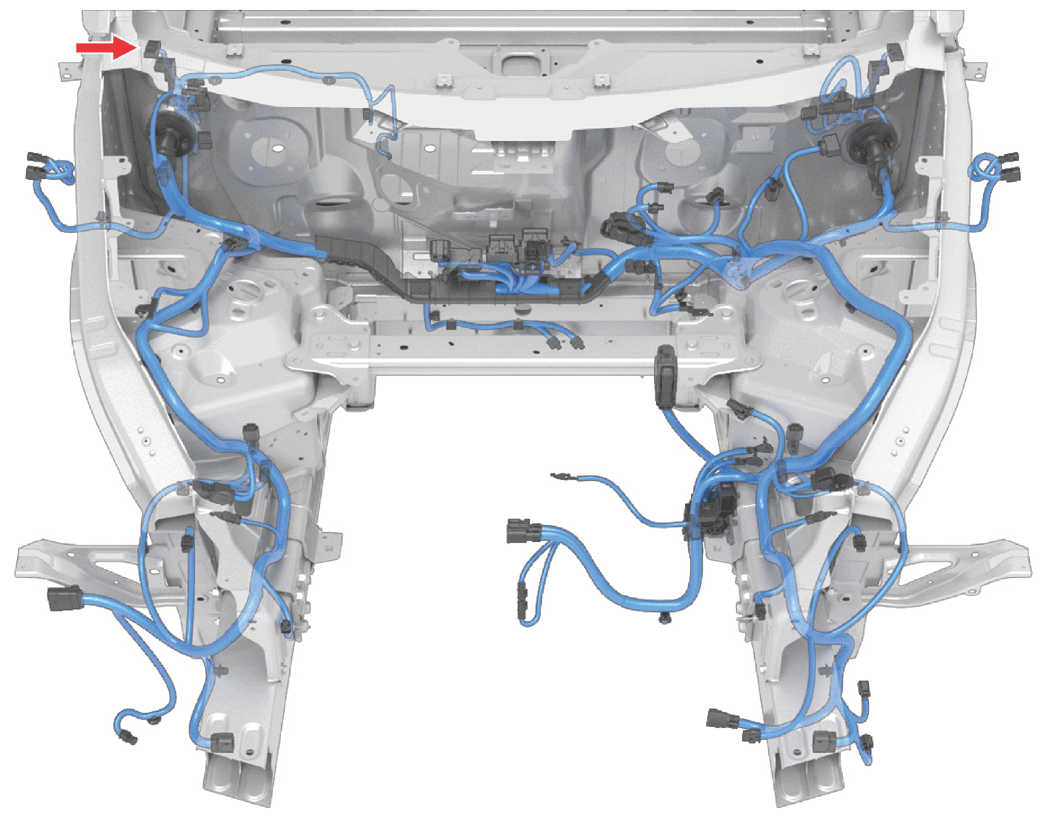

Fig 1: Connector Component Location - X057 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: YAZAKI 7287-1918-90

Color: BU

Fig 2: Connector End View - X057 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X057-13	8240-0215
2	WH	0.35	SN	X010-21	8100-3625
3	BN	0.35	SN	X901M-2	8100-3625
4	BU	0.35	SN	X901M-3	8100-3625
5	VT	0.35	SN	X010-68	8100-3625
6	YE	0.35	SN	X901M-15	8100-3625
7	GN	0.35	SN	X010-65	8100-3625
8	BU	0.13	SN	X037-17	8240-0182
9	RD	0.13	SN	X037-16	8240-0182
10	WH	0.13	SN	X170A-7	8240-0182
11	BN	0.13	SN	X170A-8	8240-0182
12	VT	0.35	SN	X037-28	8100-3625
13	RD	0.35	SN	X057-1	8100-3625
14	TN	1.00	SN	X918F-1	8240-0213
15
16	VT	0.35	SN	X901M-7	8100-3625
17	GN	0.35	SN	X901M-4	8100-3625
18	WH	0.35	SN	X901M-5	8100-3625
19	GY	0.35	SN	X901M-6	8100-3625
20	BK	0.50	SN	X905F-10	8100-3625
21	RD	0.50	SN	X905F-9	8100-3625
22	GN	0.13	SN	X121A-12	8240-0182
23	BU	0.13	SN	X121A-11	8240-0182
24	GN	0.35	SN	X121A-2	8100-3625
25	GY	0.35	SN	X121A-1	8100-3625
26	RD	0.35	SN	X901M-10	8240-0215
