Connector End View - X051 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

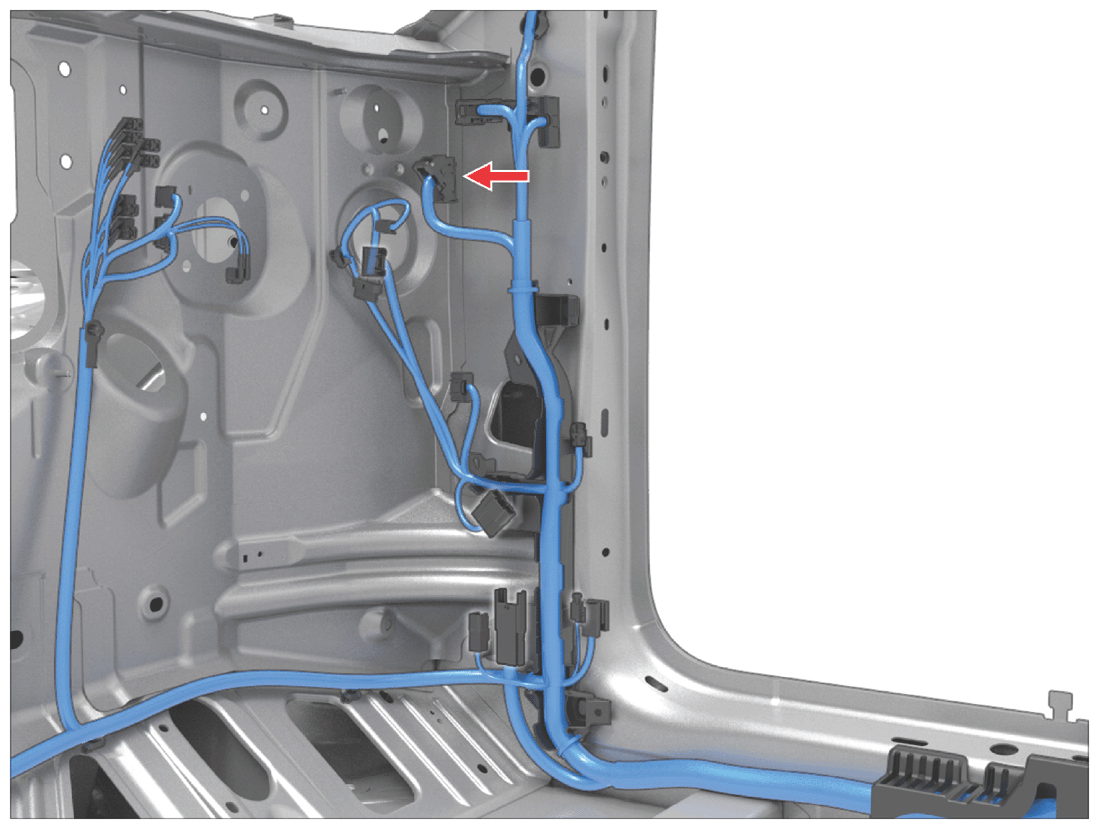

Fig 1: Connector Component Location - X051 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: SUMITOMO 6098-8975

Color: GY

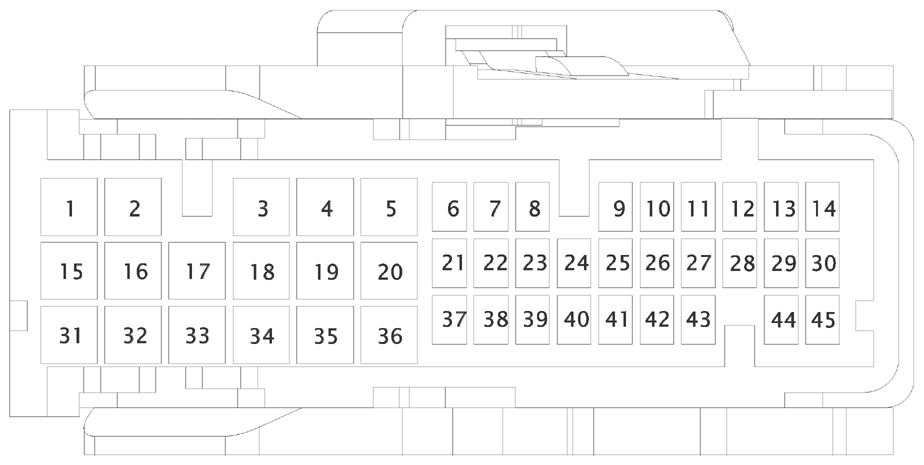

Fig 2: Connector End View - X051 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	VT	1.50	SN	X926M-2	8240-0214
2	WH	1.50	SN	X926M-1	8240-0214
3	RD	1.50	SN	X952M-10	8240-0214
4	GN	1.50	SN	X163-1	8240-0214
5	BK	1.50	SN	X163-2	8240-0214
6	YE	0.35	SN	X926M-3	8100-3625
7	VT	0.13	SN	X962M-7	8240-0182
8	YE	0.35	SN	X954M-22	8100-3625
9	BU	0.35	SN	X954M-2	8100-3625
10
11	GY	0.35	SN	X926M-17	8100-3625
12	GN	0.13	SN	X962M-8	8240-0182
13	YE	0.35	SN	X179-2	8100-3625
14	GY	0.35	SN	X935F-30	8100-3625
15	BU	2.00	SN	X171A-10	8240-0214
16	RD	2.00	SN	X171A-9	8240-0214
17	BN	0.50	SN	X942F-1	8240-0215
18
19	WH	0.50	SN	X171A-14	8240-0215
20	TN	1.00	SN	X171A-14	8240-0213
21	BN	0.35	SN	X926M-14	8100-3625
22	TN	0.35	SN	X926M-4	8100-3625
23	RD	0.35	SN	X954M-21	8100-3625
24	WH	0.35	SN	X954M-1	8100-3625
25	VT	0.35	SN	X926M-7	8100-3625
26	YE	0.35	SN	X962M-1	8100-3625
27	TN	0.35	SN	X926M-15	8100-3625
28
29	GN	0.35	SN	X179-3	8100-3625
30	TN	0.35	SN	X935F-31	8100-3625
31	VT	0.75	SN	X171A-7	8240-0213
32	YE	0.75	SN	X171A-8	8240-0213
33	BK	0.75	SN	X171A-3	8240-0213
34	TN	0.75	SN	X171A-4	8240-0213
35	RD	0.50	SN	X171A-13	8240-0215
36	RD	1.00	SN	X171A-13	8240-0213
37	YE	0.35	SN	X935F-43	8100-3625
38	BN	0.35	SN	X954M-12	8100-3625
39
40	GN	0.35	SN	X942F-11	8100-3625
41	RD	0.35	SN	X954M-18	8100-3625
42	GN	0.50	SN	X098-12	8100-3625
43	RD	0.50	SN	X935F-7	8100-3625
44	BK	0.35	SN	X949M-8	8100-3625
45	RD	0.35	SN	X949M-1	8100-3625
