Connector End View - X038 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

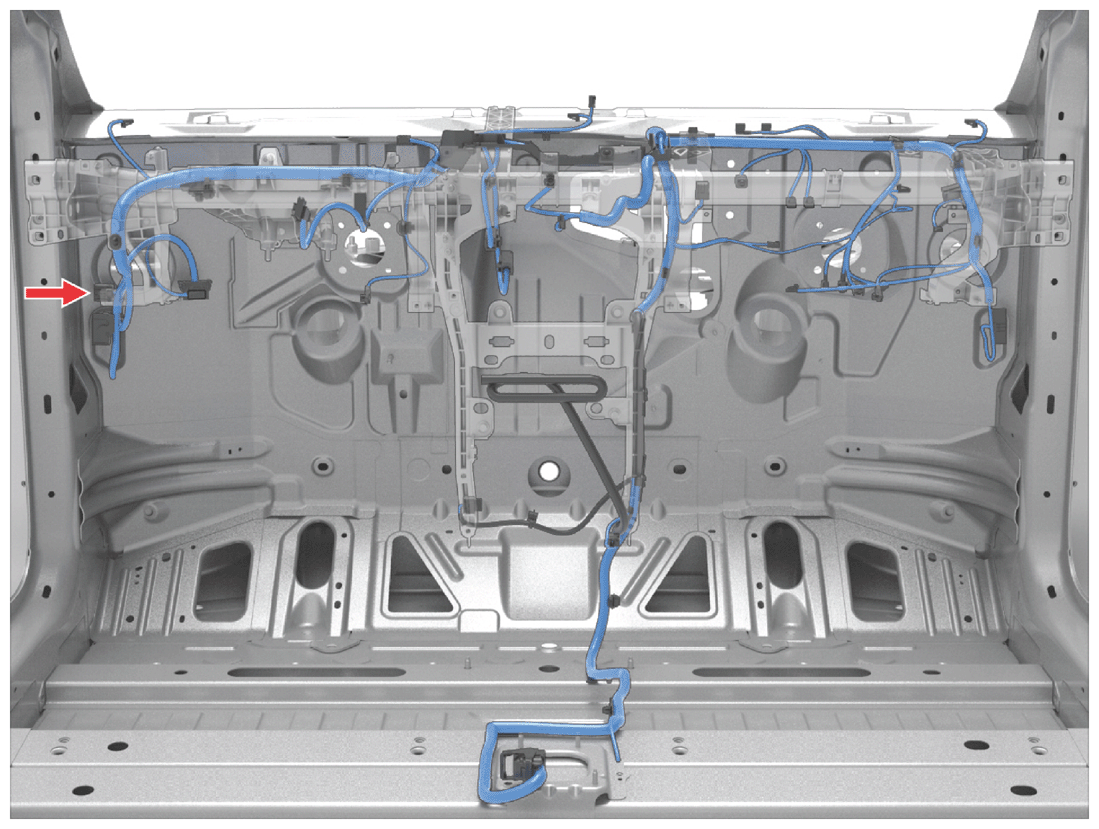

Fig 1: Connector Component Location - X038 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: YAZAKI 7283-6469-40
Color: GY

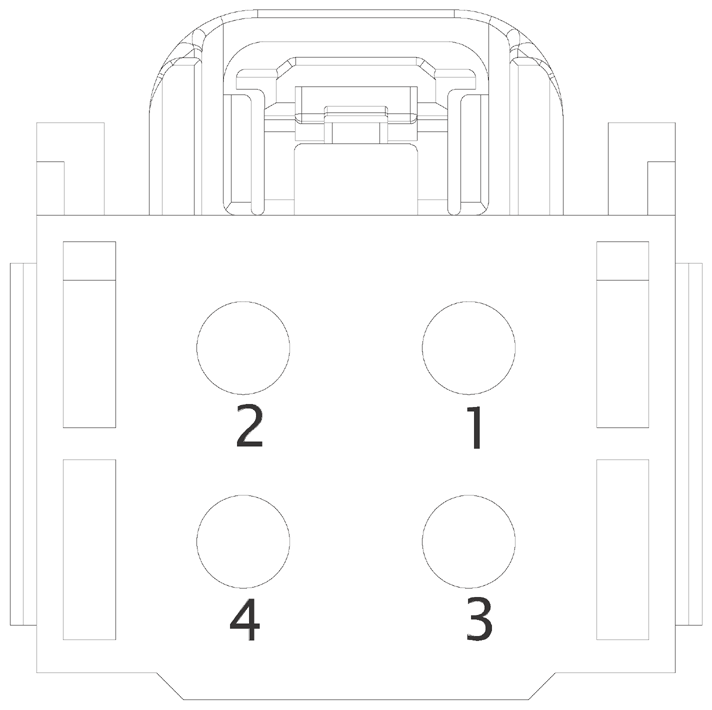

Fig 2: Connector End View - X038 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 5.00 | SN | X536-4 | 7116-4124-02 |
| 2 | BK | 5.00 | SN | X536-2 | 7116-4124-02 |
| 3 | SI | 0.50 | |||
| 4 | WH | 5.00 | SN | X536-4 | 7116-4124-02 |
