Connector End View - X033B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

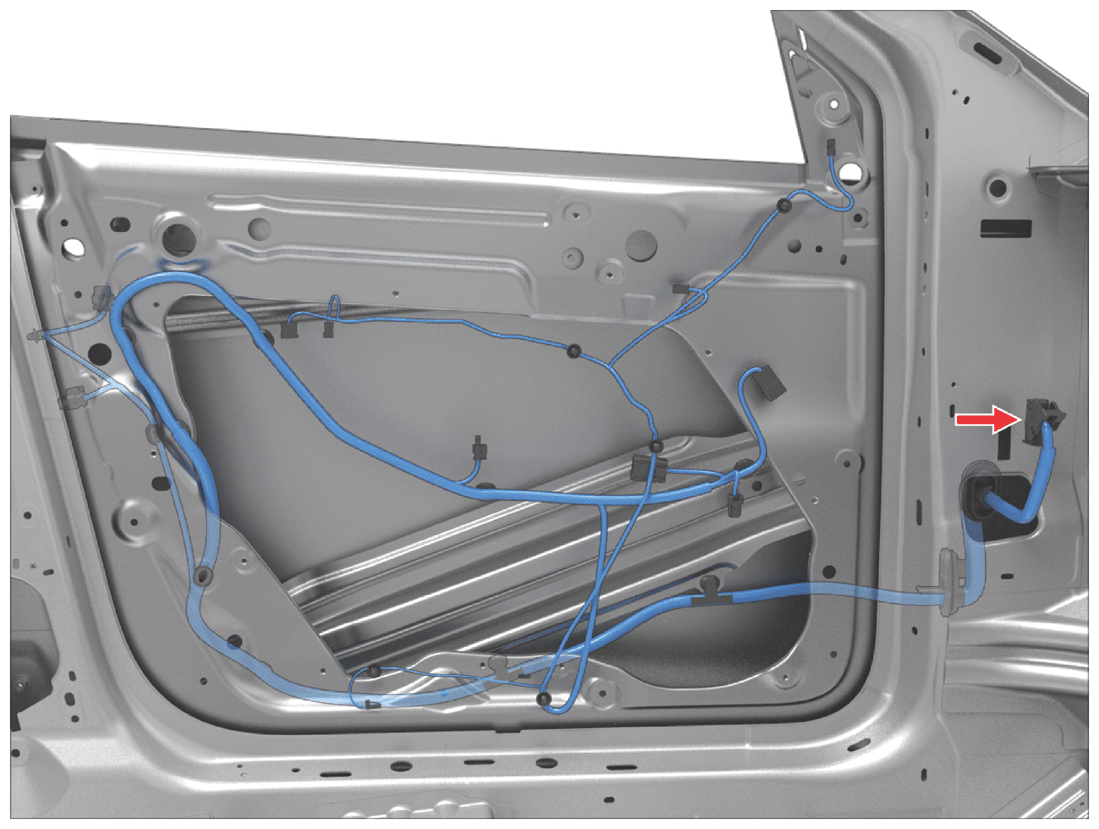

Fig 1: Connector Component Location - X033B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-8956
Color: WH
Fig 2: Connector End View - X033B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X376-1 | 8100-3625 |
| 2 | BN | 0.13 | SN | X376-14 | 8240-0182 |
| 3 | GY | 0.50 | SN | X380-3 | 8100-3625 |
| 4 | |||||
| 5 | |||||
| 6 | WH | 0.50 | SN | X380-4 | 8100-3625 |
| 7 | |||||
| 8 | RD | 0.35 | SN | X370-1 | 8100-3625 |
