Connector End View - X031 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

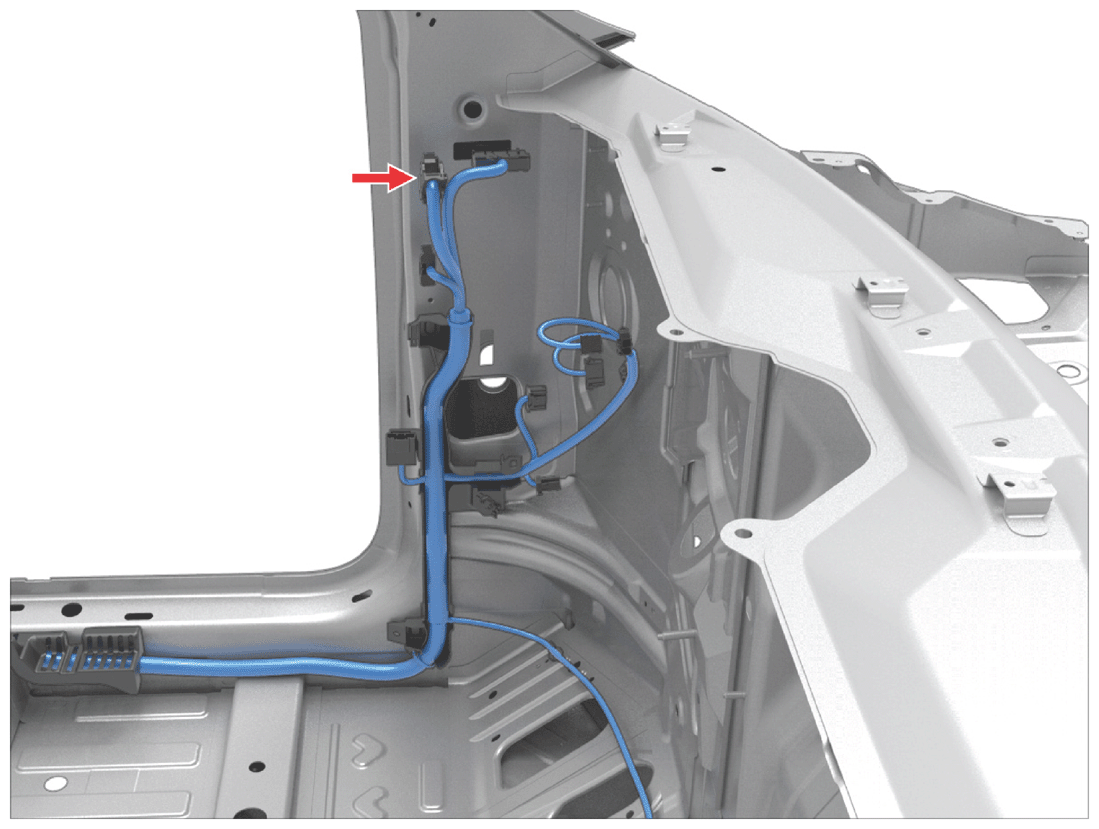

Fig 1: Connector Component Location - X031 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: SUMITOMO 6098-8975

Color: GY

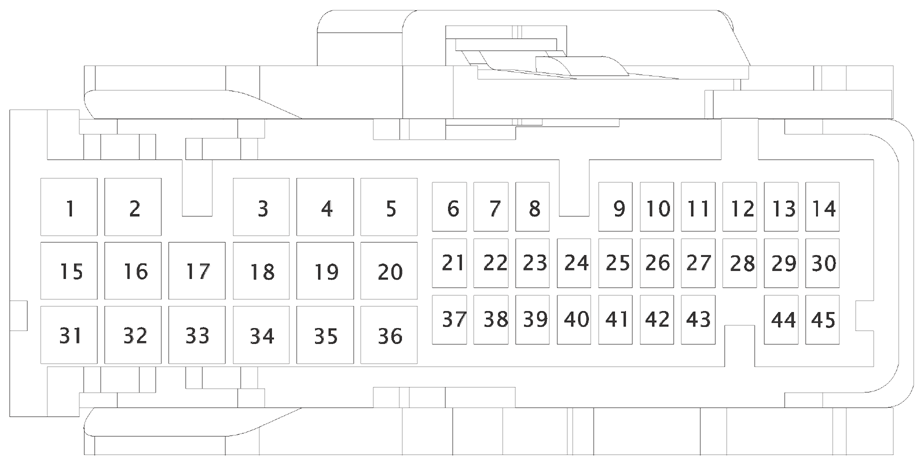

Fig 2: Connector End View - X031 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GY	1.50	SN	X924M-2	8240-0214
2	RD	1.50	SN	X162-1	8240-0214
3	BU	2.00	SN	X930F-1	8240-0214
4	GY	0.50	SN	X924M-10	8240-0215
5	YE	2.00	SN	X930F-15	8240-0214
6	BN	0.35	SN	X943F-19	8100-3625
7	YE	0.35	SN	X924M-3	8100-3625
8	TN	0.35	SN	X924M-4	8100-3625
9
10	YE	0.35	SN	X270-2	8100-3625
11	RD	0.35	SN	X270-3	8100-3625
12	GY	0.35	SN	X270-5	8100-3625
13	WH	0.35	SN	X950M-4	8100-3625
14	GN	0.35	SN	X950M-5	8100-3625
15	TN	1.50	SN	X924M-1	8240-0214
16	GN	0.35	SN	X943F-5	8240-0215
17	BK	1.50	SN	X162-2	8240-0214
18	BN	2.00	SN	X930F-26	8240-0214
19	WH	0.50	SN	X924M-9	8240-0215
20
21	VT	0.35	SN	X950M-10	8100-3625
22	GN	0.35	SN	X930F-6	8100-3625
23	WH	0.35	SN	X924M-14	8100-3625
24	GY	0.35	SN	X924M-7	8100-3625
25	RD	0.35	SN	X935M-54	8100-3625
26	BU	0.35	SN		8100-3625
27	WH	0.35	SN	X943F-16	8100-3625
28	YE	0.35	SN	X943F-13	8100-3625
29	BU	0.35	SN	X909F-16	8100-3625
30	VT	0.35	SN	X909F-17	8100-3625
31	BU	2.00	SN	X353-8	8240-0214
32	VT	2.00	SN	X353-5	8240-0214
33	BU	2.00	SN	X935M-2	8240-0214
34	WH	1.00	SN	X935M-1	8240-0213
35	VT	0.50	SN	X935M-4	8240-0215
36	BK	0.50	SN	X935M-3	8240-0215
37
38
39	BK	0.35	SN	X680-3	8100-3625
40
41
42	TN	0.35	SN	X935M-31	8100-3625
43	GY	0.35	SN	X935M-30	8100-3625
44	RD	0.35	SN	X201-72	8100-3625
45	WH	0.35	SN	X201-71	8100-3625
