Connector End View - X011 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

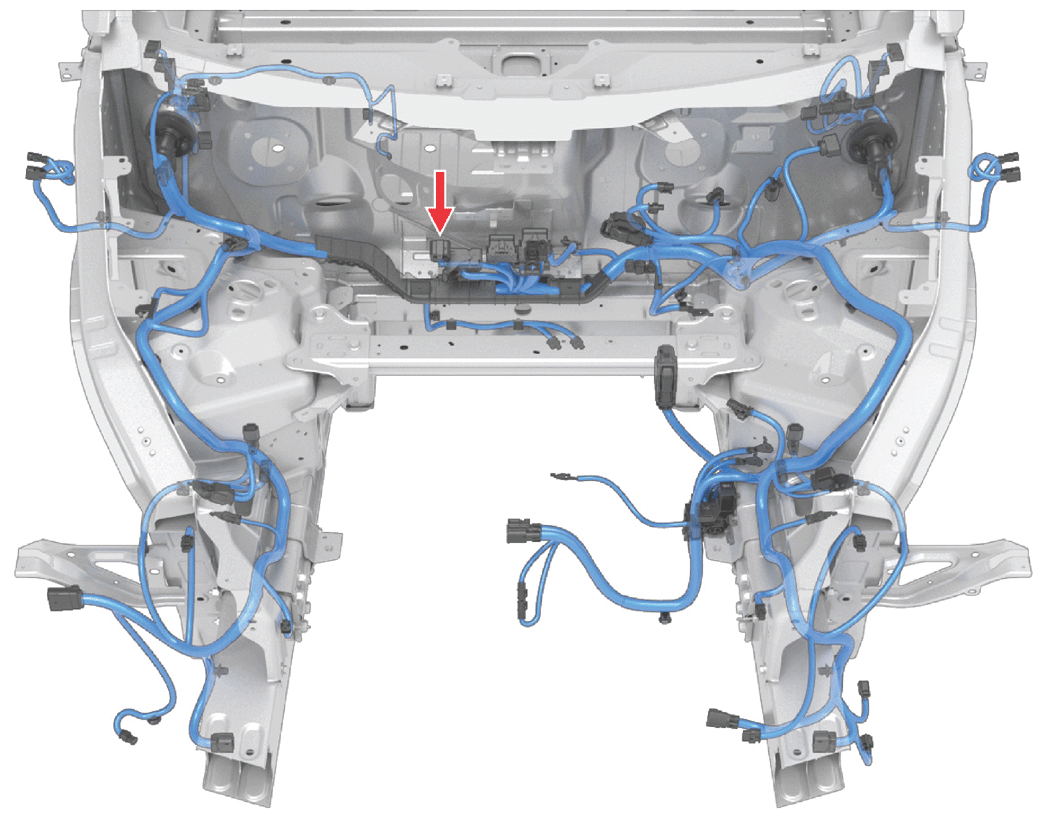

Fig 1: Connector Component Location - X011 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 35367400
Color: BK

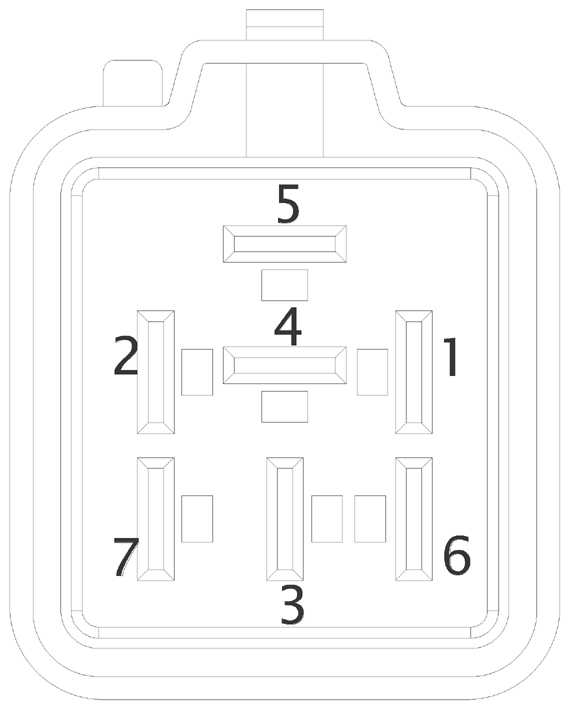

Fig 2: Connector End View - X011 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | BU | 5.00 | SN | X525-3 | 10779624 | 12186636 |
| 2 | RD | 5.00 | SN | X525-1 | 10779624 | 12186636 |
| 3 | ||||||
| 4 | VT | 0.50 | SN | 12186637 | 10788269 | |
| 5 | YE | 5.00 | SN | X525-2 | 10779624 | 12186636 |
| 6 | WH | 2.00 | SN | 15340695 | 15443869 | |
| 7 | BN | 4 | SN | X151-1 | 10748126 | 12186636 |
