Connector End View - X010 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

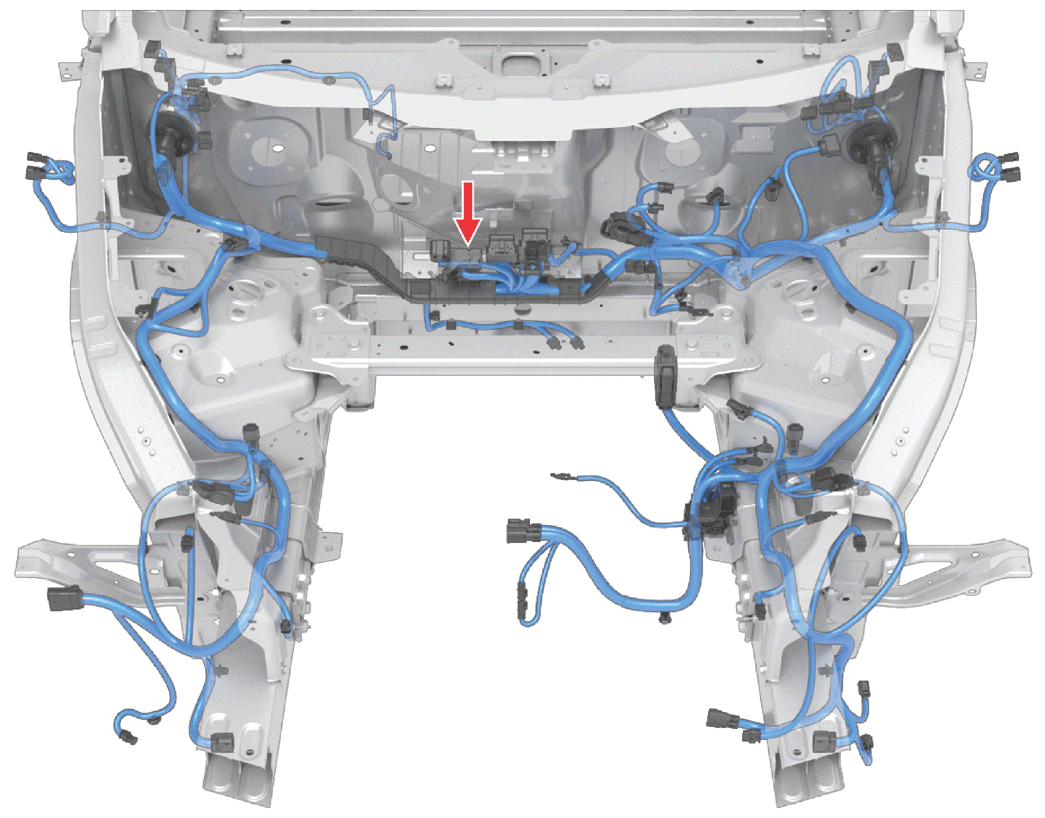

Fig 1: Connector Component Location - X010 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: MOLEX 34992-0001

Color: BK

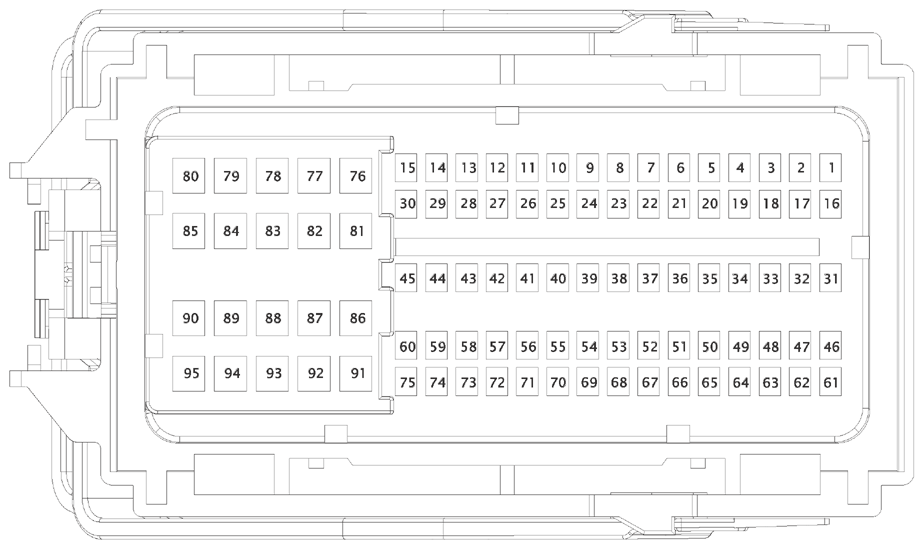

Fig 2: Connector End View - X010 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Not Serviceable

Cavity	Color	Size	Plate	Destination	Terminal	Seal
1	GY	0.35	SN	X906F-7	2035334-6	MAT-120-260
2	RD	0.35	SN	X485-1	2035334-6	MAT-120-260
3	GY	0.35	SN	X911F-11	2035334-6	MAT-120-260
4	GN	0.35	SN	X911F-10	2035334-6	MAT-120-260
5	RD	0.35	SN	X901M-12	2035334-6	MAT-120-260
6	YE	0.35	SN	X150A-20	2035334-6	MAT-120-260
7	TN	0.35	SN	X905F-2	2035334-6	MAT-120-260
8	VT	0.35	SN	X901M-11	2035334-6	MAT-120-260
9	TN	0.35	SN	X901M-14	2035334-6	MAT-120-260
10	YE	0.35	SN	X269-1	2035334-6	MAT-120-260
11	GN	0.35	SN	X268-1	2035334-6	MAT-120-260
12	RD	0.35	SN	X120A-5	2035334-6	MAT-120-260
13	BU	0.35	SN	X170A-3	2035334-6	MAT-120-260
14	RD	0.35	SN	X151-26	2035334-6	MAT-120-260
15	BU	0.35	SN	X909M-16	2035334-6	MAT-120-260
16	WH	0.35	SN	X192A-1	2035334-6	MAT-120-260
17	BN	0.35	SN	X193A-1	2035334-6	MAT-120-260
18	VT	0.35	SN	X037-6	2035334-6	MAT-120-260
19	WH	0.35	SN	X911F-2	2035334-6	MAT-120-260
20	BU	0.35	SN	X009-2	2035334-6	MAT-120-260
21	WH	0.35	SN	X057-2	2035334-6	MAT-120-260
22
23	GY	0.35	SN	X901M-13	2035334-6	MAT-120-260
24
25
26
27	WH	0.35	SN	X120A-6	2035334-6	MAT-120-260
28	GY	0.35	SN	X170-9	2035334-6	MAT-120-260
29	WH	0.35	SN	X151-14	2035334-6	MAT-120-260
30	VT	0.35	SN	X909M-17	2035334-6	MAT-120-260
31	BU	0.35	SN	X009-1	2035334-6	MAT-120-260
32
33	GN	0.35	SN	X037-5	2035334-6	MAT-120-260
34	GY	0.35	SN	X911F-3	2035334-6	MAT-120-260
35
36
37
38	RD	0.35	SN	X906F-8	2035334-6	MAT-120-260
39
40	GN	0.35	SN	X192A-2	2035334-6	MAT-120-260
41	BN	0.35	SN	X192A-3	2035334-6	MAT-120-260
42
43
44
45	RD	0.35	SN	X300A-1	2035334-6	MAT-120-260
46
47	GY	0.35	SN		2035334-6	MAT-120-260
48	VT	0.35	SN	X906F-15	2035334-6	MAT-120-260
49
50	BU	0.50	SN	X159A-2	2035334-1	MAT-120-260
51
52	BU	0.35	SN	X906F-16	2035334-6	MAT-120-260
53	GN	0.50	SN	X302-B	2035334-1	MAT-120-260
54	GY	0.35	SN	X150A-18	2035334-6	MAT-120-260
55	RD	0.35	SN	X150-10	2035334-6	MAT-120-260
56	YE	0.35	SN	X906F-14	2035334-6	MAT-120-260
57
58	GN	0.35	SN	X485-3	2035334-6	MAT-120-260
59	TN	0.35	SN	X906F-13	2035334-6	MAT-120-260
60
61	VT	0.35	SN	X906F-3	2035334-6	MAT-120-260
62	YE	0.35	SN	X906F-1	2035334-6	MAT-120-260
63	RD	0.35	SN	X906F-2	2035334-6	MAT-120-260
64	YE	0.35	SN	X906F-12	2035334-6	MAT-120-260
65	GN	0.35	SN	X057-7	2035334-6	MAT-120-260
66
67
68	VT	0.35	SN	X057-5	2035334-6	MAT-120-260
69	BU	0.35	SN	X911F-4	2035334-6	MAT-120-260
70	WH	0.35	SN	X911F-5	2035334-6	MAT-120-260
71
72	GN	0.35	SN	X261-2	2035334-6	MAT-120-260
73
74
75	BU	0.35	SN	X260-2	2035334-6	MAT-120-260
76	WH	2.00	SN	X170A-5	33012-3001	MAT-120-260
77	BN	1.00	SN	X261-1	33012-3002	MAT-120-260
78	GN	1.00	SN	X260-1	33012-3002	MAT-120-260
79	VT	1.50	SN	X911F-1	33012-3001	MAT-120-260
80	BU	0.75	SN	X301-2	33012-3002	MAT-120-260
81
82	BK	0.35	SN	X906F-11	33012-3004	MAT-120-260
83	WH	0.35	SN	X906F-10	33012-3004	MAT-120-260
84	RD	1.00	SN	X901M-1	33012-3002	MAT-120-260
85	WH	1.00	SN	X901M-8	33012-3002	MAT-120-260
86
87
88
89
90	YE	0.75	SN	X304A-1	33012-3002	MAT-120-260
91	YE	1.50	SN	X151-25	33012-3001	MAT-120-260
92	RD	1.50	SN	X071-4	33012-3001	MAT-120-260
93	GN	1.50	SN	X170A-4	33012-3001	MAT-120-260
94	BU	1.00	SN	X199-1	33012-3002	MAT-120-260
95	RD	1.00	SN	X198-1	33012-3002	MAT-120-260
