Connector End View - G026 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

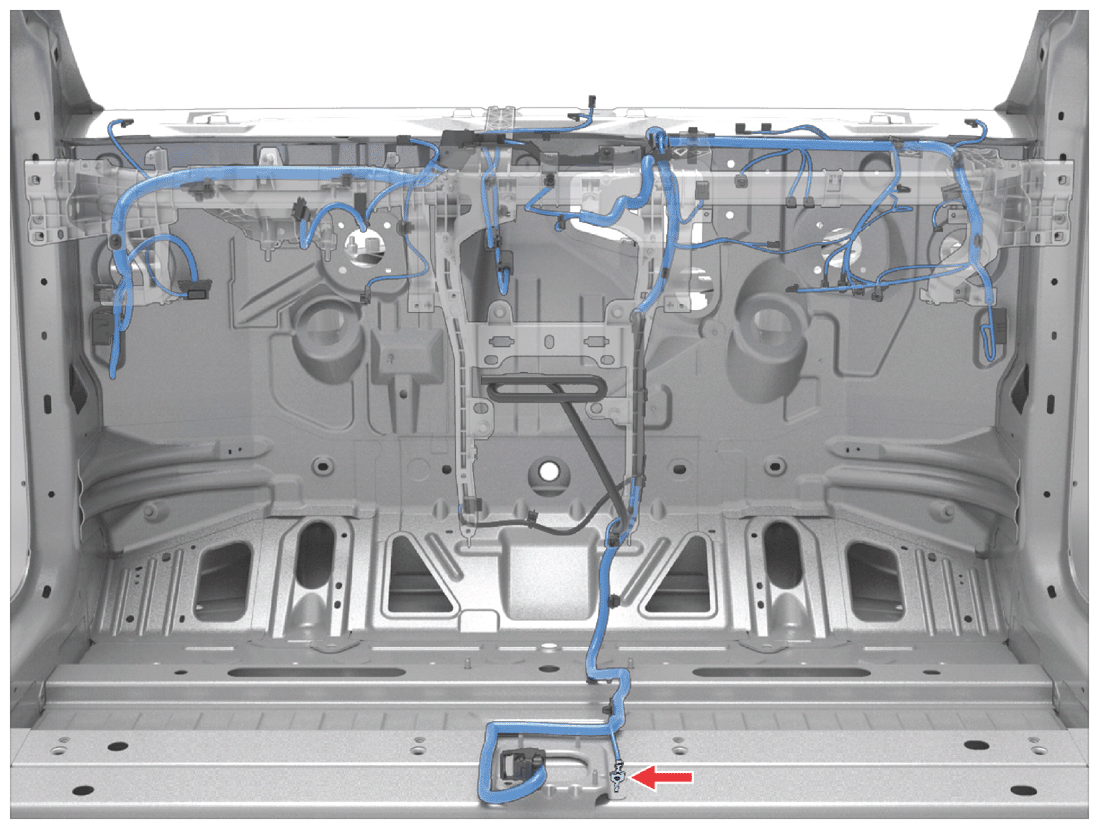

Fig 1: Connector Component Location - G026 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: DELPHI 35037582

Color:

Fig 2: Connector End View - G026 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability:

Cavity	Color	Size	Plate	Destination	Terminal
	BK	3.00	SN	G025-1	35037582
