Wheel Arch Liner - Rear - LH - (Non-Structural Pack) Remove And Replace: Remove

  1. Remove the LH rear wheel. See Wheel (Remove and Install) .
  2. Release the clips (x16) that attach the LH rear wheel arch liner to the vehicle, and then remove the liner from the vehicle

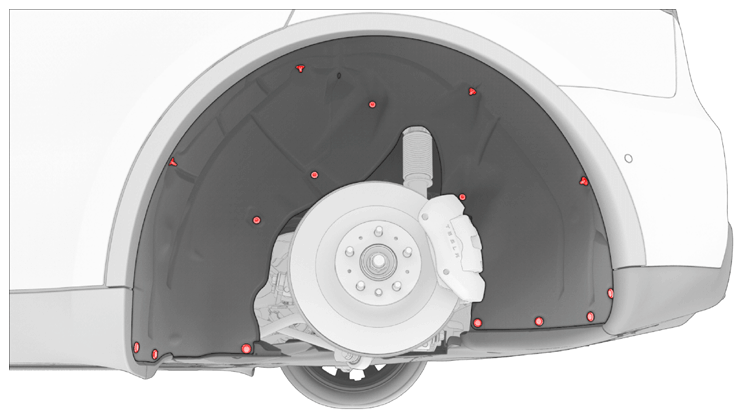

    G14821236Courtesy of TESLA, INC.

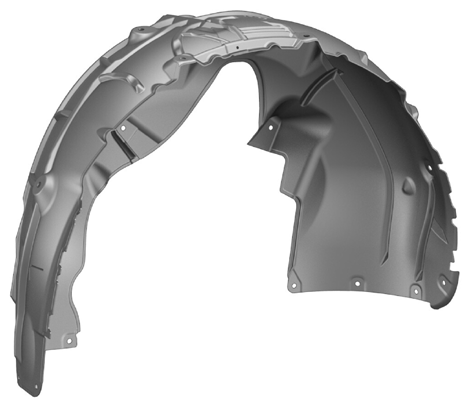

    G14821237Courtesy of TESLA, INC.
