Panel - Cowl Screen - Remove And Replace: Remove

  1. Open the driver's door and fully lower the window.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the LH and RH wiper arms. See Wiper Arms (Remove and Replace) .

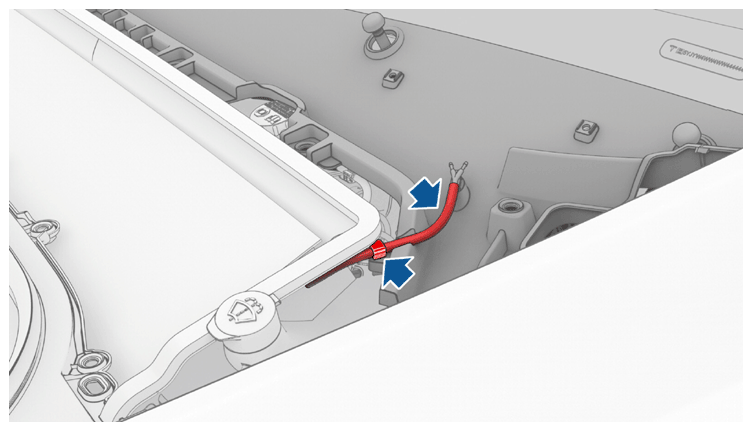

  4. Release the washer pump hose from the Y-tube, and then release the clip that attaches the tube to the cowl screen.
    G14821502Courtesy of TESLA, INC.

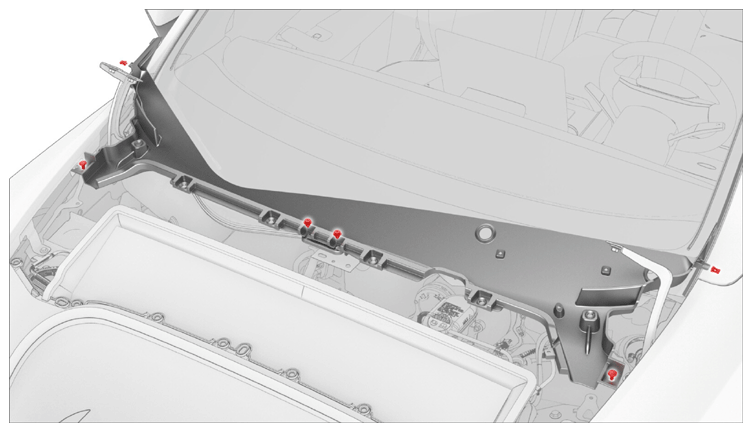

  5. Release the clips that attach the cowl screen panel to the vehicle, and then remove the cowl screen panel from the vehicle.
    G14821503Courtesy of TESLA, INC.
    G14821504Courtesy of TESLA, INC.
