Assembly - Trailer Hitch - Remove And Replace: Install

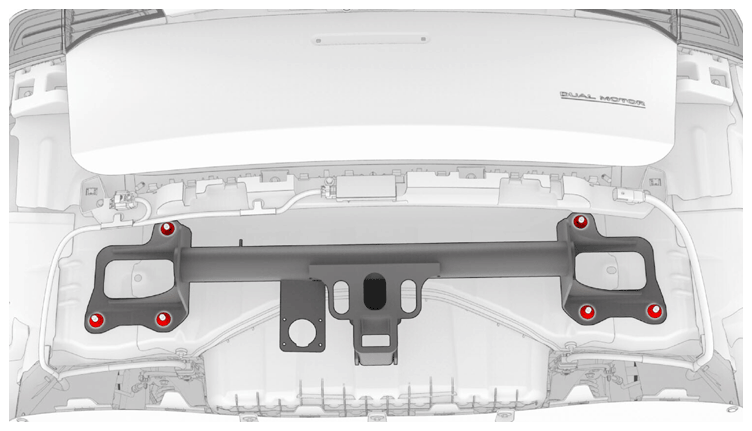

- Maneuver the trailer hitch assembly in place so that the holes are placed over the studs on the body of the vehicle.
Tip: Recommend assistance when performing this step.
- Install the LH nuts (x3) and RH nuts (x3) that attach the trailer hitch assembly to the studs on the body of the vehicle.
62.5 N.m (46.1 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 15 mm, 6-point deep socket
- 6 in extension

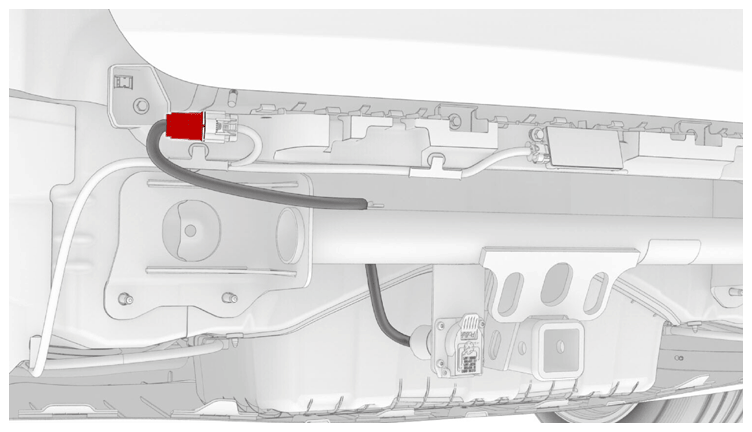

- Connect the trailer hitch assembly electrical connector.
- Install the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .
