Garnish - Fender - Rear - LH - Remove And Replace: Remove

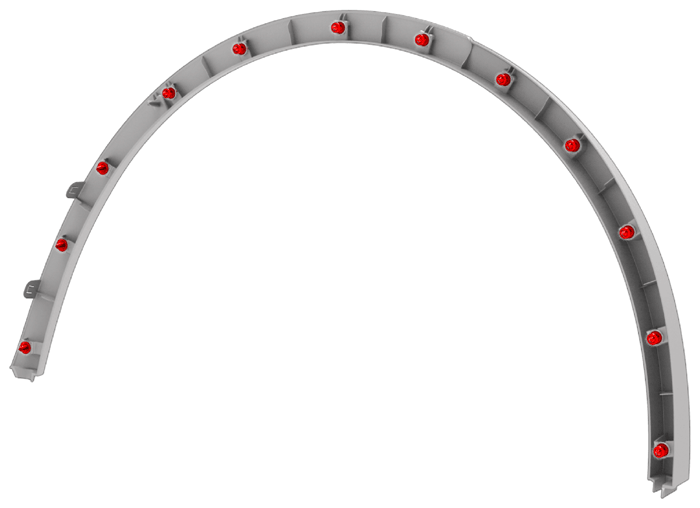

  1. Release the clips (x12) that attach the LH rear fender garnish to the vehicle, and then remove the garnish from the vehicle.

    Tip: Starting from the center of the LH rear fender garnish, carefully pull the garnish away from the vehicle and work outward.

    CAUTION: Be careful not to bend the tabs that attach the rear of the garnish to the rear fascia.
    G14821433Courtesy of TESLA, INC.

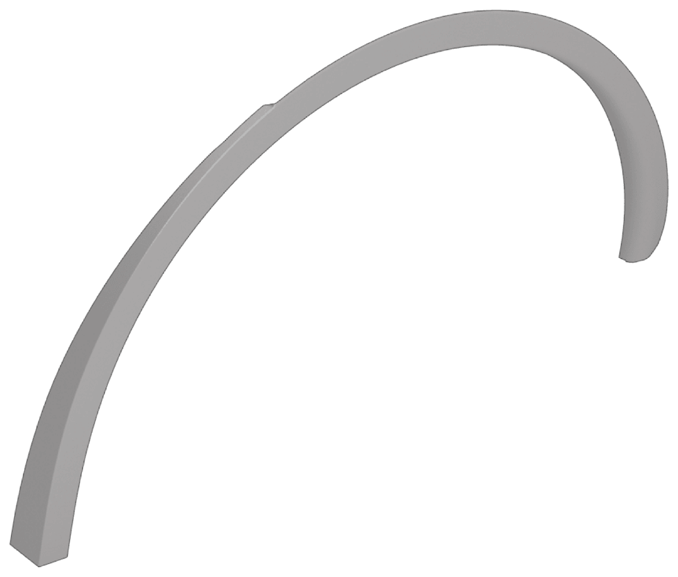

    G14821434Courtesy of TESLA, INC.
