Garnish - Fender - Front - LH - Remove And Replace: Remove
multimedia:A supplement to the article is available.
WARNING:
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

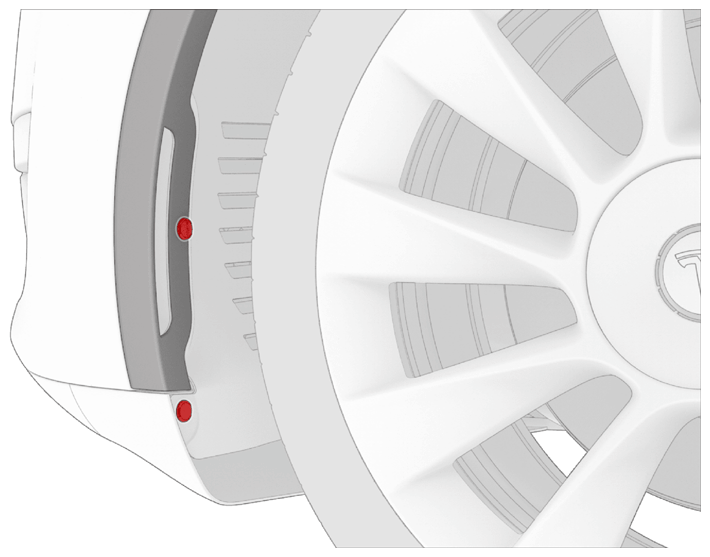

- Release the push clips (2x) that attach the LH front fender garnish to the front fascia.

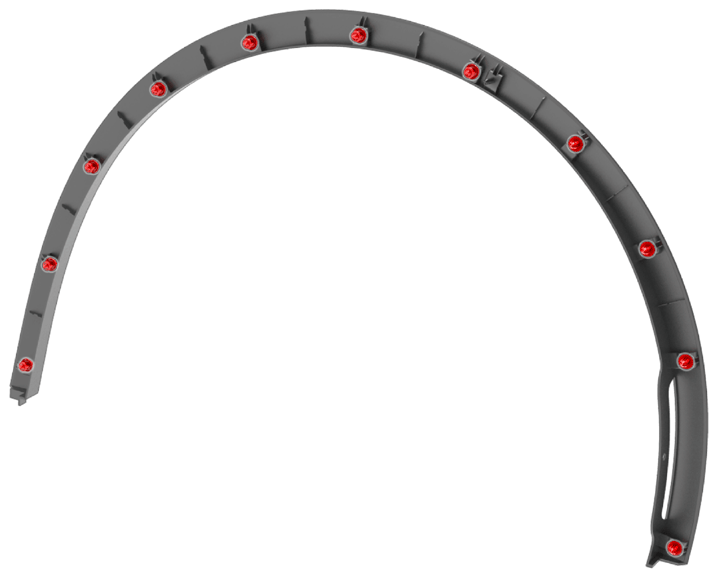

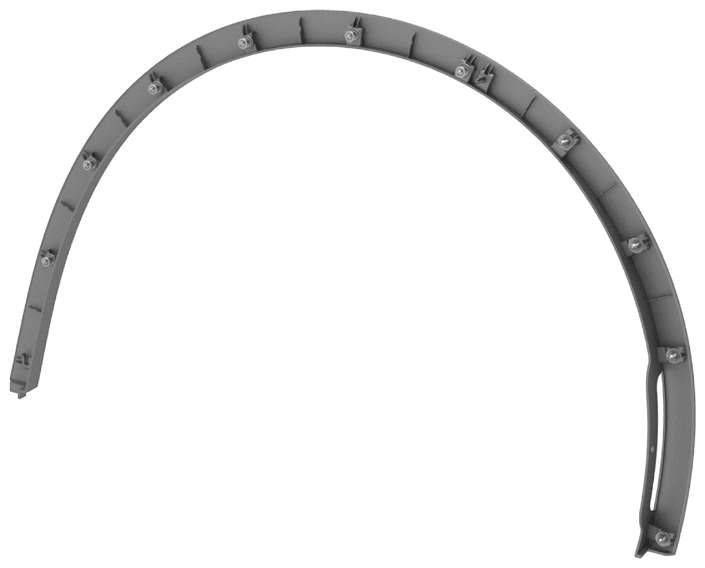

- Release the clips (x11) that attach the LH front fender garnish to the vehicle, and then remove the garnish from the vehicle.
Tip: Starting from the center of the LH front fender garnish, carefully pull the garnish away from the vehicle and work outward.
CAUTION: Be careful not to bend the front tabs that attach the front of the garnish to the front fascia.
