Carrier - Rocker Panel - LH (Structural Pack) - Remove And Replace: Remove

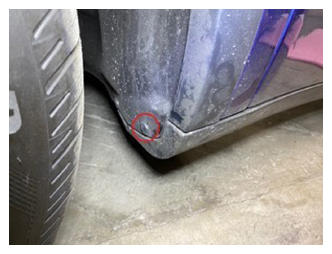

  1. Remove the clips (x2) that attach the LH rocker panel cover to the front and rear wheel arch liners.
    NOTE: Front shown; rear similar
    G14821404Courtesy of TESLA, INC.
  2. Release the clips (x11) and tabs (x11) that attach the LH rocker panel cover to the LH rocket panel carrier.

    Tip: Work a plastic trim tool between the door panel and rocker cover to release the tabs.

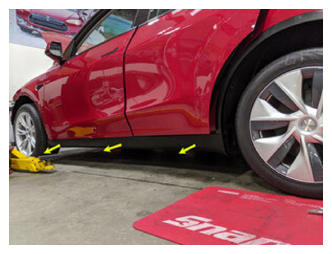

    G14821406Courtesy of TESLA, INC.

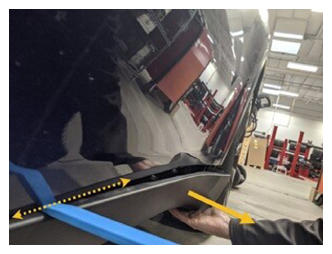

    G14821407Courtesy of TESLA, INC.

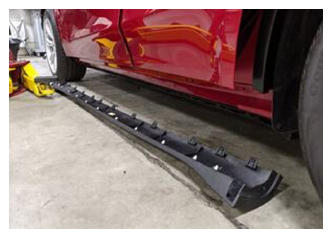

    G14821408Courtesy of TESLA, INC.
  3. Remove the bolts (x3) and clips (x4) that attach the LH rocker panel carrier to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    G14821409Courtesy of TESLA, INC.

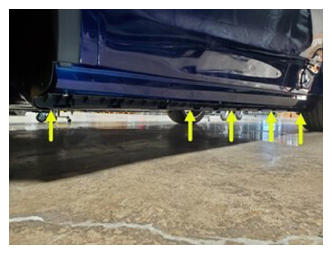

    G14821410Courtesy of TESLA, INC.

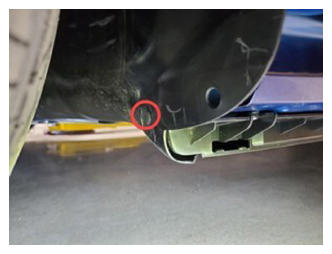

    G14821411Courtesy of TESLA, INC.

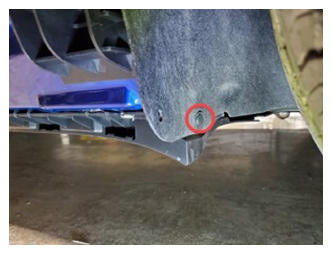

    G14821412Courtesy of TESLA, INC.

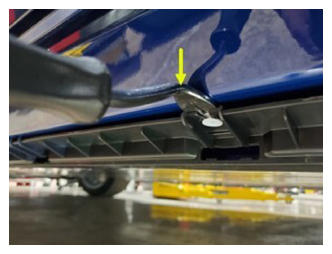

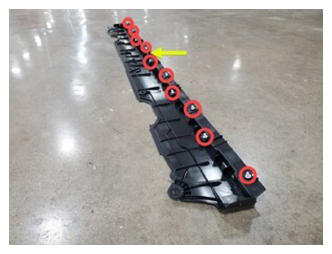

  4. Release the clips (x10) that attach the LH rocker panel carrier to the vehicle, and then remove the carrier from the vehicle.
    CAUTION: Use a pry tool to release the clips and prevent damage to the carrier. Negotiate the carrier around the rear wheel liner, then the front wheel liner.
    G14821413Courtesy of TESLA, INC.

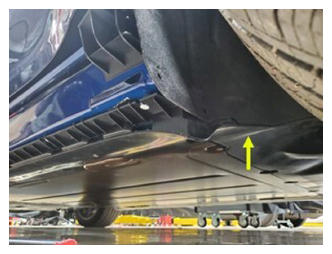

    G14821414Courtesy of TESLA, INC.

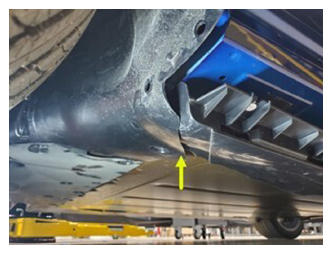

    G14821415Courtesy of TESLA, INC.
    G14821416Courtesy of TESLA, INC.
