Applique - B-Pillar - LH - Remove And Replace: Remove
WARNING:
Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls
> Service
> Camera Calibration
> Clear Calibration
.
- Open the LH front and rear doors and lower the LH front and rear windows.

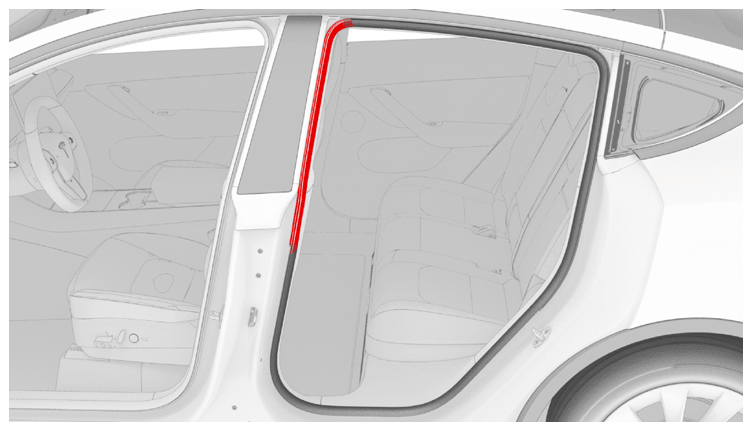

- Release the LH rear primary seal from the B-pillar area.

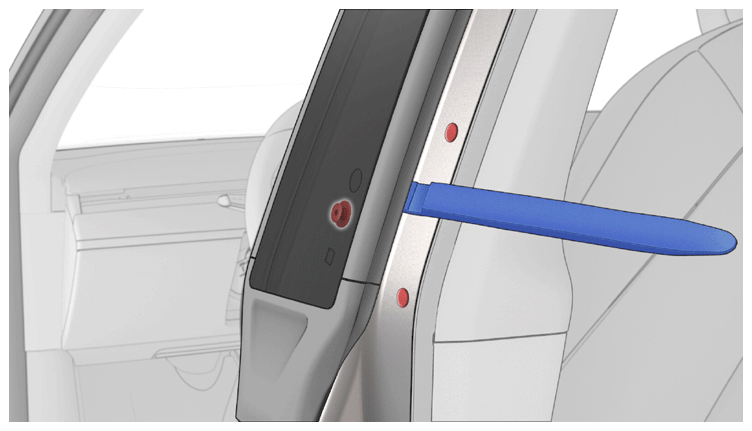

- Release the trim clip that attaches the lower B-pillar applique to the B-pillar.NOTE: Insert the clip prytool between the lower spot welds on the B-pillar, and under the B-pillar applique seal.

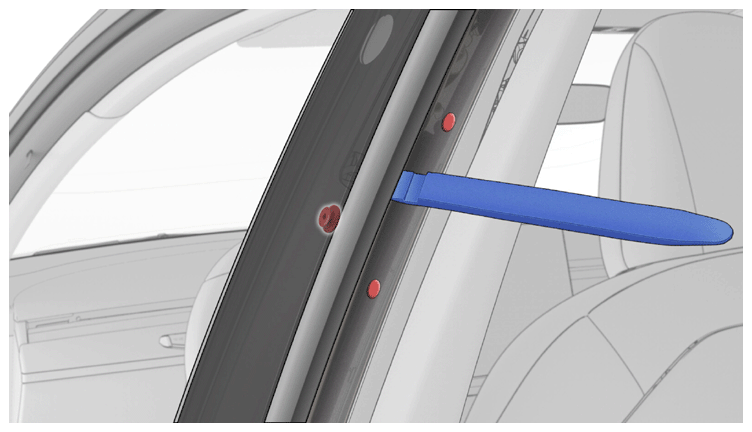

- Release the trim clip that attaches the upper portion of the B-pillar applique to the B-pillar.NOTE: Insert the clip prytool between the upper spot welds on the B-pillar, and under the B-pillar applique seal.

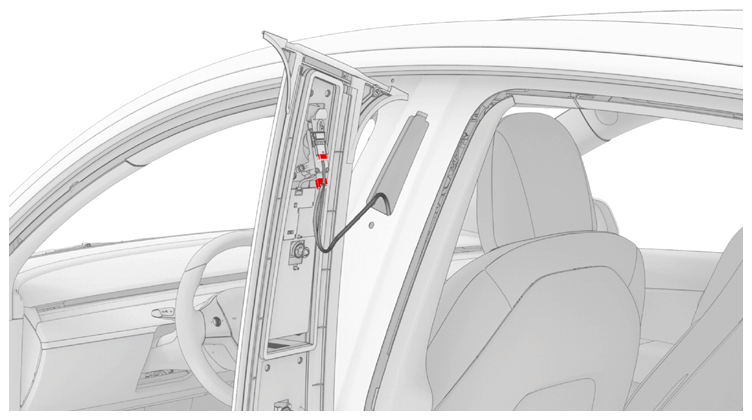

- Slide the B-pillar applique down slightly to release the assembly from the body, and then disconnect the camera connectors from the B-pillar applique.CAUTION: Use caution not to damage the camera connectors.

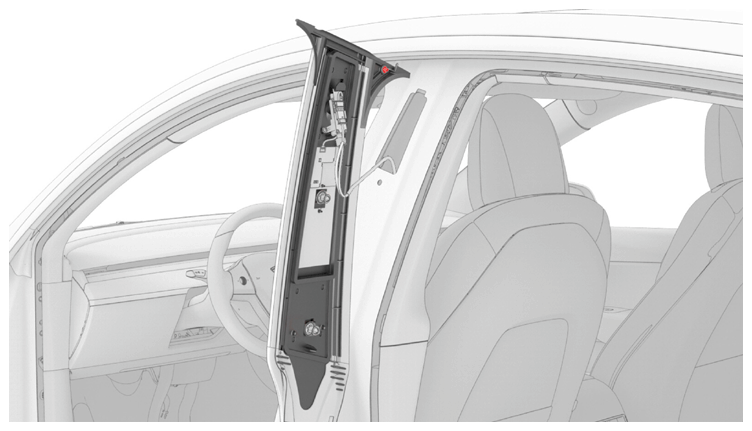

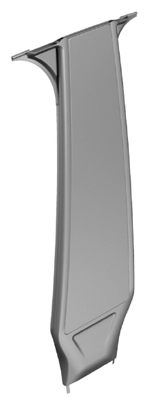

- Release the clip that attaches the B-pillar applique seal to the vehicle, and then remove the applique from the vehicle.CAUTION: Slide the clip prytool underneath the clip to release it from the body. The clip is glued to the seal and will tear if the pry tool is engaged at the seal clip.
