Sill Plate -- Front -- LH - Remove And Replace: Remove

  1. Open the LH front door.
  2. Use IPA wipes to clean around the sill plate.

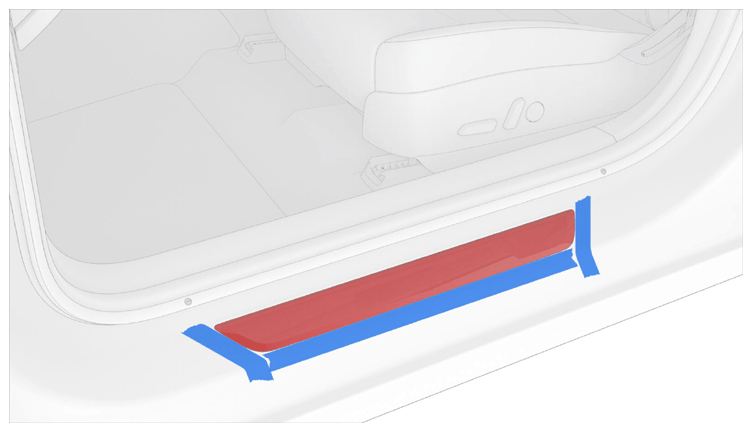

  3. Apply masking tape around the perimeter of the sill plate to mark the installation positioning.
    NOTE: Place the tape as closely around the sill plate as possible.
    G14821285Courtesy of TESLA, INC.

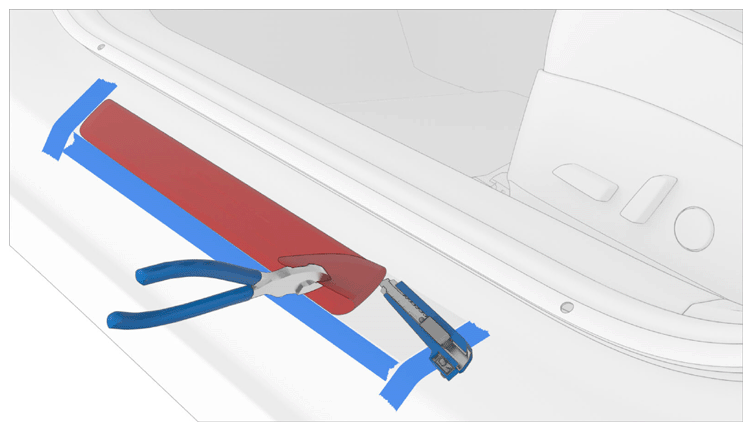

  4. Use a plastic trim tool to carefully pry up and bend the sill plate.
  5. While using pliers to pull up on the sill plate, use a retractable blade to cut through the adhesive.
    WARNING: To reduce the risk of personal injury, wear cut-resistant gloves while performing this operation.
    CAUTION: Be careful not to damage the vehicle trim or body.
    G14821286Courtesy of TESLA, INC.
  6. Use IPA wipes to clean off any remaining adhesive.
