Seal - Header - LH - Remove And Replace: Install

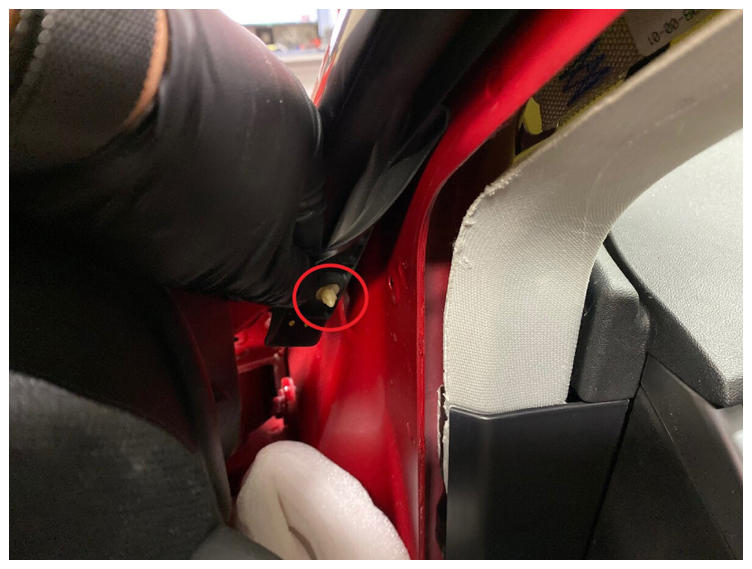

  1. Position the LH header seal onto the vehicle, and then fasten clip that attaches the seal to the LH A-pillar.
    G14821169Courtesy of TESLA, INC.

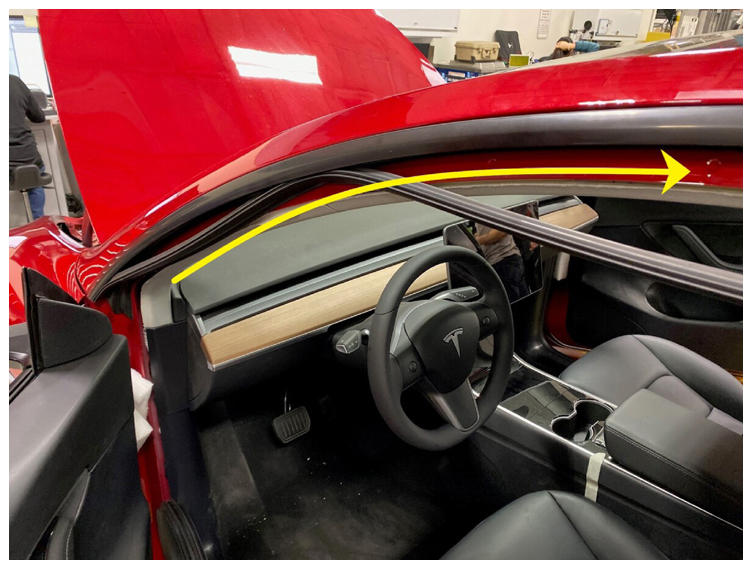

  2. Install the remaining portion of the LH header seal.
    NOTE: Start from the middle A-pillar and work rearward.
    G14821170Courtesy of TESLA, INC.
  3. Install the LH B-pillar applique. See APPLIQUE - B-PILLAR - LH (REMOVE AND REPLACE)
  4. Connect 12V power. See 12V/LV Power (Disconnect and Connect) .
  5. Close the LH doors and lower the LH windows.
