Hinge - Hood - LH - Remove And Replace: Remove

  1. Remove the hood from the vehicle. See HOOD (REMOVE AND INSTALL) .

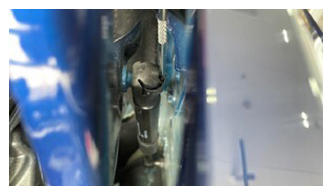

  2. Release the clip that attaches the LH gas strut to the hood hinge, and then remove the strut from the assembly.
    G14820791Courtesy of TESLA, INC.

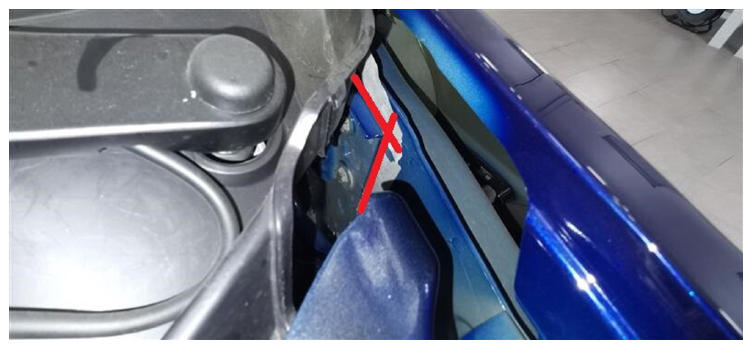

  3. Apply masking tape to the LH hinge location to aid in alignment during install.
    G14820792Courtesy of TESLA, INC.

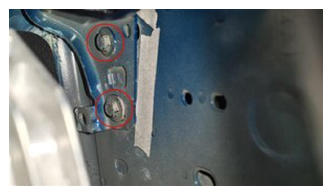

  4. Remove the bolts that attaches the LH hood hinge to the body.

    Tip: Use of the following tool(s) is recommended:

    • 13 mm swivel ball socket
    G14820793Courtesy of TESLA, INC.

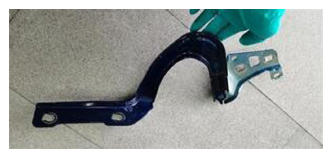

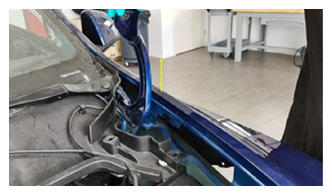

  5. Remove the LH hood hinge from the vehicle.
    G14820794Courtesy of TESLA, INC.
    G14820795Courtesy of TESLA, INC.
