Hinge - Door - Front - Lower - LH - Remove And Replace: Install

Install the new LH front lower hinge.
Hand-tighten the bolt that attaches the LH front door lower hinge to the door.
Tip: Use of the following tool(s) is recommended:
- 13 mm combination wrench
Courtesy of TESLA, INC.
Hand-tighten the bolts (x2) that attach the LH front door lower hinge to the body.
Tip: Use of the following tool(s) is recommended:
- 13 mm combination wrench
Courtesy of TESLA, INC.

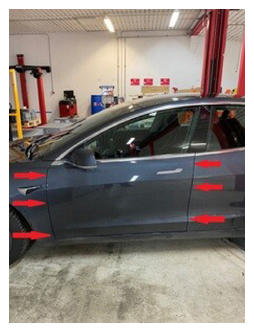

Close the LH front door and check for gap and flushness. Adjust as necessary.

Courtesy of TESLA, INC.

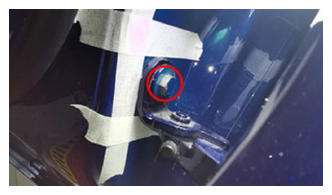

Tighten the bolt that attaches the LH front door lower hinge to the door.
49 N.m (36.1 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

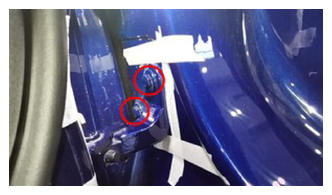

Tighten the bolts (x2) that attach the LH front door lower hinge to the body.
24 N.m (17.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Remove the masking tape that surrounds the LH front door lower hinge on the body and door.

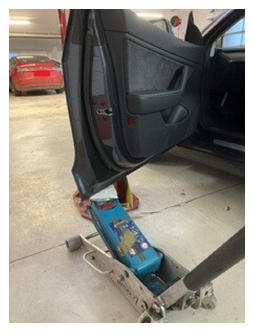

Remove the support from the LH front door.

Courtesy of TESLA, INC.
Apply touch up paint to the LH front lower door hinge bolts as needed.
NOTE: Make sure to shake touch up paint before applying, and wait at least 20 minutes to allow the 1st coat to completely dry before applying the 2nd coat (if necessary).
Raise the LH front window.
Close the LH front door.
