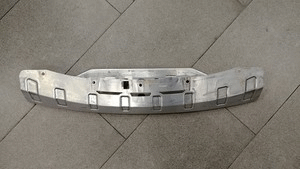

Upper Leg Support - Bumper Carrier - Front - Remove and Replace: Remove
- Remove the front fascia. See Fascia - Front (Remove and Install) .

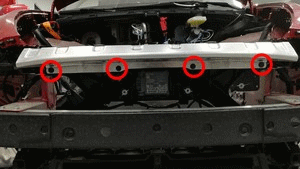

- Remove the bolts (x4) that attach the upper leg support to the front end carrier.
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- 6 in extension
- Flex head ratchet/flex head torque wrench

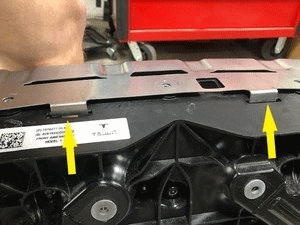

- Remove the tabs (x2) that attach the upper leg support to the front end carrier, and then remove the front bumper carrier upper leg support from the vehicle.
Tip: The mounting tabs (x2) need to be lifted out of the FEM for removal.
