Bumper Beam - Front - Remove And Replace: Install

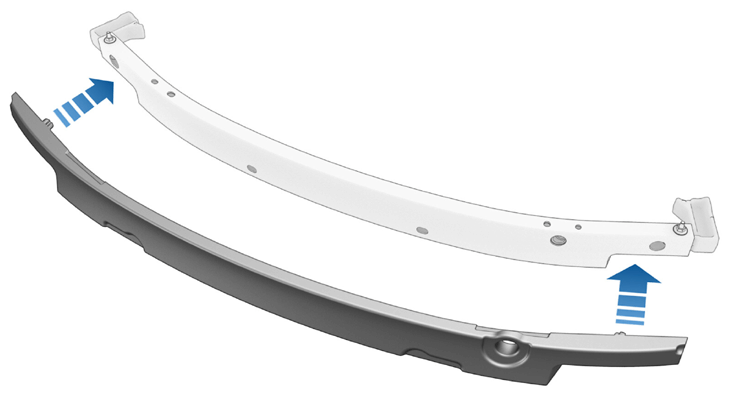

Install the front bumper beam foam onto the front bumper beam.

Courtesy of TESLA, INC.

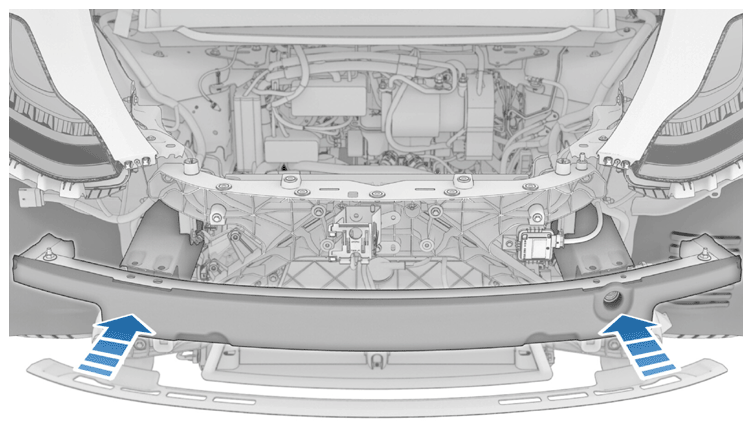

Use a dead blow hammer to install the front bumper beam to the LH and RH crush cans.

Courtesy of TESLA, INC.

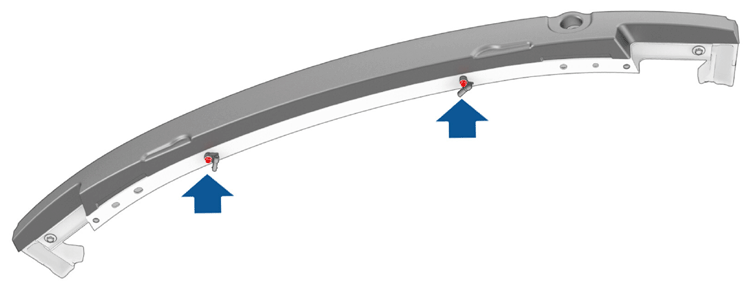

Install the bolts that attach the LH and RH front bumper crash accelerometer sensors.
10 N.m (7.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension
Courtesy of TESLA, INC.

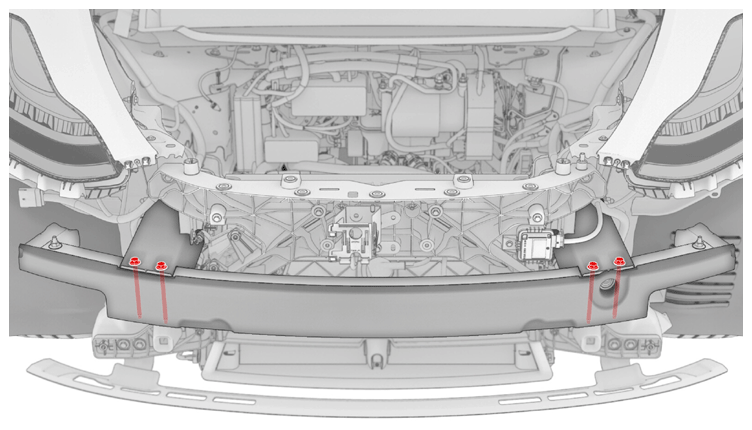

Install the new bolts that attach the LH and RH sides of the front bumper beam to the LH and RH crush cans.
75 N.m (55.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 15 mm socket
- 3 in extension
Courtesy of TESLA, INC.

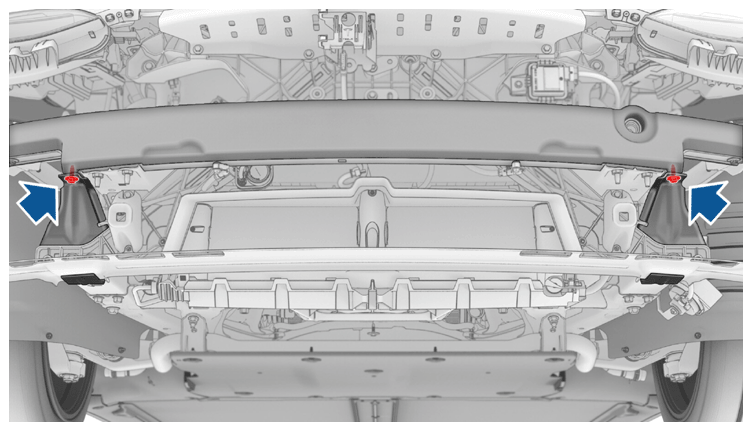

Install the bolts that attach the LH and RH sides of the front bumper beam to the ankle catcher.
16 N.m (11.8 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 13 mm socket
- 3 in extension
Courtesy of TESLA, INC.

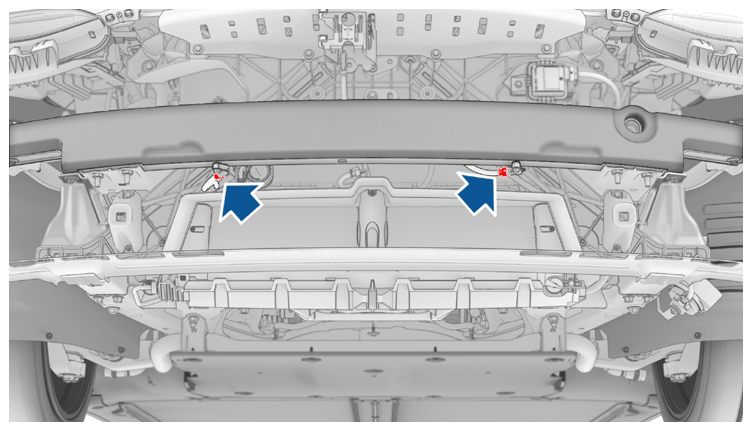

Connect the electrical connectors to the LH and RH front bumper crash accelerometer sensors.

Courtesy of TESLA, INC.
Install the front fascia. See Fascia - Front (Remove and Install) .
Connect 12 V power. See 12 V/LV Power (Disconnect and Connect) .
