Door - Rear - LH - Remove And Replace: Remove

  1. Remove the rear LH door glass. See GLASS - DOOR - LH - REAR (REMOVE AND REPLACE) .
  2. Remove the LH rear door outer belt seal. See SEAL - OUTER BELT - REAR DOOR - LH (REMOVE AND REPLACE) .
  3. Remove the LH rear motor/window regulator assembly. See WINDOW MOTOR/REGULATOR ASSEMBLY - REAR - LH (REMOVE AND REPLACE) .
  4. Remove the LH rear door exterior release handle. See HANDLE - EXTERIOR RELEASE - DOOR - REAR - LH (REMOVE AND REPLACE) .
  5. Remove the LH rear door latch. See LATCH - DOOR - REAR - LH (REMOVE AND REPLACE) .
  6. Remove the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  7. Remove the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .

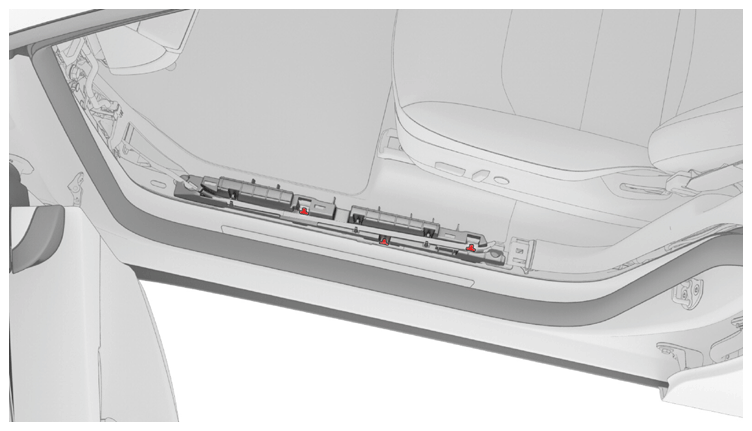

  8. Release the clips that attach the LH front seat harness and guide to the body.
    G14820395Courtesy of TESLA, INC.
  9. Move LH front seat fully forward.
  10. Release the LH upper B-pillar assembly, and then move it aside.
  11. Remove the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  12. Remove the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  13. Remove the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Non-Structural Pack) - Remove And Replace .

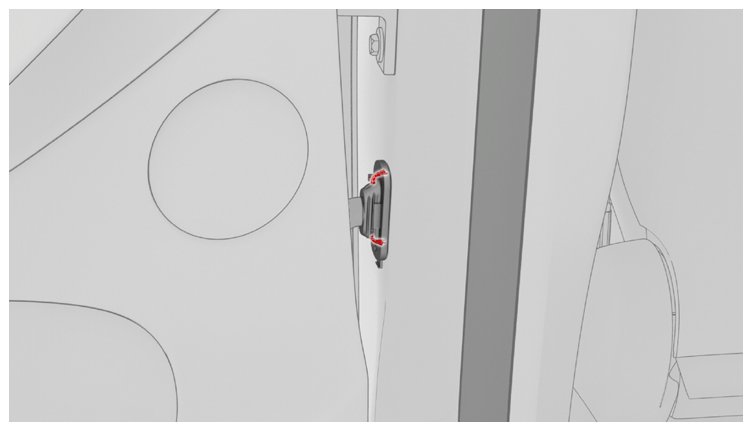

  14. Release the clips (x2), grommet and connector for the rear LH door electrical harness seal at the B-pillar, and release the wiring harness from the B-pillar bulkhead.
    G14820396Courtesy of TESLA, INC.

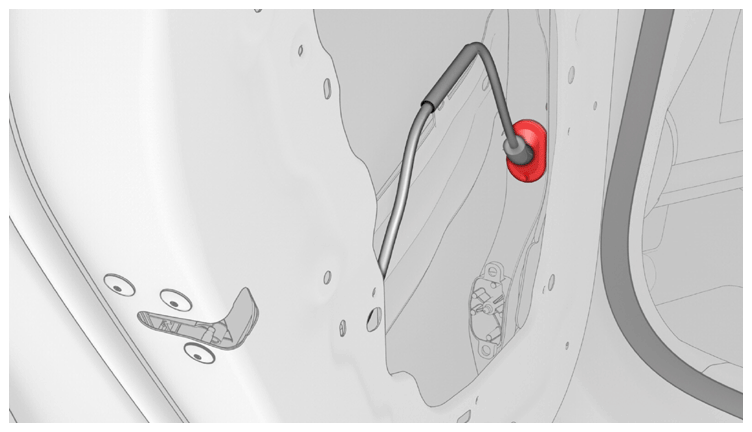

  15. Pull the rubber grommet through the inside of the LH rear door, and then remove the LH rear door harness from the door assembly.
    G14820397Courtesy of TESLA, INC.

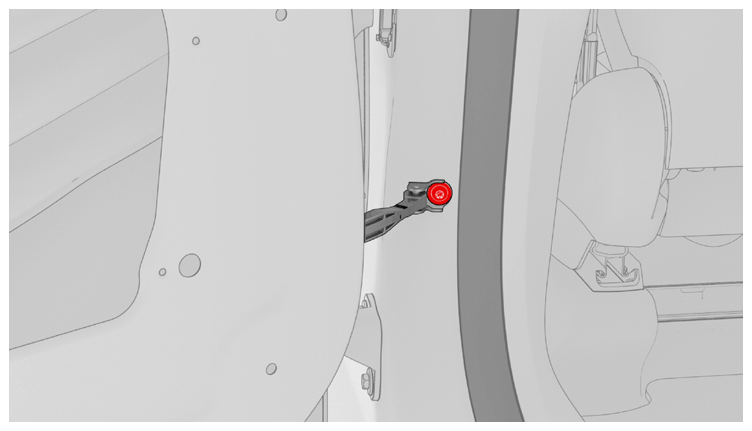

  16. Remove the bolt that attaches the LH rear door check strap to the body.

    Tip: Use of the following tool(s) is recommended:

    • Torx T40 socket
    • Flex head ratchet/flex head torque wrench
    G14820398Courtesy of TESLA, INC.

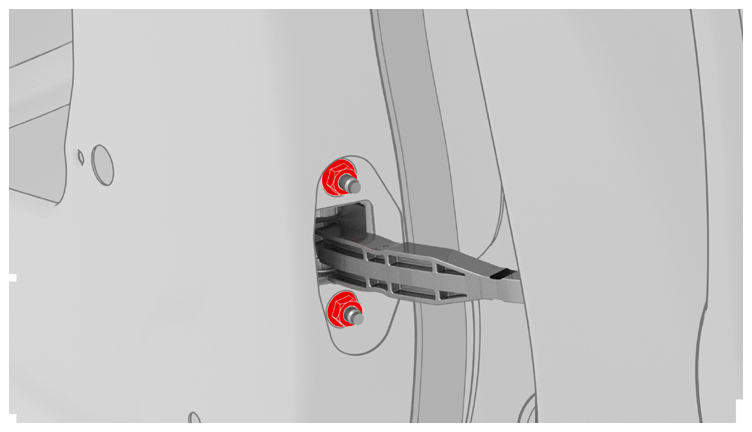

  17. Remove the nuts that attach the LH rear door check strap to the door, and then remove the check strap from the assembly.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    G14820399Courtesy of TESLA, INC.

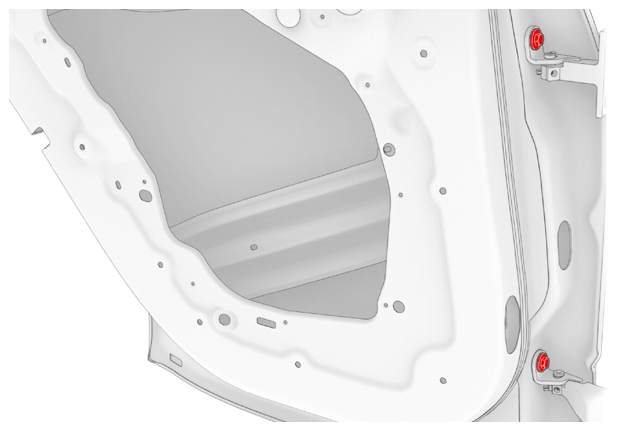

  18. Loosen the bolts or nuts that attach the rear LH door to the upper and lower hinges by approximately 5 mm.

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
    NOTE: Bolts shown, nuts similar
    G14820400Courtesy of TESLA, INC.

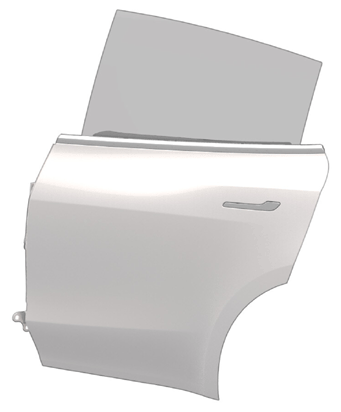

  19. With assistance, remove the bolt on the lower hinge, remove the bolt on the upper hinge, and then unhook and lift the door away from the vehicle.
    G14820401Courtesy of TESLA, INC.
