Door - Rear - LH - Remove And Install: Install

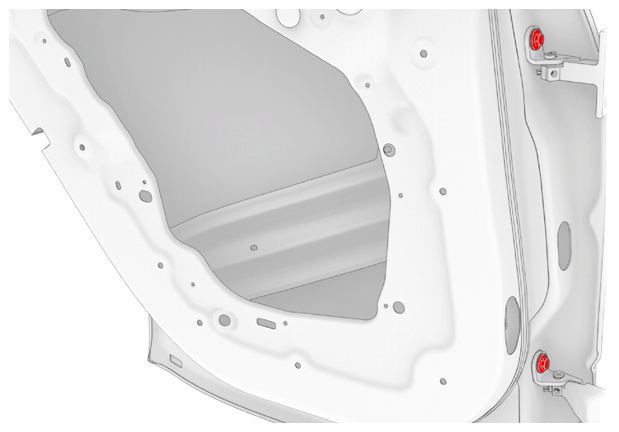

  1. With assistance, position the LH rear door assembly onto the vehicle.
  2. Install and hand-tighten the upper and lower bolts that attach the rear LH door to the upper and lower hinges.
    G14820388Courtesy of TESLA, INC.

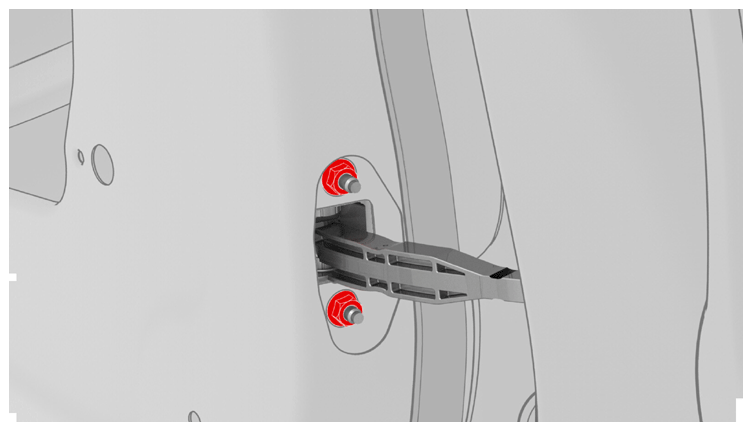

  3. Position the LH rear door check strap onto the door assembly, and then install the nuts that attach the door check strap to the door.

    10 N.m (7.4 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    G14820389Courtesy of TESLA, INC.

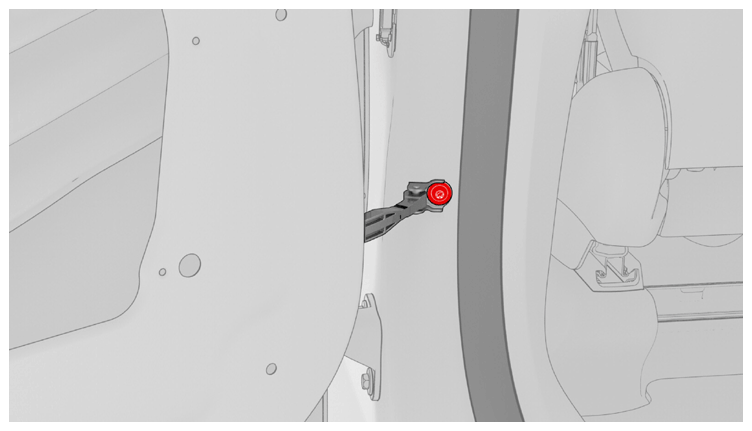

  4. Install the bolt that attaches the LH rear door check strap to the body.

    24 N.m (17.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T40 socket
    • Flex head ratchet/flex head torque wrench
    G14820390Courtesy of TESLA, INC.

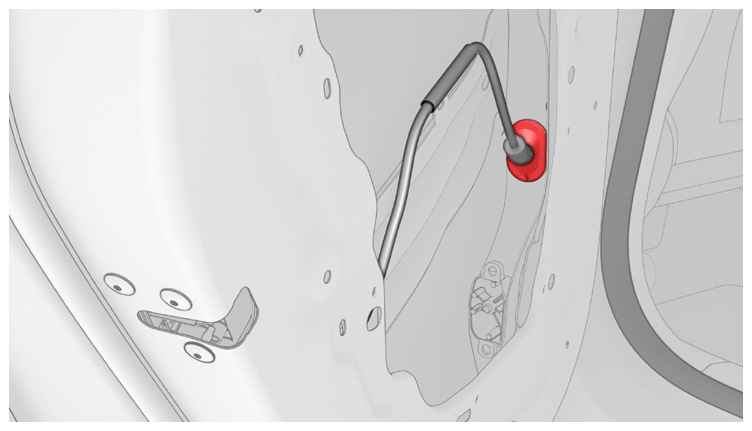

  5. Position the LH rear door harness into the door assembly, and then install the rubber grommet into the inside of the LH rear door.
    G14820391Courtesy of TESLA, INC.

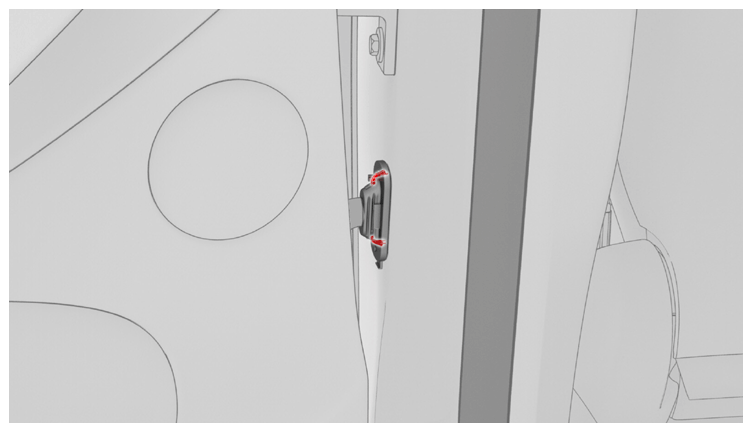

  6. Install the clips (x2), grommet and connector for the rear LH door electrical harness seal to the B-pillar.
    NOTE: Press the harness connector into the body connector until an audible click is heard.
    G14820392Courtesy of TESLA, INC.
  7. Install the LH lower B-pillar trim. See Trim - B-Pillar - Lower - LH (Non-Structural Pack) - Remove And Replace .
  8. Install the LH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  9. Install the 2nd row lower seat cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  10. Install the LH upper B-pillar assembly. See Trim - B-Pillar - Upper - LH (Remove and Replace) .
  11. Move LH front seat to its original position.

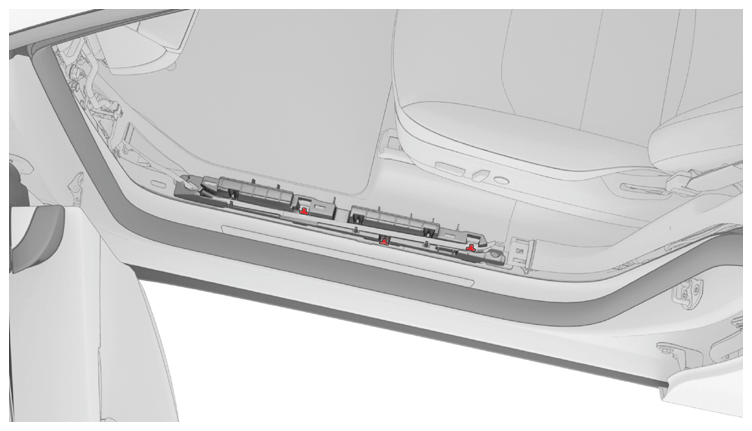

  12. Install the clips that attach the LH front seat harness and guide to the body.
    G14820393Courtesy of TESLA, INC.
  13. Install the LH lower A-pillar trim. See Trim - A-Pillar - Lower - LH (Remove and Replace) .
  14. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  15. Close the LH rear door and check for gap and flushness. Adjust as necessary.
  16. Open the LH rear door and torque the bolts that attach the door assembly to the upper and lower hinges.

    49 N.m (36.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 13 mm socket
    • Flex head ratchet/flex head torque wrench
  17. Calibrate the LH rear window. See Window Regulator - Recalibrate .
