Latch - Liftgate - Remove And Replace: Remove

  1. Remove the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace) .

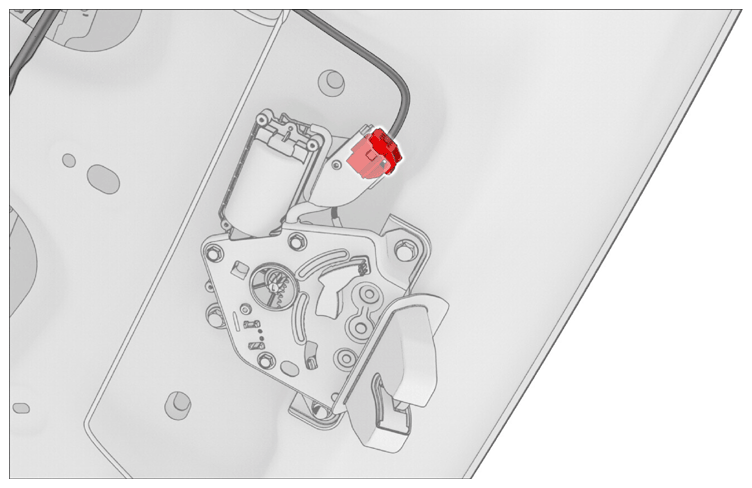

  2. Disconnect the electrical connector from the latch.
    G14820972Courtesy of TESLA, INC.

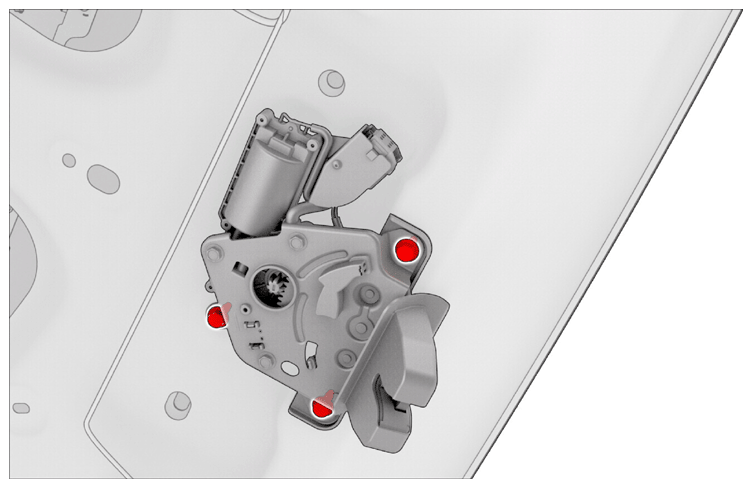

  3. Remove the bolts that attach the latch to the liftgate lid, and then remove the latch from the vehicle.
    NOTE: The latch has tabs on the backside. Slide the latch upwards to release the tabs from the liftgate.
    NOTE: Use of the following tool(s) is recommended:
    G14820973Courtesy of TESLA, INC.
