Sensor - Parking Distance - Inner - Rear - Remove And Replace: Remove

  1. Remove the rear fascia. See FASCIA - REAR (REMOVE AND INSTALL) .

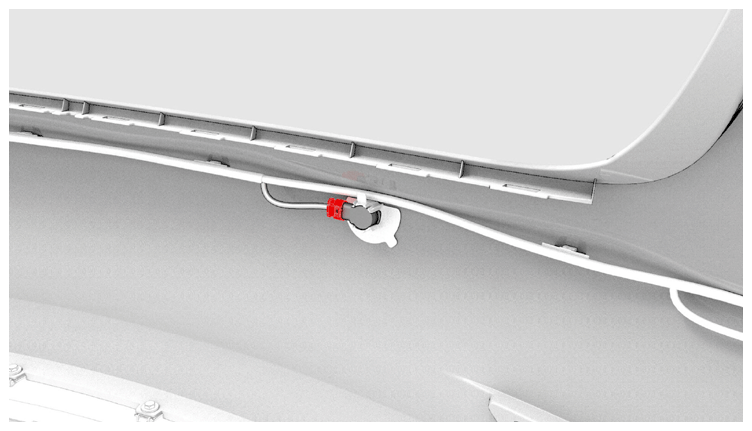

  2. Disconnect the electrical harness from the rear parking distance sensor connector.
    NOTE: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G14833865Courtesy of TESLA, INC.

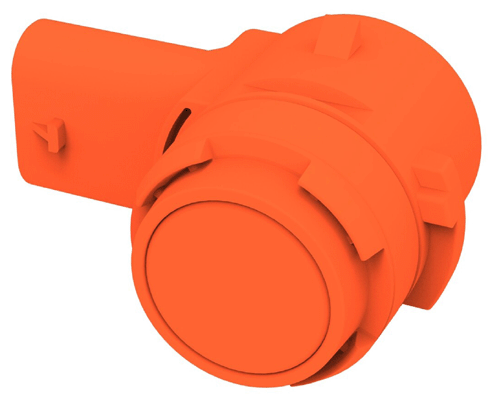

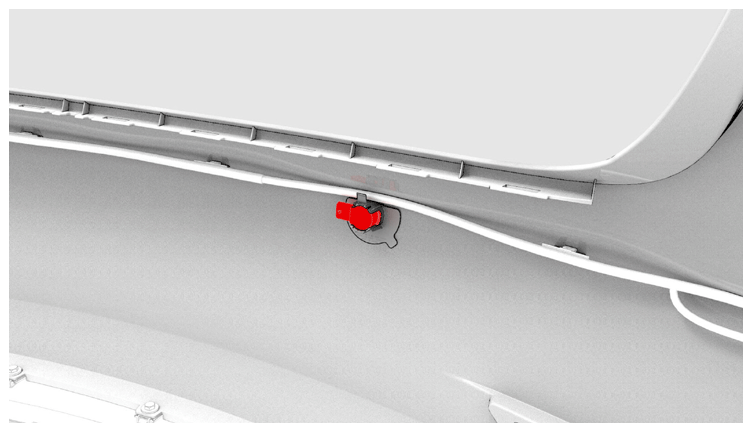

  3. Release the clips that attach the rear parking distance sensor to the rear fascia, and then remove the sensor from the rear fascia.
    G14833866Courtesy of TESLA, INC.
    G14833867Courtesy of TESLA, INC.
