Remove And Replace

  1. Open all four doors
    NOTE: If vehicle is being powered down, Latch rear doors to prevent accidental closure
  2. Lower all four windows
  3. Move LH front seat forward
  4. Move RH front seat forward
  5. Remove 2nd row seat cushion and disconnect harness
    NOTE: 2x tabs, 2x connectors. Press tab toward LH side of vehicle on each side to release front edge of seat cushion
    G00632298Courtesy of TESLA, INC.
    G00632299Courtesy of TESLA, INC.
    G00632300Courtesy of TESLA, INC.
    G00632301Courtesy of TESLA, INC.
  6. Open hood
    NOTE: Press "Open" button on the touchscreen to release the latch, Lift the lid manually
  7. Remove rear apron
    NOTE: 12x clips, Only store rear apron visible face upwards
    G00632302Courtesy of TESLA, INC.
    G00632303Courtesy of TESLA, INC.
    G00632304Courtesy of TESLA, INC.
  8. Remove LH IP end cap
    NOTE: 3x clips
    G00632305Courtesy of TESLA, INC.
  9. Remove LH mid A-pillar assembly
    NOTE: 1x clip, 1x tab. Release the upper clip then pull mid A-pillar upward to remove
    G00632306Courtesy of TESLA, INC.
  10. Remove clip for LH lower A-pillar trim
    NOTE: 1x push clip
    G00632307Courtesy of TESLA, INC.
  11. Remove LH lower A-pillar trim
    NOTE: x clip, 2 guide tabs. Pull rear of lower A-pillar upward to release clip then pull rearward to release front tabs from carpet
    G00632308Courtesy of TESLA, INC.
  12. Release seat belt retractor from LH front seat
    NOTE: Adjust seat if needed, Insert special removal tool into the bottom of the retractor to release
    G00632309Courtesy of TESLA, INC.
  13. Remove LH front seat rear fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m. Discard after removal
    G00632310Courtesy of TESLA, INC.
  14. Move LH front seat backward
  15. Remove LH front seat front fasteners
    NOTE: 2x patch bolts, T45P, 33.5 N.m. Discard after removal
    G00632311Courtesy of TESLA, INC
  16. Power off vehicle from center display
    NOTE: Via Controls > Safety & Security > Vehicle Power > Power Off, Confirm power off at warning dialogue box
  17. Disconnect 12 V negative terminal
    NOTE: 1x nut, 10 mm, 6 N.m. Ensure the vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12 V
    G00632312Courtesy of TESLA, INC.
  18. Remove 12 V cap from penthouse
    NOTE: 1x cap
    G00632313Courtesy of TESLA, INC.
  19. Disconnect HVC logic connector and install logic cap
    NOTE: 1x connector, 1x cap. Release locking tab then push the handle downward to release connector
    G00632314Courtesy of TESLA, INC.
    G00632315Courtesy of TESLA, INC.
  20. Disconnect LH front seat harness from left body controller
    NOTE: 1x connector. Release white lock, Slide lock upward
    G00632316Courtesy of TESLA, INC.
    G00632317Courtesy of TESLA, INC.
  21. Release LH front seat harness from sill trim clips
    NOTE: 5x clips
    G00632318Courtesy of TESLA, INC.
    G00632319Courtesy of TESLA, INC.
  22. Remove LH front seat from vehicle
    NOTE: Recommend assistance. With assistant supporting seat back from 2nd row seat. Remove seat from front LH door opening. Caution not to damage any trim. Protect the seat upholstery when the seat is outside of the vehicle
    G00632320Courtesy of TESLA, INC.
    G00632321Courtesy of TESLA, INC.
  23. Install the outboard headrest release tool
    NOTE: Depress the material around the headrest post to expose the release clip. Ensure both tangs of the release tool engage the retaining spring. The release tool is rotated into position. Illustrations show headrest removed for clarity.
    G00632322Courtesy of TESLA, INC.
    G00632323Courtesy of TESLA, INC.
    G00632324Courtesy of TESLA, INC.
  24. Install the inboard headrest release tool
    NOTE: Depress the material around the headrest post to expose the release clip. Ensure both tangs of the release tool engage the retaining spring. The release tool is rotated into position. Illustrations show headrest removed for clarity.
    G00632322Courtesy of TESLA, INC.
    G00632325Courtesy of TESLA, INC.
    G00632324Courtesy of TESLA, INC.
  25. Remove the headrest from seat
    NOTE: 2x locking clips. Remove by pulling straight up, out of the seat
    G00632326Courtesy of TESLA, INC.
  26. Remove the inboard headrest release tool
    NOTE: Rotate the release tool out of position, Do not pull straight up or out
    G00632327Courtesy of TESLA, INC.
  27. Remove the outboard headrest release tool
    NOTE: Rotate the release tool out of position, Do not pull straight up or out
    G00632327Courtesy of TESLA, INC.
  28. Rotate the seat to gain access to the underside of the seat
    NOTE: Protect seat cushion from damage
    G00632328Courtesy of TESLA, INC.
  29. Unhook the straps for the lower section of the seat back and move the seat back flap away from the underside of the seat
    NOTE: 2x clips
    G00632329Courtesy of TESLA, INC.
  30. Disconnect the seat back heater connector
    NOTE: 1x connector. Green
    G00632330Courtesy of TESLA, INC.
  31. Remove the seat back harness connector from the seat bottom
    NOTE: Slide the connector straight down to release it from the seat assembly
    G00632331Courtesy of TESLA, INC.
    G00632332Courtesy of TESLA, INC.
  32. Return seat to upright position
    G00632333Courtesy of TESLA, INC.
  33. Remove seat back from LH front seat
    NOTE: 6x clips. Start at the top of the seat and pull the shell away from the frame. When the side clips are free, pull the bottom and carefully roll the bottom tabs out of the slots. If pulled straight out the clips on the seat back can break off.
    G00632334Courtesy of TESLA, INC.
    G00632335Courtesy of TESLA, INC.
  34. Remove the upper flap covering the LH corner of the seat back frame
    NOTE: Pull flap out of the metal tabs to release
    G00632336Courtesy of TESLA, INC.
  35. Remove the lower flap covering the LH corner of the seat back frame
    NOTE: Pull flap out of the metal tabs to release
    G00632338Courtesy of TESLA, INC.
  36. Remove the upper flap covering the RH corner of the seat back frame
    NOTE: Pull flap out of the metal tabs to release
    G00632339Courtesy of TESLA, INC.
  37. Remove the lower flap covering the RH corner of the seat back frame
    NOTE: Pull flap out of the metal tabs to release
    G00632340Courtesy of TESLA, INC.
  38. Release seat back trim retainers from seat back frame
    NOTE: 7x retainers
    G00632341Courtesy of TESLA, INC.
  39. Pull the seat upholstery away from the side air bag to gain access to the air bag electrical connector
    G00632342Courtesy of TESLA, INC.
  40. Disconnect seat side air bag connector
    NOTE: 1x connector. Press and hold the black tabs on both sides and pull down to release the connector
    G00632343Courtesy of TESLA, INC.
  41. Pull the seat upholstery away from the FSAB to gain access to the air bag electrical connector
    G00632344Courtesy of TESLA, INC.
  42. Disconnect seat FSAB connector
    G00632345Courtesy of TESLA, INC.
  43. Remove bolt securing the power lumbar assembly to seat back frame
    NOTE: 1x bolt, 10 mm, 5 N.m
    G00632346Courtesy of TESLA, INC.
  44. Release lower portion of power lumbar assembly from seat back frame
    NOTE: 2x tabs
    G00632347Courtesy of TESLA, INC.
  45. Remove nuts securing 1st row side air bag to seat back frame
    NOTE: 2x nuts, 10 mm, 5.4 N.m. Do not use impact tool. Discard nuts after removal
    G00632348Courtesy of TESLA, INC.
  46. Pull LH front seat side airbag chute away from the seat frame
    G00632349Courtesy of TESLA, INC.
  47. Remove nuts securing FSAB to seat back frame
    NOTE: 2x nuts, 10 mm, 5.4 N.m. Do not use impact tool. Discard nuts after removal
    G00632350Courtesy of TESLA, INC.
  48. Pull the FSAB and fasteners away from the seat frame
    G00633291Courtesy of TESLA, INC.
  49. Remove the upholstery trim
    NOTE: Start by pulling the bottom of the seat trim away from the seat frame, ensure the heater harness and the trim is clear of the frame, Lift straight up on the sides of the trim, moving the trim from side to side, to free it from the frame
    G00633292Courtesy of TESLA, INC.
    G00633293Courtesy of TESLA, INC.
  50. Pull LH side air bag chute away from seat back foam assembly
    NOTE: Avoid overhandling air bag
    G00633294Courtesy of TESLA, INC.
    G00633295Courtesy of TESLA, INC.
  51. Remove the LH air bag from seat back assembly
    NOTE: 2x studs. Clear air bag studs from air bag pouch and slide air bag assembly out. Avoid overhandling air bag. If air bag is dropped or damaged, replace air bag.
    G00633296Courtesy of TESLA, INC.
    G00633297Courtesy of TESLA, INC.
  52. Pull the RH FSAB chute away from seat back foam assembly
    NOTE: Avoid overhandling air bag
    G00633298Courtesy of TESLA, INC.
    G00633299Courtesy of TESLA, INC.
  53. Remove the RH FSAB from seat back assembly
    NOTE: 2x studs. Clear air bag studs from air bag pouch and slide air bag assembly out. Avoid overhandling air bag. If air bag is dropped or damaged, replace air bag.
    G00633300Courtesy of TESLA, INC.
    G00633301Courtesy of TESLA, INC.
  54. Release seat back trim from foam assembly containing FSAB
    NOTE: 1x Velcro strip. Be cautious when releasing Velcro to avoid damage.
    G00633302Courtesy of TESLA, INC.
    G00633303Courtesy of TESLA, INC.
  55. Release hog rings securing remaining trim to foam and remove seat back trim containing FSAB
    NOTE: 3x hog rings
    G00633304Courtesy of TESLA, INC.
    G00633305Courtesy of TESLA, INC.
  56. Install the hog rings securing trim to foam and position trim assembly containing FSAB for Velcro installation
    NOTE: 3x hog rings
    G00633305Courtesy of TESLA, INC.
    G00633304Courtesy of TESLA, INC.
  57. Install seat back trim onto seat back foam containing FSAB
    NOTE: 1x Velcro strip
    G00633302Courtesy of TESLA, INC.
    G00633303Courtesy of TESLA, INC.
  58. Install the RH FSAB to seat back assembly
    NOTE: 2x studs, Clear studs and slide air bag into position, Align studs with access holes
    G00633306Courtesy of TESLA, INC.
    G00633307Courtesy of TESLA, INC.
  59. Position RH FSAB chute assembly into seat back foam
    NOTE: Avoid overhandling air bag, FSAB is located inside the seat
    G00633308Courtesy of TESLA, INC.
    G00633309Courtesy of TESLA, INC.
  60. Install the LH air bag to seat back assembly
    NOTE: 2x studs, Clear studs and slide air bag into position, Align studs with access holes.
    G00633310Courtesy of TESLA, INC.
    G00633311Courtesy of TESLA, INC.
  61. Position LH air bag chute assembly into seat back foam
    NOTE: Avoid overhandling air bag
    G00633312Courtesy of TESLA, INC.
    G00633313Courtesy of TESLA, INC.
  62. Install the seat back and foam onto seat back frame
    NOTE: Start by sliding the foam trim straight onto the seat back frame, ensure the posts for the headrests engage the seat back foam, Ensure the heater harness and lower trim that engages the frame are pushed through to the back side of the frame
    G00633314Courtesy of TESLA, INC.
    G00633315Courtesy of TESLA, INC.
    G00633316Courtesy of TESLA, INC.
  63. Position LH front side air bag studs into seat frame and install nuts securing side airbag to seat back frame
    NOTE: 2x nuts, 10 mm, 5.4 N.m, Install new nuts
    G00633317Courtesy of TESLA, INC.
  64. Connect front seat side air bag connector
    NOTE: 1x connector
    G00633318Courtesy of TESLA, INC.
  65. Install nuts securing FSAB to seat back frame
    NOTE: 2x nuts, 10 mm, 5.4 N.m, Install new nuts
    G00633319Courtesy of TESLA, INC.
  66. Connect front seat FSAB connector
    NOTE: 1x connector
    G00633320Courtesy of TESLA, INC.
  67. Secure lower portion of power lumbar assembly onto seat back frame
    NOTE: 2x tabs
    G00633321Courtesy of TESLA, INC.
  68. Install bolt securing the power lumbar assembly to seat back frame
    NOTE: 1x bolt, 10 mm, 5 N.m
    G00633322Courtesy of TESLA, INC.
  69. Install the lower flap covering the LH corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G00633323Courtesy of TESLA, INC.
  70. Install the upper flap covering the LH corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G00633324Courtesy of TESLA, INC.
  71. Install the lower flap covering the RH corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G00633325Courtesy of TESLA, INC.
  72. Install the upper flap covering the RH corner of the seat back frame
    NOTE: Pull the flap over the metal tangs to secure
    G00633326Courtesy of TESLA, INC.
  73. Secure seat back trim retainers onto seat back frame
    NOTE: 7x retainers
    G00633327Courtesy of TESLA, INC.
  74. Install the seat back shell base assembly to seat back frame
    NOTE: 8x clips, Install the lower clips first and rotate the shell up into place, Light pressure may need to be applied to the shell to ensure it's fully seated, The headrest posts will engage the seat back when installed
    G00633328Courtesy of TESLA, INC.
    G00633329Courtesy of TESLA, INC.
    G00633330Courtesy of TESLA, INC.
    G00633331Courtesy of TESLA, INC.
  75. Install the headrest into seat
    NOTE: 2x locking clips, Ensure the headrest is fully seated, An audible click will be heard when installing the headrest, Ensure the headrest is seated by tugging up on the headrest
    G00633332Courtesy of TESLA, INC.
  76. Rotate the seat to gain access to the underside of the seat
    NOTE: Protect seat cushion from damage
    G00633333Courtesy of TESLA, INC.

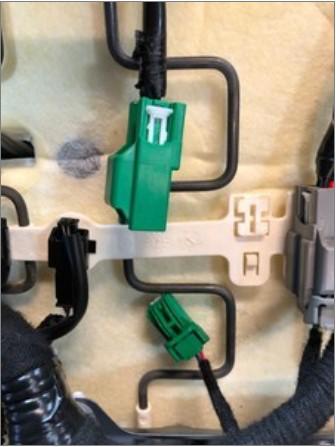

  77. Install the seat back harness connector to the seat bottom
    G00633334Courtesy of TESLA, INC.
  78. Connect the seat heater harness
    NOTE: 1x connector
    G00633335Courtesy of TESLA, INC.
  79. Hook the strap clips for the seat back shell onto the seat suspension
    NOTE: 2x clips. Ensure the straps are tight for proper fit and installation
    G00633336Courtesy of TESLA, INC.
  80. Rotate the seat back to the upright position
    G00633337Courtesy of TESLA, INC.
  81. Install LH front seat into vehicle
    NOTE: Recommend assistance, Install seat from front LH door opening, Assistant should be ready to support seat back once it is in the vehicle, Caution not to damage any trim
    G00633338Courtesy of TESLA, INC.
    G00633339Courtesy of TESLA, INC.
  82. Install LH seat harness to sill trim clips
    NOTE: 5x clips. Tuck excess harness between 12 V harness bracket and body
    G00633340Courtesy of TESLA, INC.
    G00633341Courtesy of TESLA, INC.
    G00633342Courtesy of TESLA, INC.
  83. Connect LH front seat harness to left body controller
    NOTE: 1x connector. Engage locking tab, Tuck excess harness if equipped with MY compatible seat
    G00633343Courtesy of TESLA, INC.
    G00633344Courtesy of TESLA, INC.
    G00633345Courtesy of TESLA, INC.
  84. Remove logic cap and connect the HVC logic connector
    NOTE: 1x connector, 1x cap. Align connector then pull the handle to locking position get connector fully seated
    G00633346Courtesy of TESLA, INC.
    G00633347Courtesy of TESLA, INC.
  85. Install 12 V cap to penthouse
    NOTE: 1x cap
    G00633348Courtesy of TESLA, INC.
  86. Connect 12 V negative terminal
    NOTE: 1x nut, 10 mm, 6 N.m
    G00633349Courtesy of TESLA, INC.
  87. Install rear apron
    NOTE: 12x clips
    G00632303Courtesy of TESLA, INC.
    G00633350Courtesy of TESLA, INC.
  88. Close hood
  89. Install LH front seat front bolts
    NOTE: 2x patch bolts, T45P, 33.5 N.m. Install new patch bolts
    G00632311Courtesy of TESLA, INC.
  90. Move LH front seat forward
  91. Install LH front seat rear bolts
    NOTE: 2x patch bolts, T45P, 33.5 N.m. Install new patch bolts
    G00632310Courtesy of TESLA, INC.
  92. Install LH front seat retractor to seat
    NOTE: Insert retractor into seat pre tensioner. Make sure it locks into position with push-pull-push test
    G00633351Courtesy of TESLA, INC.
  93. Install LH lower A-pillar trim
    NOTE: 1x clip, 2 guide tabs. Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar. Fully seat seal along trim
    G00633352Courtesy of TESLA, INC.
    G00633353Courtesy of TESLA, INC.
    G00633354Courtesy of TESLA, INC.
  94. Install clip for LH lower A-pillar trim
    NOTE: 1x push clip
    G00632307Courtesy of TESLA, INC.
  95. Install LH mid A-pillar assembly
    NOTE: 1x clip, 1x tab. Align the bottom tab then push the top clip to fully seat mid A-pillar. Pull seal over trim
    G00633355Courtesy of TESLA, INC.
  96. Install LH IP end cap
    NOTE: 3x clips
    G00633356Courtesy of TESLA, INC.
  97. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    NOTE: 2x connectors, 2x clips. Insert the seat belt buckles through the holes. Slide rear cushion inward then align front guide tabs to locking tabs. Make sure cushion is fully seated with push & pull test near clips
    G00632301Courtesy of TESLA, INC.
    G00632300Courtesy of TESLA, INC.
    G00633357Courtesy of TESLA, INC.
  98. Move LH front seat to original position
  99. Move RH front seat to original position
  100. Raise all windows
  101. Close all four doors
    NOTE: Unlatch rear doors before closing
scientia non olet · About LEMON Manuals
