Actuator - Recliner - 3rd Row Seat - LH - Remove And Replace: Remove

  1. Remove the 3rd seat backs. See SEAT BACKS - 3RD ROW (REMOVE AND REPLACE) .

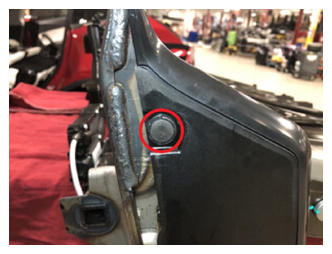

  2. Remove the outer clip that attaches the 3rd row LH inner B-cover to the seat frame assembly.
    G14822989Courtesy of TESLA, INC.
  3. Release the 3rd row LH recliner actuator cable from the seat frame assembly.
    G14822990Courtesy of TESLA, INC.
  4. Release the 3rd row LH recliner actuator cable from the clip on seat frame assembly.
    G14822991Courtesy of TESLA, INC.
  5. Disconnect the 3rd row LH recliner actuator electrical connector.
    G14822992Courtesy of TESLA, INC.

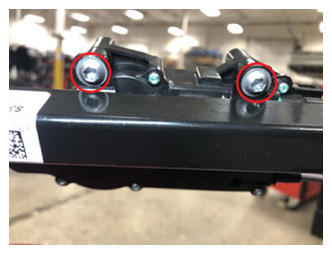

  6. Remove the bolts that attach the LH 3rd row recliner actuator to the seat frame assembly, and then remove the actuator from the assembly.

    2.5 N.m (1.8 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Hex bit set with Tamper-proof Torx
    G14822994Courtesy of TESLA, INC.
