Casting - Podium - 2nd Row Seat - LH (7-Seat) - Remove and Replace: Install

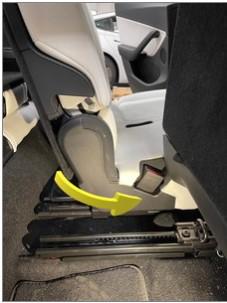

Position the LH 2nd row seat podium casting into the seat assembly, and then secure the harness clip and install new bolts (x2) that attach the casting to the seat assembly.
Torque 37 N.m (27.3 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 11 mm socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Position the front edge of the LH 2nd row seat cushion onto the seat assembly, and then install the clips that attach the cushion to the seat assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the seat pan fastener to the LH front of the LH 2nd row seat.
Torque 6 N.m (4.4 ft-lbs)

NOTE: 1x fastener, 10 mm, 6 N.m

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
Courtesy of TESLA, INC.
Position the LH 2nd row seat outer sideshield to the seat assembly, connect the electrical connector, and then secure the clip that attaches the sideshield to the seat assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the push clip at the front of the LH 2nd row seat outer sideshield assembly.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Position the LH 2nd row seat inboard outer trim onto the seat assembly, and then secure the clips (x3) that attach the trim to the seat assembly.

Courtesy of TESLA, INC.
Install the LH 2nd row seat assembly. See Seat Assembly - 2nd Row - LH (7-Seat) (Remove And Replace) .
