Trim - Sill - Trunk - Remove And Replace: Remove

  1. Remove the rear trunk load floor. See TRUNK LOAD FLOOR - REAR (REMOVE AND REPLACE)
  2. Release the clips that attach the trunk sill trim to the body.

    Tip: Pull the corner of the trunk sill trim upwards to release the corner clip, and then release the remaining clips.

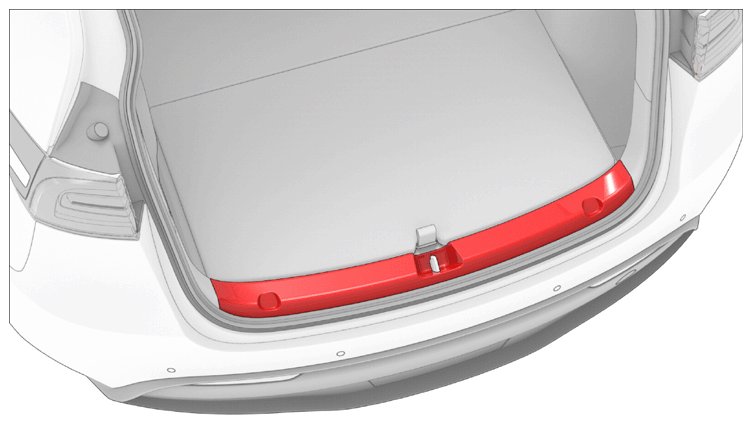

    G14824682Courtesy of TESLA, INC.

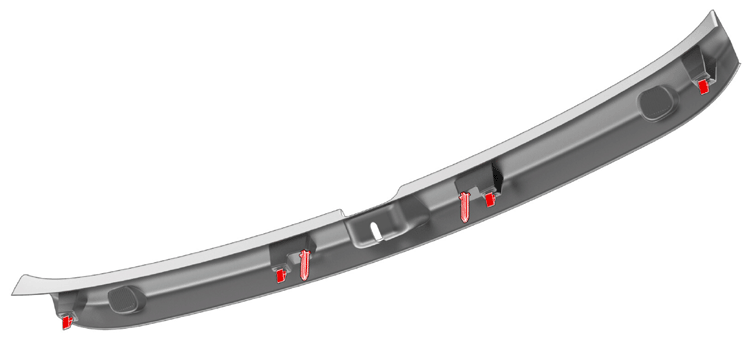

    G14824683Courtesy of TESLA, INC.
  3. Remove the trunk sill trim from the vehicle.

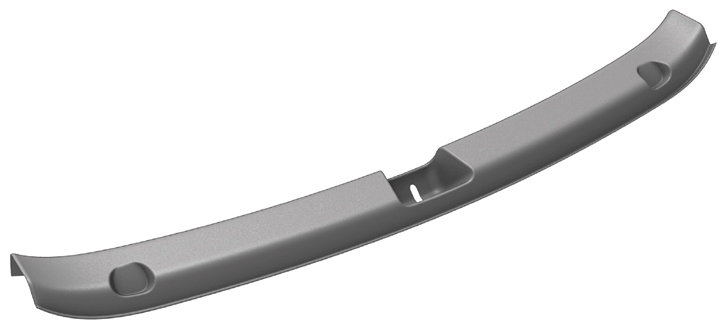

    G14824684Courtesy of TESLA, INC.
