Carpet - Rear Trunk - Remove And Replace: Remove

  1. Remove the LH and RH load floor brackets. See BRACKET - TRUNK LOAD FLOOR - LH (REMOVE AND REPLACE) .
  2. Remove the clips (x6) that attach the trunk tub to the vehicle, and then remove the tub from the vehicle.
    NOTE: 7-seater carpet is attached by 4 clips.

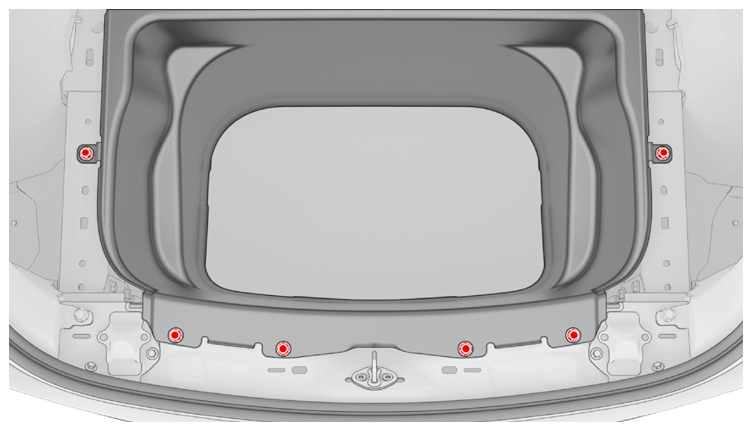

    G14824699Courtesy of TESLA, INC.

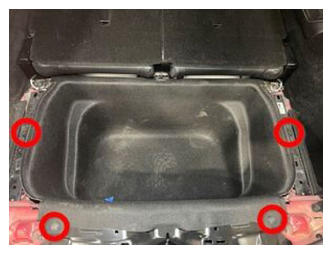

    G14824700Courtesy of TESLA, INC.

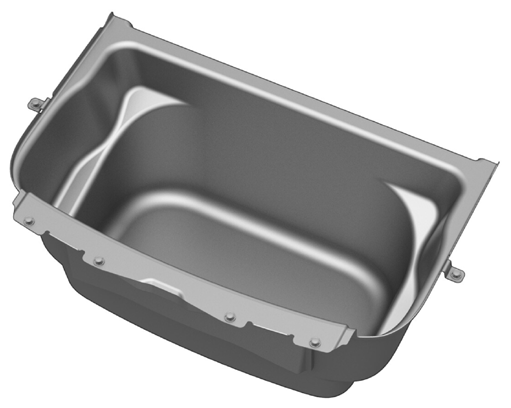

    G14824701Courtesy of TESLA, INC.

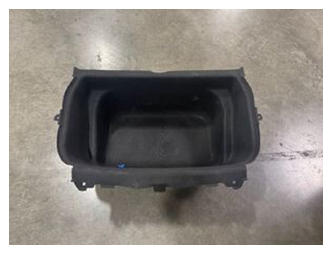

    G14824702Courtesy of TESLA, INC.
