Removal and Install

Open all four doors
Lower all four windows
Open liftgate

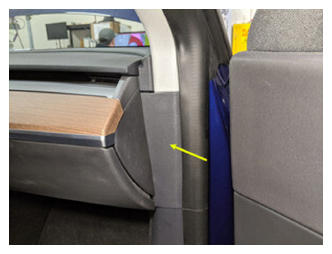

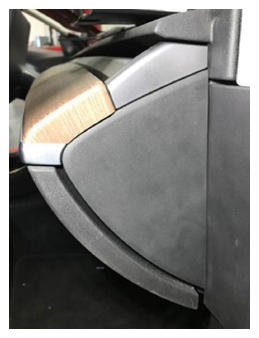

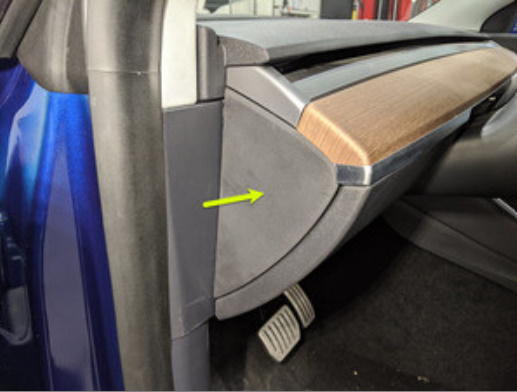

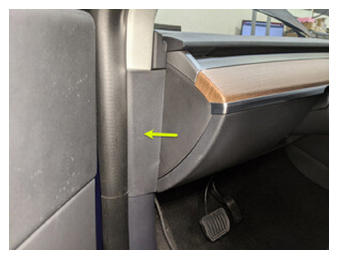

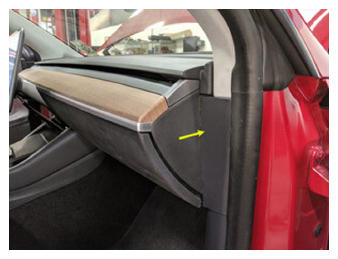

Remove LH IP end cap
NOTE: 3x clips

Courtesy of TESLA, INC.

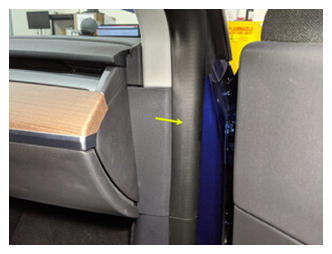

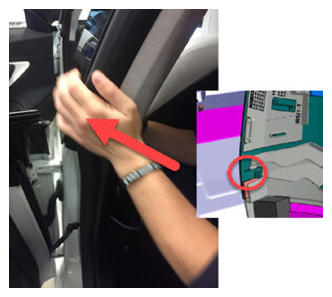

Remove LH mid A-pillar assembly
NOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove

Courtesy of TESLA, INC.

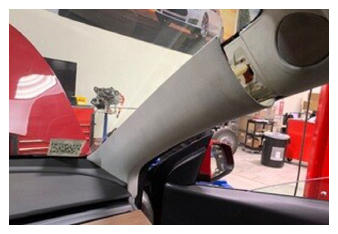

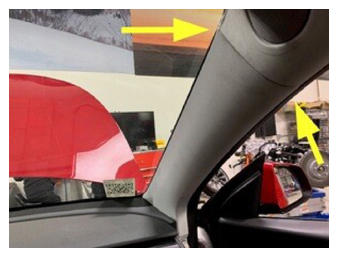

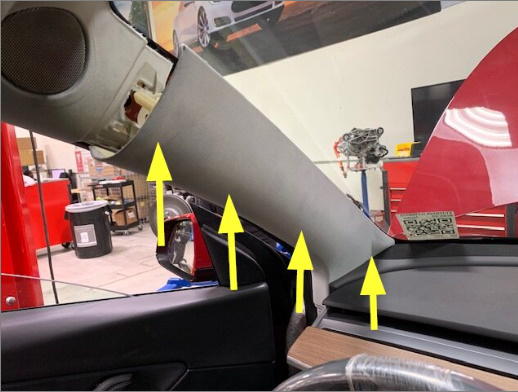

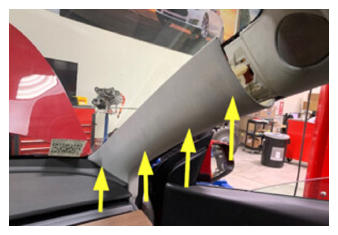

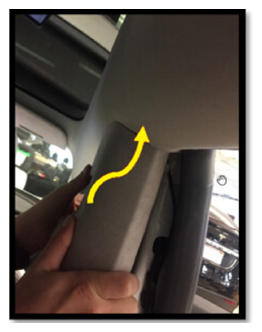

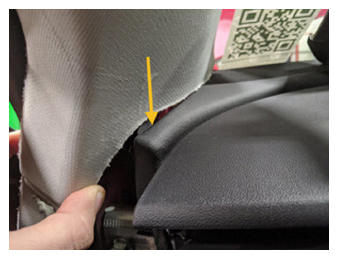

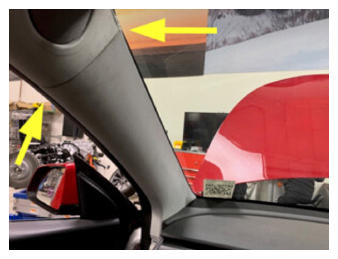

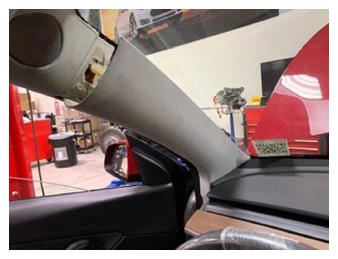

Remove LH upper A-pillar trim
NOTE: 3x clips, Pull inside of the upper portion of upper A-pillar, Depress 2x tabs to remove tether from body side, Then pull upper A-pillar upward to remove

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove clip securing LH lower A-pillar trim
NOTE: 1x push clip

Courtesy of TESLA, INC.
Remove LH lower A-pillar trim
NOTE: 6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel

Courtesy of TESLA, INC.

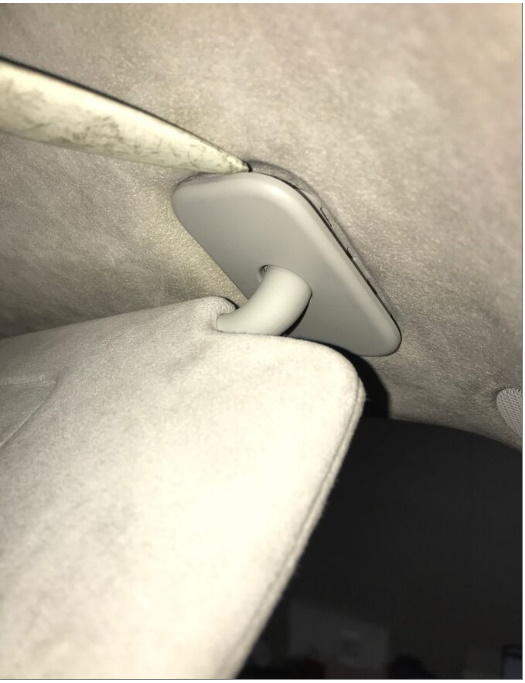

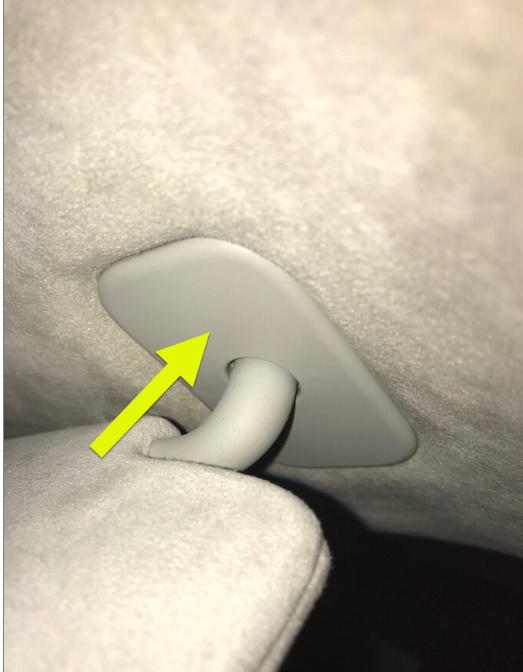

Remove LH sun visor bracket cover
NOTE: 4x clips, Extending the sun visor may allow for extra working room

Courtesy of TESLA, INC.

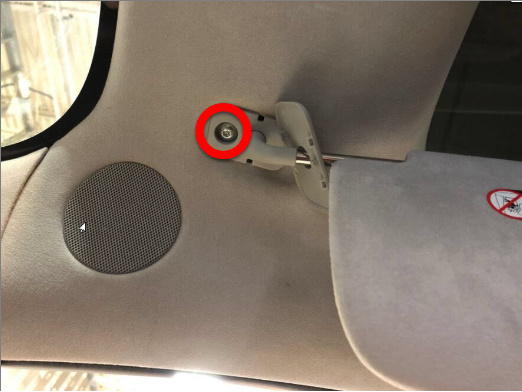

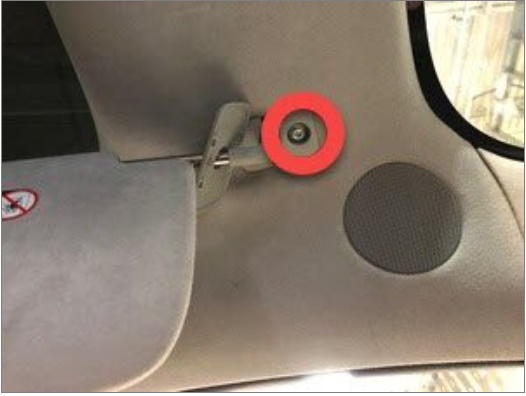

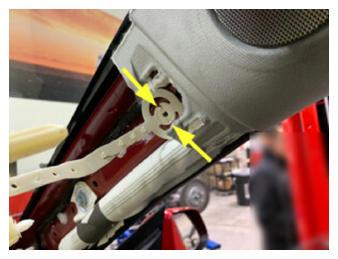

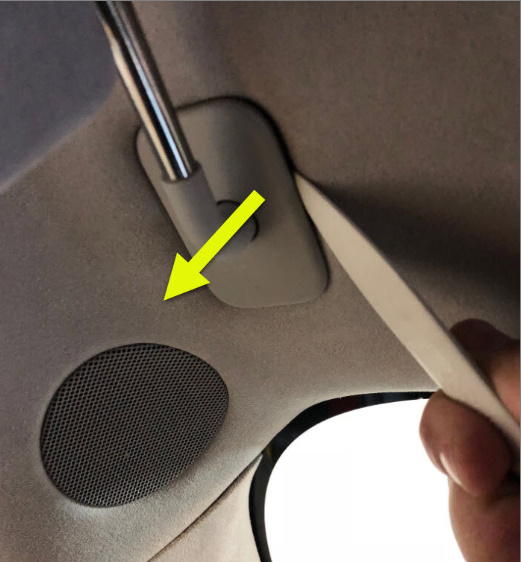

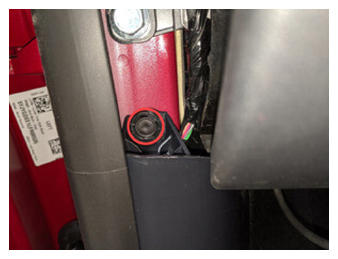

Remove LH sun visor fastener
NOTE: 1x screw, T25, 3.5 N.m, Extending the sun visor may allow for extra working room

Courtesy of TESLA, INC.

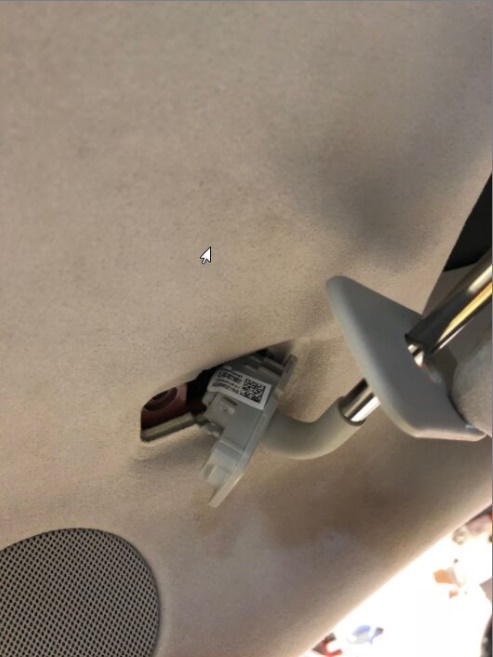

Remove LH sun visor from headliner area
NOTE: Fold sun visor to the closed and folded down position but do not latch in place

Courtesy of TESLA, INC.

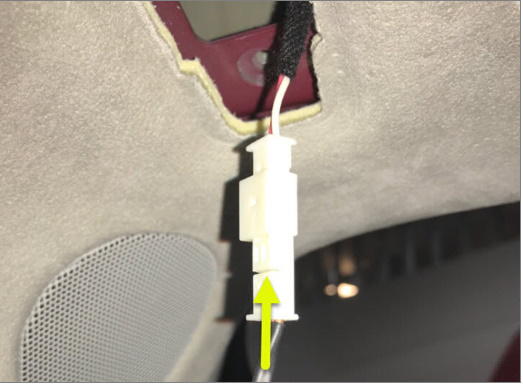

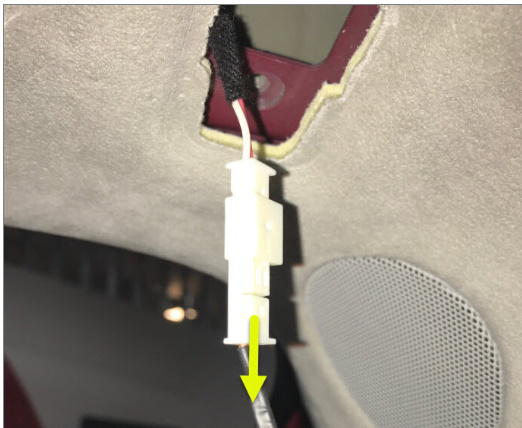

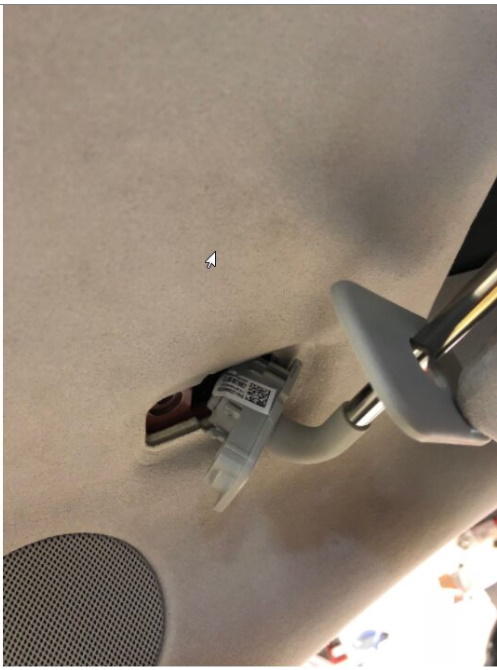

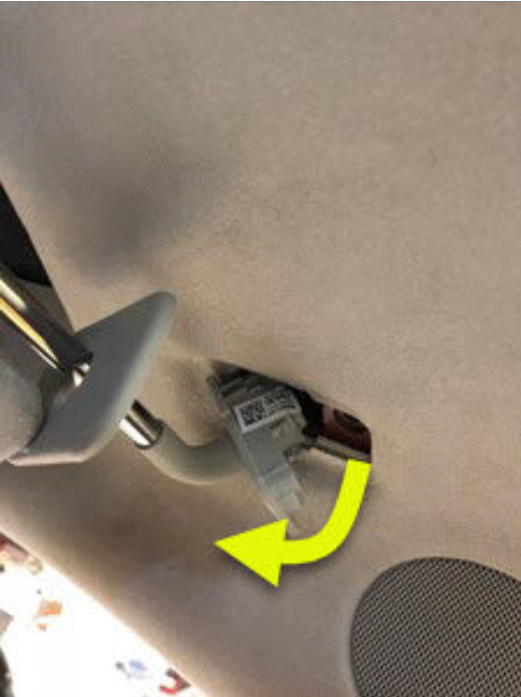

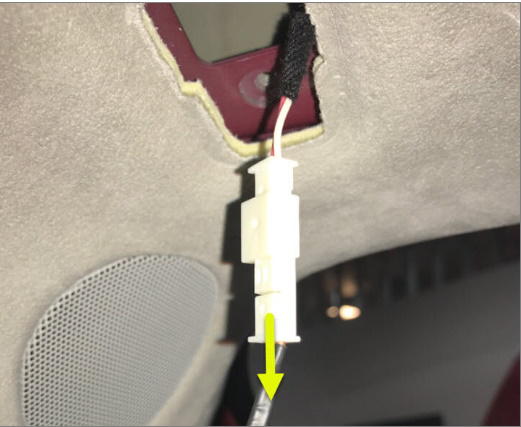

Disconnect LH sun visor connector
NOTE: 1x connector

Courtesy of TESLA, INC.

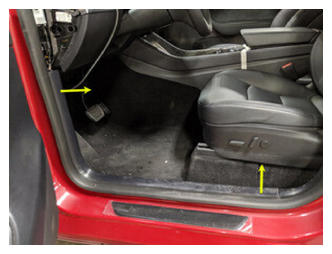

Move LH front seat forward

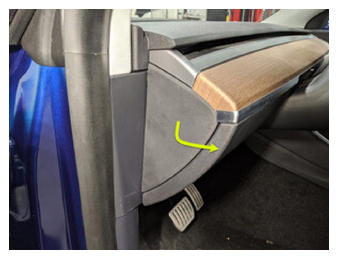

Remove RH IP end cap
NOTE: 3x clips

Courtesy of TESLA, INC.
Remove RH mid A-pillar assembly
NOTE: 1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove

Courtesy of TESLA, INC.

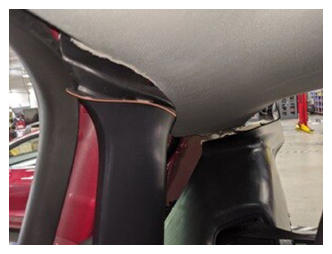

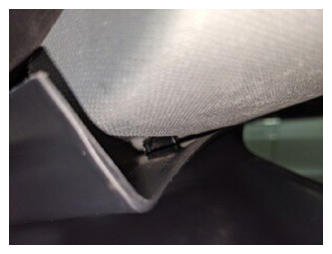

Remove RH upper A-pillar trim
NOTE: 3x clips, Pull inside of the upper portion of upper A-pillar, Remove 3x tether hooks by twisting and pulling away from housing, Then pull upper A-pillar upward to remove

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove RH sun visor bracket cover
NOTE: 4x clips, Extending the sun visor may allow for extra working room

Courtesy of TESLA, INC.
Remove RH sun visor fastener
NOTE: 1x screw, T25, 3.5 N.m, Extending the sun visor may allow for extra working room

Courtesy of TESLA, INC.
Remove RH sun visor from headliner area
NOTE: Fold sun visor to the closed and folded down position but do not latch in place

Courtesy of TESLA, INC.
Disconnect RH sun visor connector
NOTE: 1x connector

Courtesy of TESLA, INC.
Move RH front seat forward

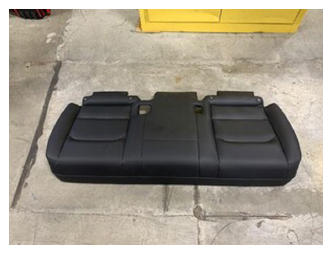

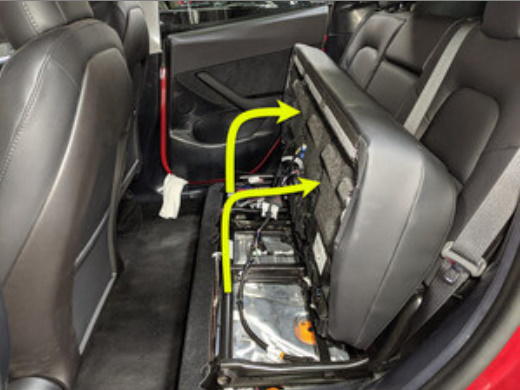

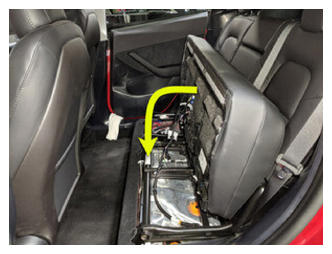

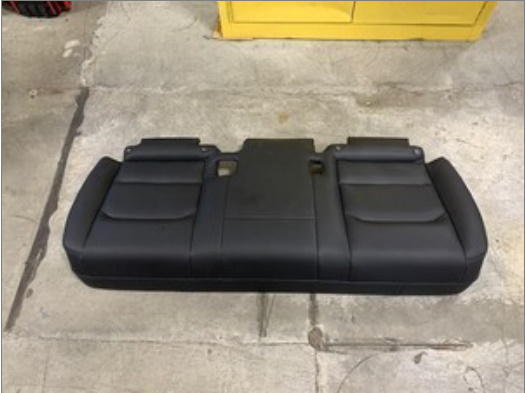

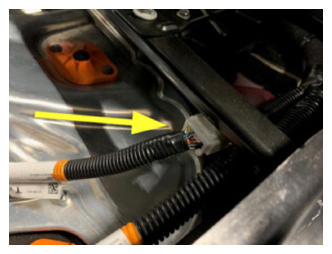

Remove 2nd row seat cushion
NOTE: 1x connector, Lift front edge of seat cushion upward to release foam from frame

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

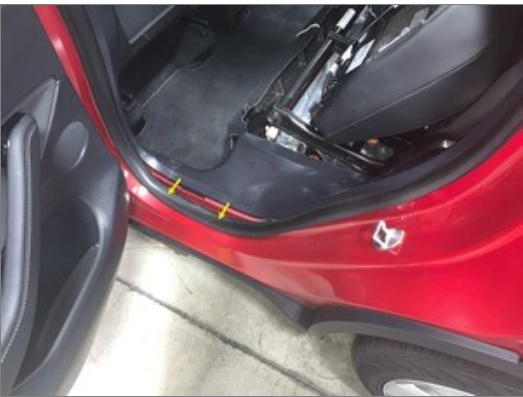

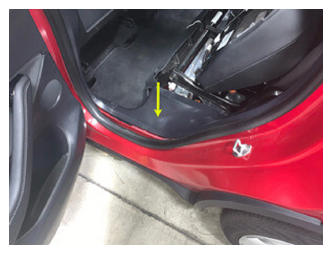

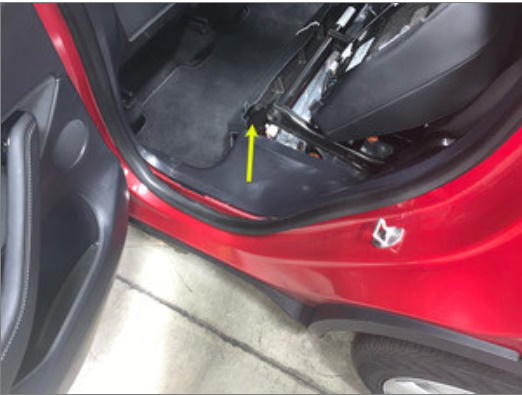

Partially remove LH rear door seal

Courtesy of TESLA, INC.

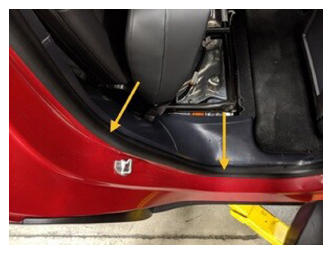

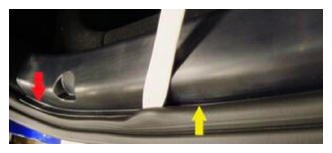

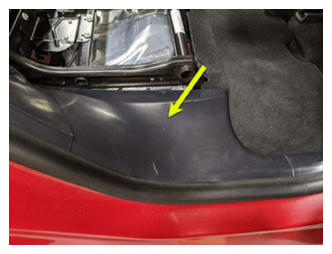

Remove LH rear sill trim
NOTE: 5x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of LH rear sill trim working your way back towards rear of sill trim, Trim part may slightly differ, by vehicle build location

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

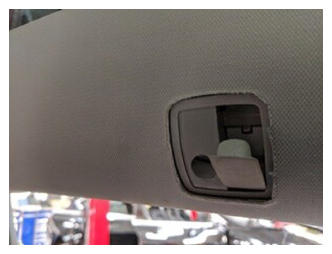

Push open LH coat hook

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

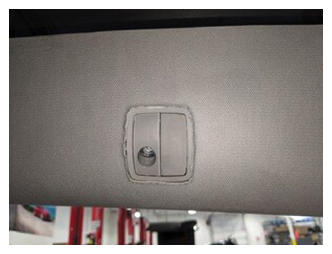

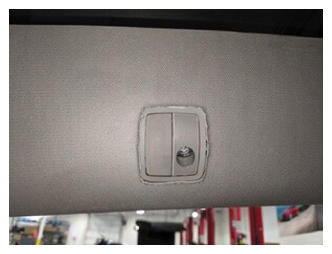

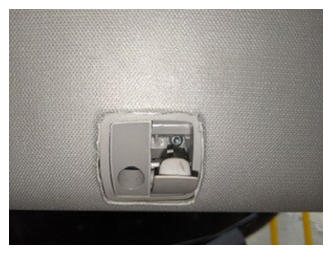

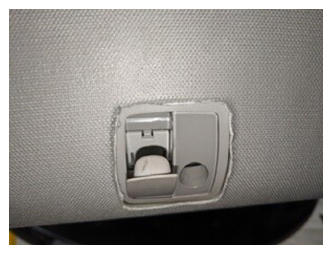

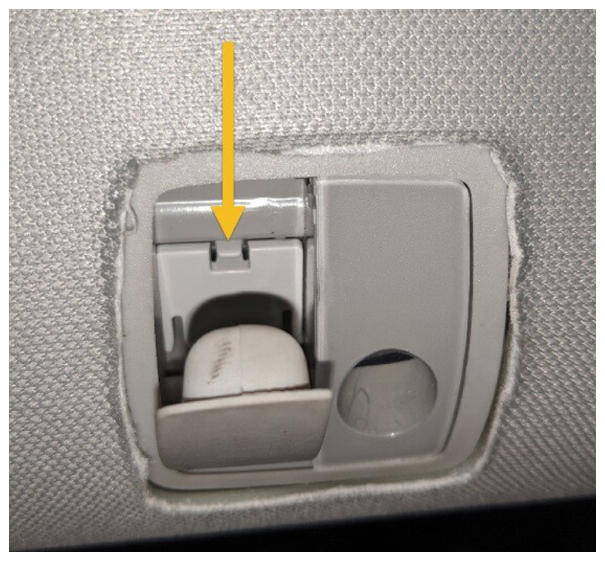

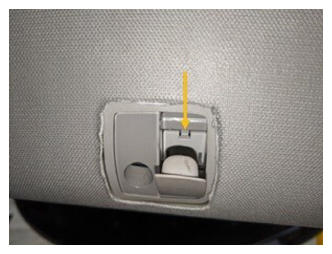

Open LH coat hook screw cover
NOTE: 1x locking tab

Courtesy of TESLA, INC.

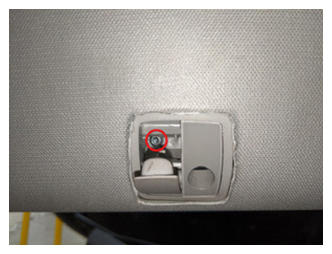

Remove LH coat hook screw
NOTE: 1x screw, T20, 1.0 N.m

Courtesy of TESLA, INC.

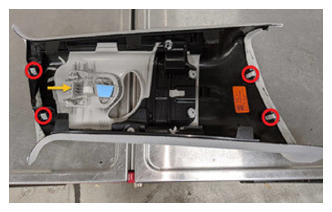

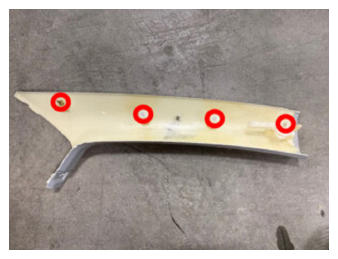

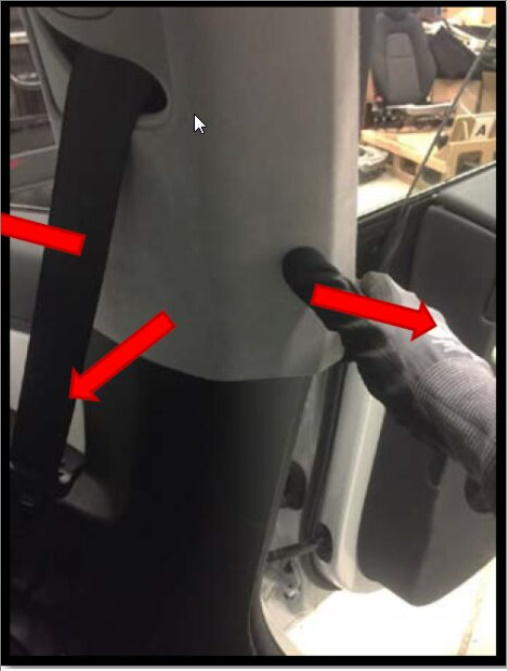

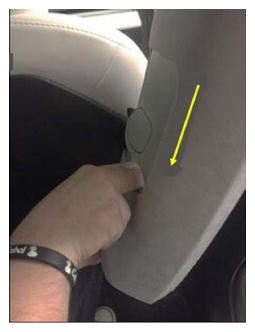

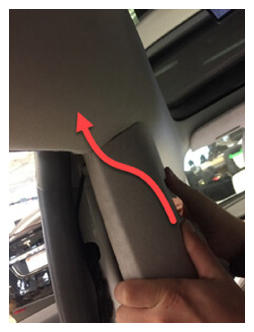

Release LH upper B-pillar assembly and move aside
NOTE: 4x clips, Pull the bottom of the upper B-pillar toward inside of the vehicle then pull the top to release the remaining clips

Courtesy of TESLA, INC.

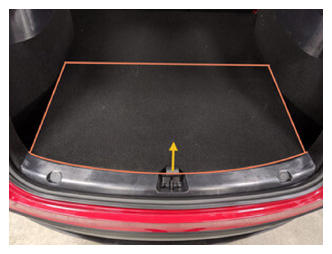

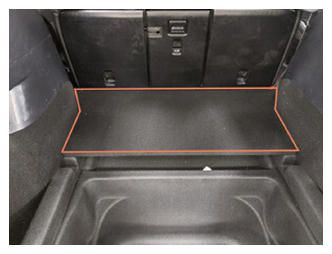

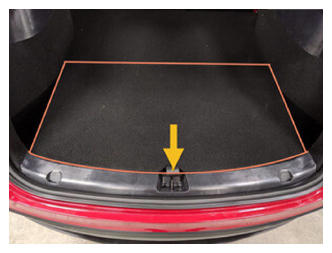

Remove rear load floor

Courtesy of TESLA, INC.

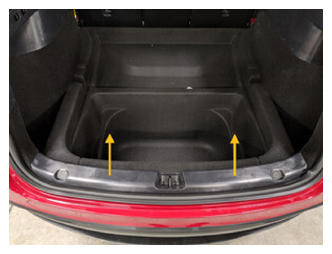

Remove front load floor

Courtesy of TESLA, INC.

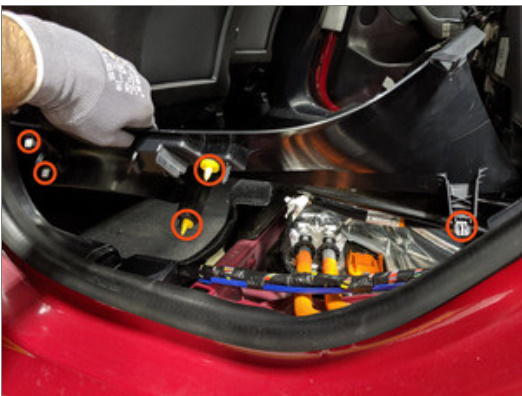

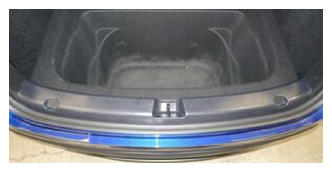

Remove trunk sill trim
NOTE: 4x clips

Courtesy of TESLA, INC.

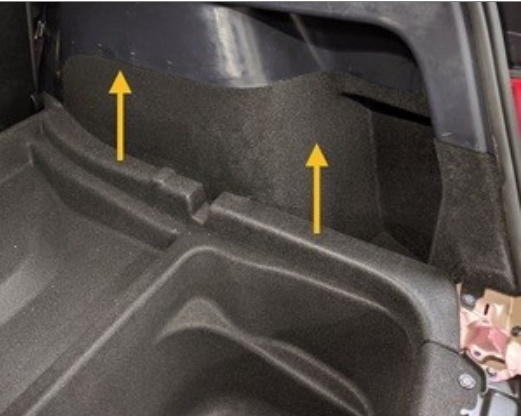

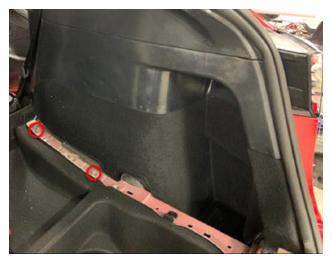

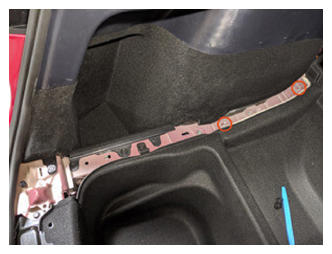

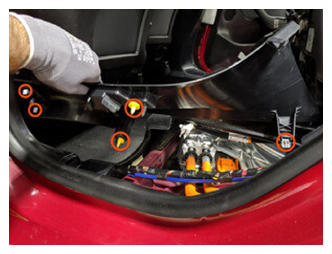

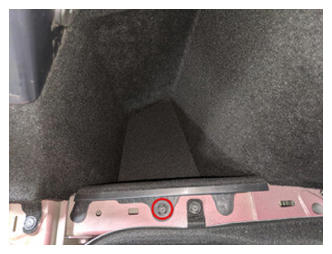

Remove LH load floor bracket
NOTE: 3x tabs, 2x clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

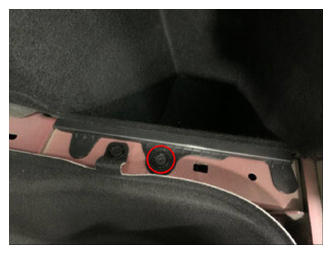

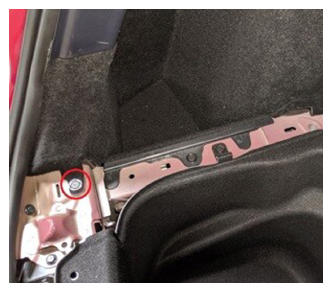

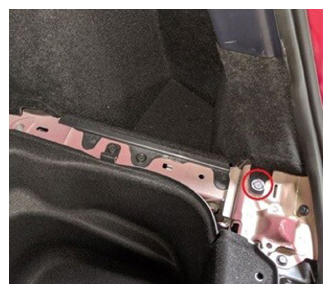

Remove LH trunk pocket bracket
NOTE: 1x push clip, 5x alignment tabs

Courtesy of TESLA, INC.

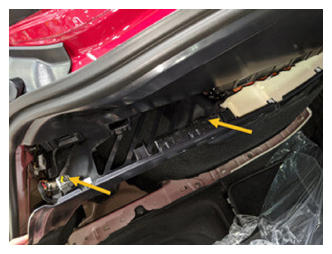

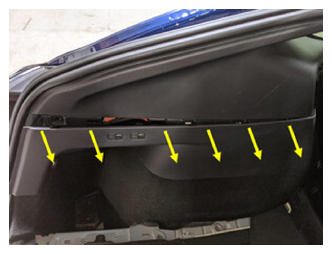

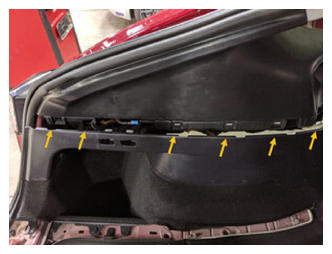

Release top edge of LH trunk side trim and disconnect 12V outlet and trunk switch connectors
NOTE: 6x clips, 2x connectors, Trim part may slightly differ, by vehicle build location

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

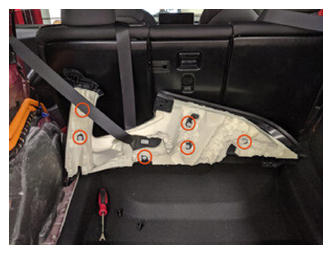

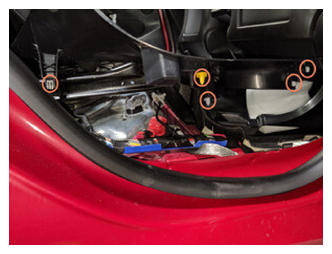

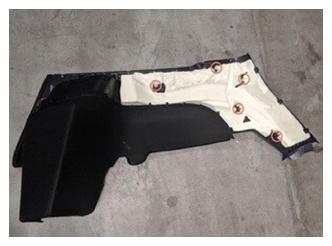

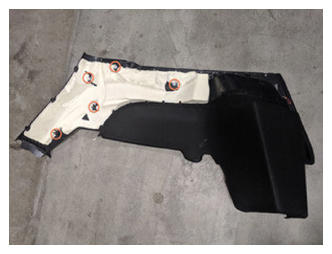

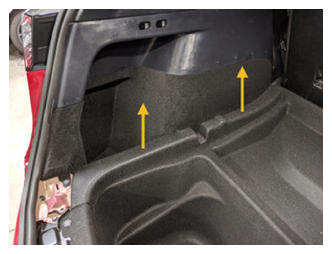

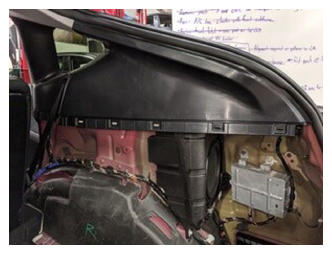

Release remaining clips and remove LH trunk side trim
NOTE: 1x push clip, 5x clips, Guide front clip stanchions around LH C-pillar

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

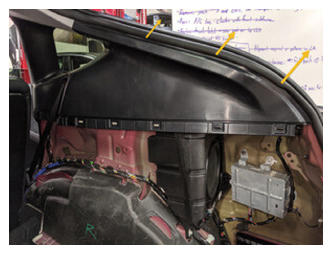

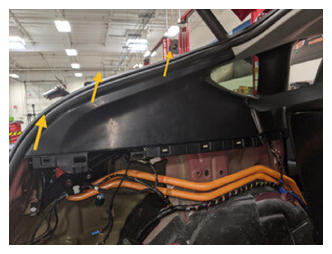

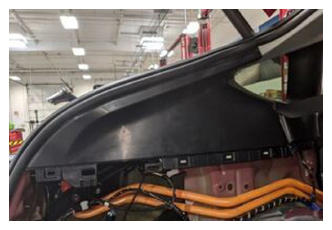

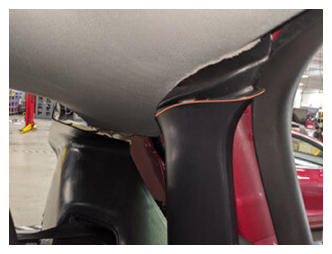

Remove LH upper C-pillar trim
NOTE: 6x clips, Guide front upper corner groove out from headliner and place trim aside

Courtesy of TESLA, INC.

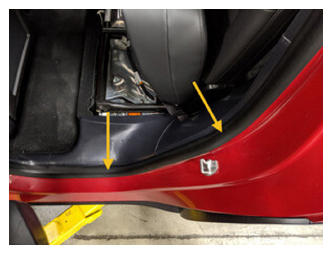

Partially remove RH rear door seal
NOTE: Pillar and sill trim have tabs seated underneath seal

Courtesy of TESLA, INC.
Remove RH rear sill trim
NOTE: 5x clips, Rear edge is mated with groove in trunk side trim, Release clips at the front of RH rear sill trim working your way back towards rear of sill trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Push open RH coat hook

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Open RH coat hook screw cover
NOTE: 1x locking tab

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove RH coat hook screw
NOTE: 1x screw, T20, 1.0 N.m

Courtesy of TESLA, INC.
Release clips securing the RH upper B-pillar assembly and move aside
NOTE: 4x clips, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove RH load floor bracket
NOTE: 3x tabs, 2x clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

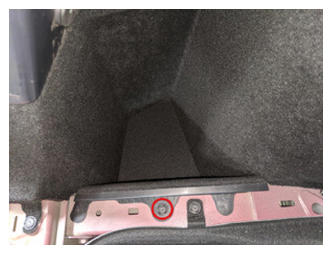

Remove RH trunk pocket bracket
NOTE: 1x push clip, 5x alignment tabs

Courtesy of TESLA, INC.
Release clips and remove RH trunk side trim
NOTE: 1x push clip, 11x clips, Guide front clip stanchions around RH C-pillar

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Remove RH upper C-pillar trim
NOTE: 6x clips, Guide front upper corner groove out from headliner and place trim aside

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

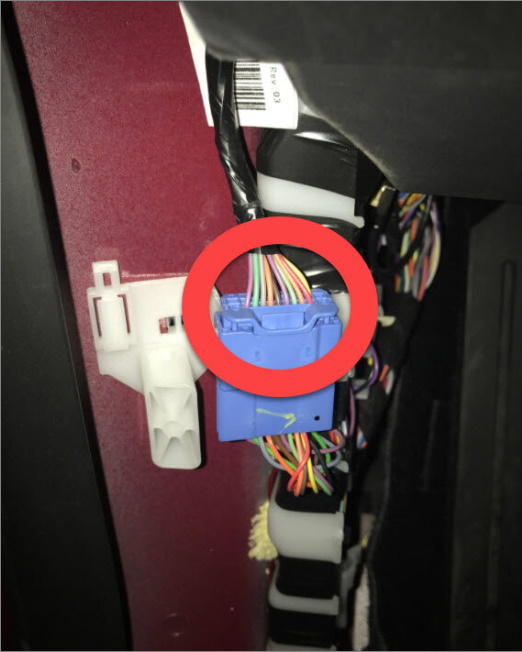

Disconnect headliner harness
NOTE: 1x connector

Courtesy of TESLA, INC.

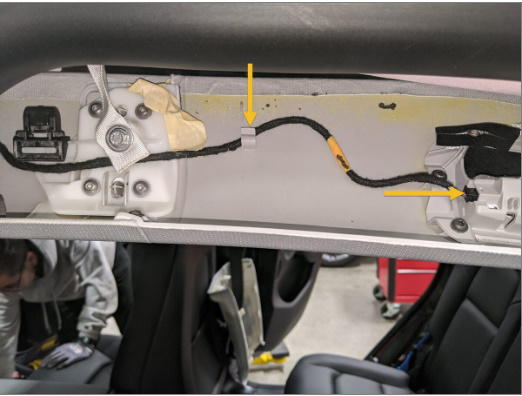

Remove headliner harness clips from LH A-pillar area
NOTE: 6x clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

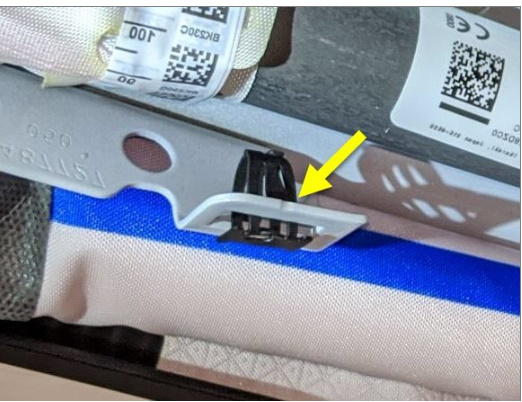

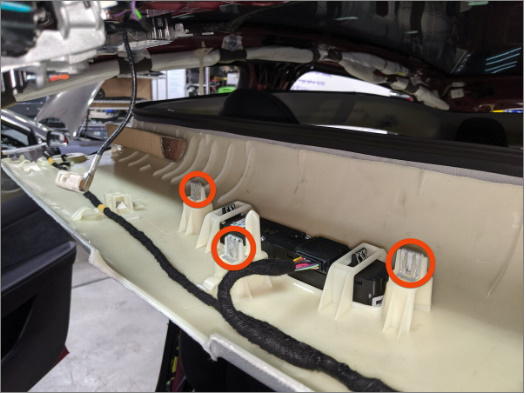

Release headliner from body
NOTE: 11x clips, Recommend assistance, Headliner will be partially supported by safety tethers at B-pillars and 2x tether clips at rear corners

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

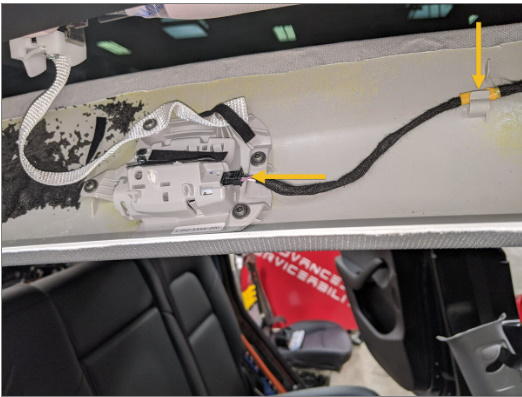

Disconnect LH rear map light and release from rear portion of headliner
NOTE: 1x connector, 1x harness clip

Courtesy of TESLA, INC.
Disconnect RH rear map light and release from rear portion of headliner
NOTE: 1x connector, 1x harness clip

Courtesy of TESLA, INC.

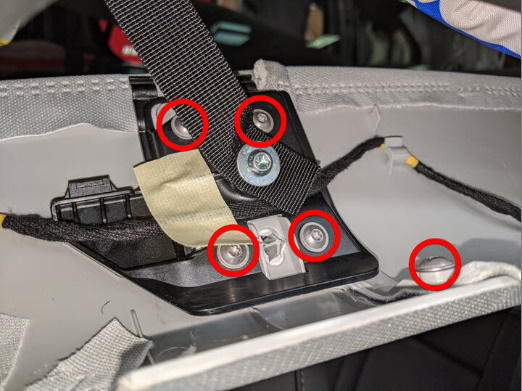

Remove fasteners joining front and rear headliner trim
NOTE: 10x screws, T20, 1.0 N.m

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

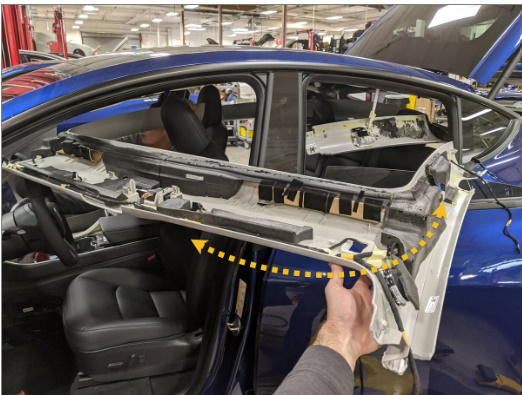

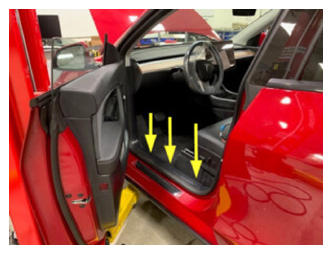

Remove front headliner from vehicle
NOTE: Recommend assistance, Remove through front door, Place headliner on clean surface

Courtesy of TESLA, INC.

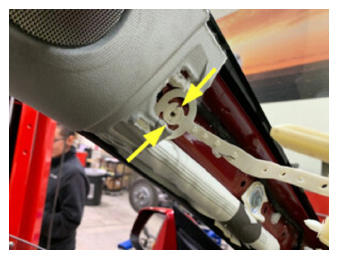

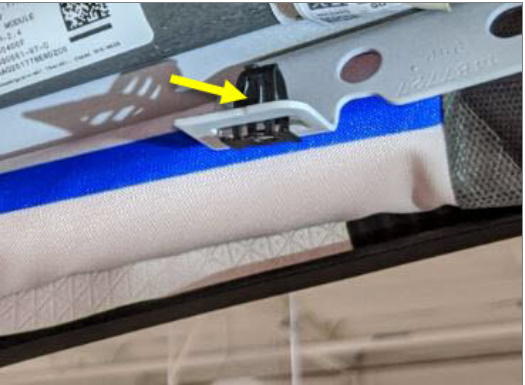

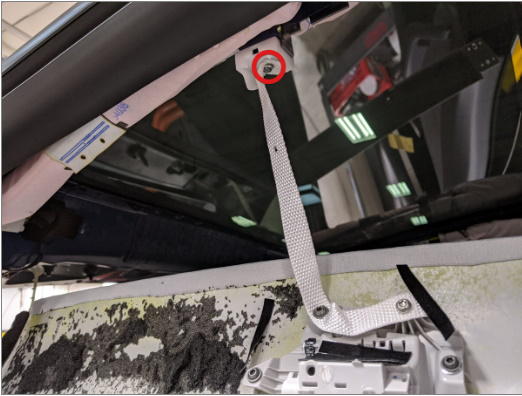

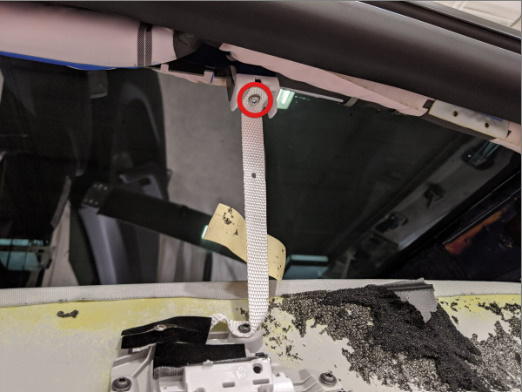

Release LH rear headliner tether from roof clip
NOTE: 1x screw, T20, 1.5 N.m

Courtesy of TESLA, INC.
Release RH rear headliner tether from roof clip
NOTE: 1x screw, T20, 1.5 N.m

Courtesy of TESLA, INC.

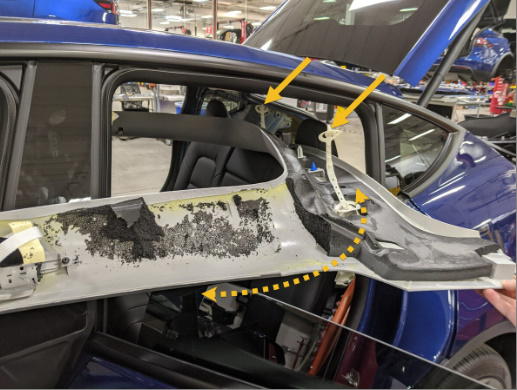

Remove rear headliner from vehicle
NOTE: 2x tether clips, Recommend assistance, Remove through rear door, Place headliner on clean surface

Courtesy of TESLA, INC.

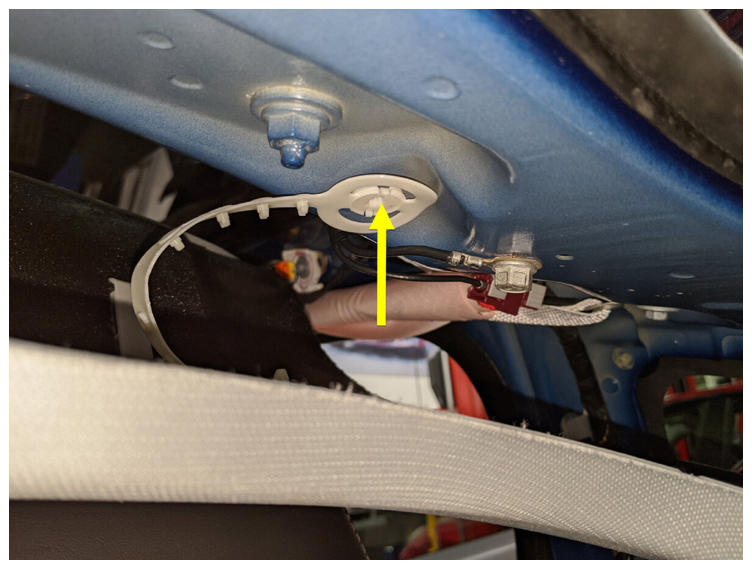

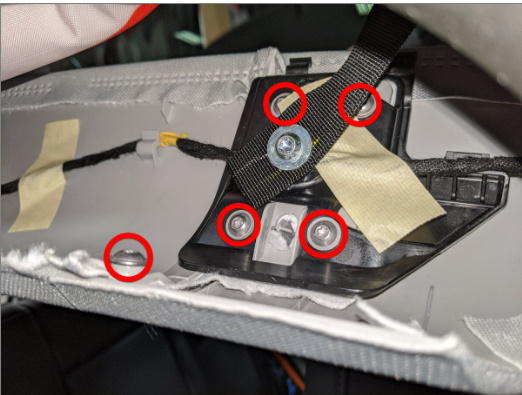

Remove LH coat hook tether clip from body
NOTE: 1x clip

Courtesy of TESLA, INC.
Remove RH coat hook tether clip from body
NOTE: 1x clip

Courtesy of TESLA, INC.

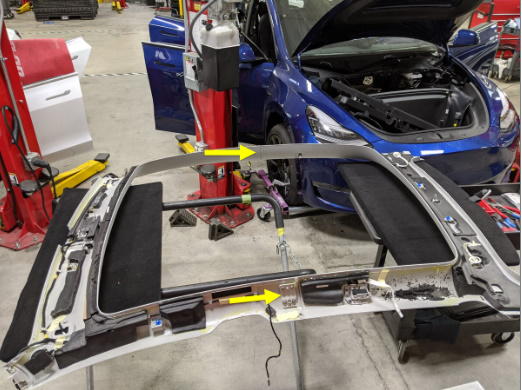

Separate new headliner into front and rear
NOTE: 10x screws, T20, 1.0 N.m

Tip: The headliner shipping bag might be useful as a "third hand" for installation.
1. Lay the shipping bag flat with the opening toward you.
2. Use scissors to cut both the top and bottom sides of the bag up the middle, until there is about 12 in (30 cm) left. The bag will look like a pair of pants.
3. Open the vehicle front/rear (as appropriate) doors, set the bag on the vehicle roof, and then bring the "legs" of the bag through each doorway into the cabin.
4. Tie the very ends of the legs together to make a very loose loop out of the cabin, over the roof, and back into the cabin. If the loop is too tight, cut a little more up the middle.
5. Use the loop to support the headliner during installation. If the loop is too loose, tie an additional knot to reduce slack.
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Place rear headliner into vehicle
NOTE: 2x tether clips, Recommend assistance, Install through rear door

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Place front headliner into vehicle
NOTE: Recommend assistance, Install through front door

Courtesy of TESLA, INC.

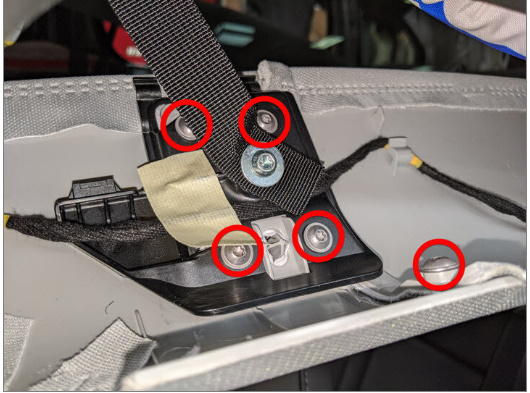

Install fasteners joining front and rear headliner trim
NOTE: 10x screws, T20, 1.0 N.m, Recommend assistance

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Connect RH rear map light and secure to rear portion of headliner
NOTE: 1x connector, 1x harness clip

Courtesy of TESLA, INC.
Connect LH rear map light and secure to rear portion of headliner
NOTE: 1x connector, 1x harness clip

Courtesy of TESLA, INC.

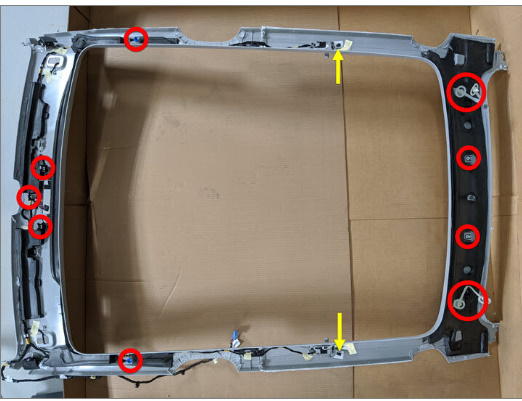

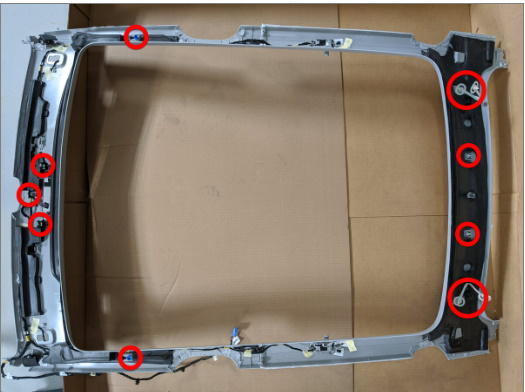

Install headliner to body
NOTE: 11x clips, Recommend assistance, Seat 2x clips at coat hooks when replacing headliner, Reseat primary seal at doors and liftgate to headliner

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

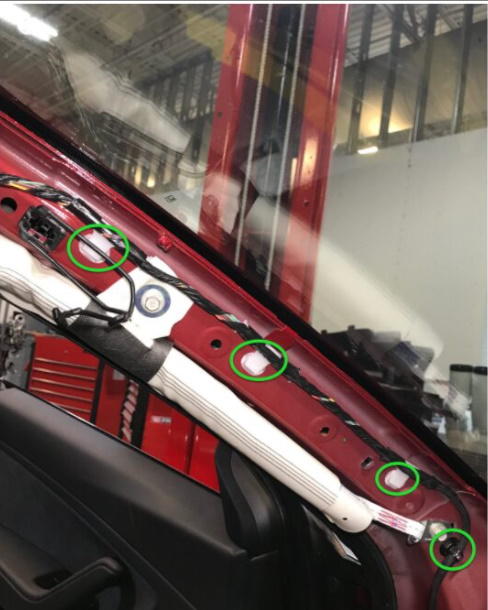

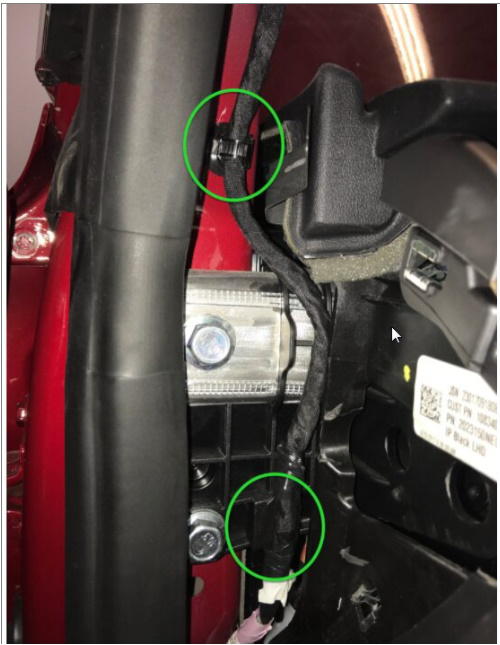

Install headliner harness clips to A-pillar area

NOTE: 6x clips

G00632981

Courtesy of TESLA, INC.

G00632982

Courtesy of TESLA, INC.

Connect headliner harness
NOTE: 1x connector

Courtesy of TESLA, INC.

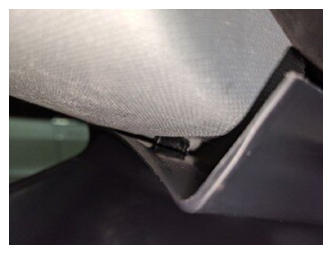

Install LH upper C-pillar trim
NOTE: 6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarter glass, Seat trunk seal to edge of trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Position LH trunk side trim and install lower clips
NOTE: 1x push clips, 5x clips, Guide front clip stanchions around LH C-pillar

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Connect 12V outlet and trunk switch connector and seat top edge of LH trunk side trim
NOTE: 6x clips, 2x connectors

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install LH trunk pocket bracket
NOTE: 1x push clip, 5x alignment tabs

Courtesy of TESLA, INC.

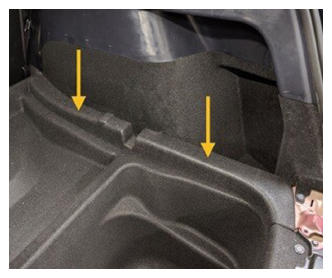

Install LH load floor bracket
NOTE: 3x tabs, 2x clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install RH upper C-pillar trim
NOTE: 6x clips, Guide front upper corner groove under headliner, Insert guide tab to headliner behind quarterglass, Seat trunk seal to edge of trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

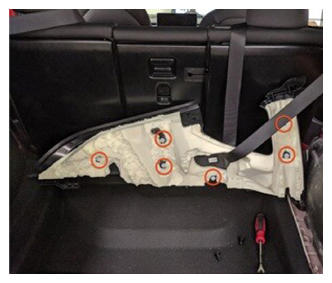

Install RH trunk side trim
NOTE: 1x push clip, 11x clips, Guide front clip stanchions around RH C-pillar

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install RH trunk pocket bracket
NOTE: 1x push clip, 5x alignment tabs

Courtesy of TESLA, INC.
Install RH load floor bracket
NOTE: 3x tabs, 2x clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

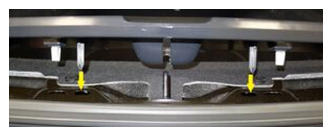

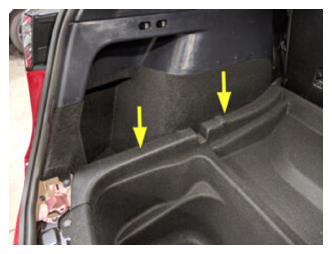

Install trunk sill trim
NOTE: 4x clips, Seat seal around edge of trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install front load floor

Courtesy of TESLA, INC.
Install rear load floor

Courtesy of TESLA, INC.

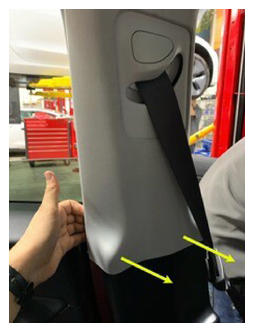

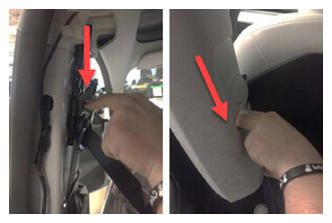

Install the LH upper B-pillar assembly
NOTE: 4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install LH rear sill trim
NOTE: 5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of LH rear sill trim into trunk side trim and work your way forward securing clips, Trim part may slightly differ, by vehicle build location

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Reseat LH rear door seal
NOTE: Seat pillar and sill trim tabs underneath seal

Courtesy of TESLA, INC.

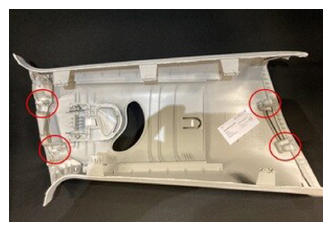

Install the RH upper B-pillar assembly
NOTE: 4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

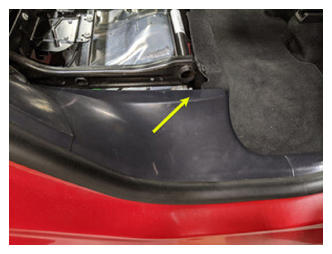

Install RH rear sill trim
NOTE: 5x clips, Rear edge is mated with groove in trunk side trim, Install rear edge of RH rear sill trim into trunk side trim and work your way forward securing clips

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Reseat RH rear door seal
NOTE: Seat pillar and sill trim tabs underneath seal

Courtesy of TESLA, INC.

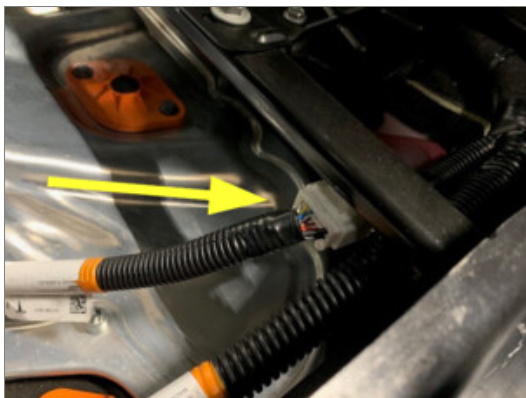

Install 2nd row seat cushion
NOTE: 1x connector, Slide rear cushion rearward then align foam with seat rail, Make sure cushion is fully seated with push & pull test

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Close liftgate
Move RH front seat to original position

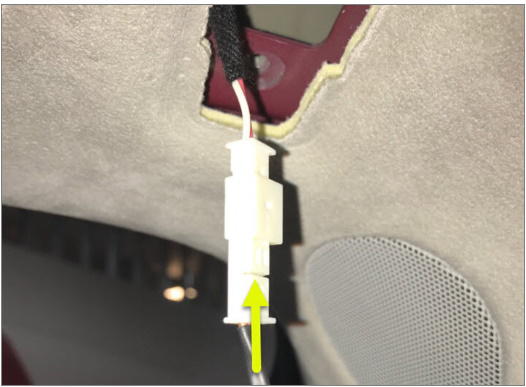

Connect RH sun visor connector
NOTE: 1x connector

Courtesy of TESLA, INC.

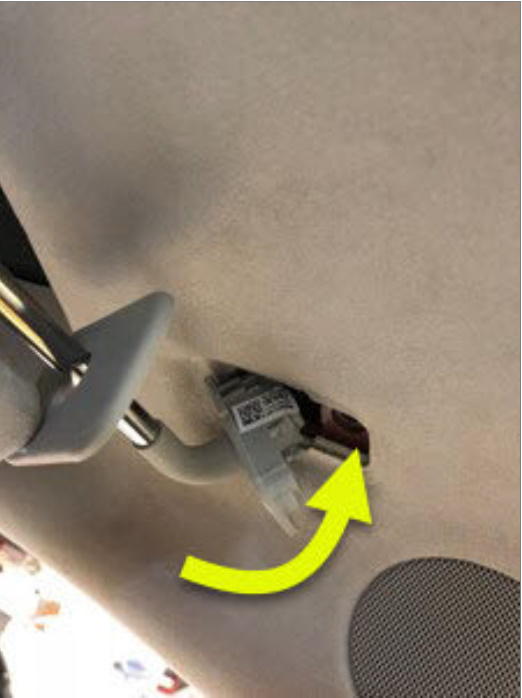

Install RH sun visor into headliner area
NOTE: Fold sun visor to the closed and folded down position but do not latch in place

Courtesy of TESLA, INC.

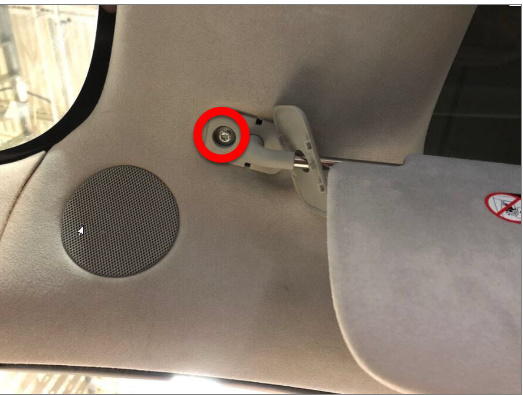

Install RH sun visor fastener
NOTE: 1x screw, T25, 3.5 N.m

Courtesy of TESLA, INC.

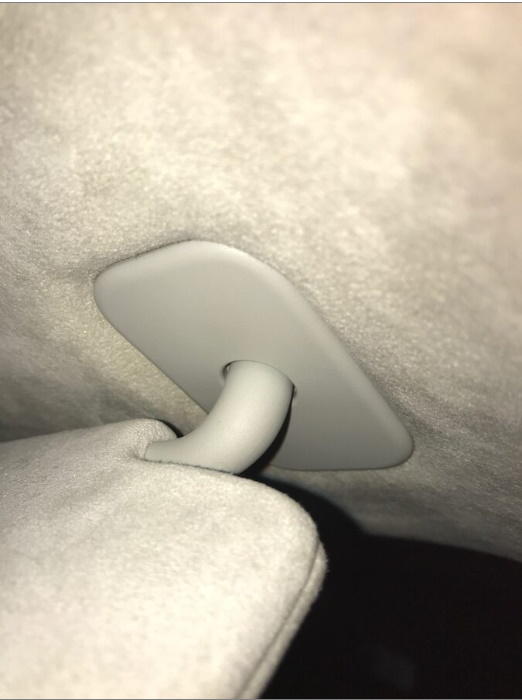

Install RH sun visor fastener

NOTE: 1x screw, T25, 3.5 N.m

G00632999

Courtesy of TESLA, INC.

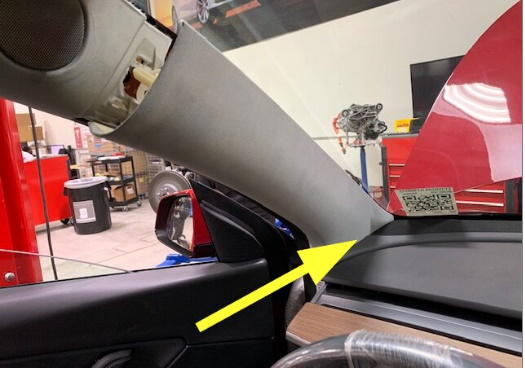

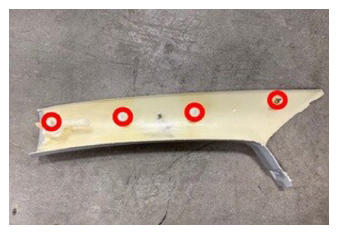

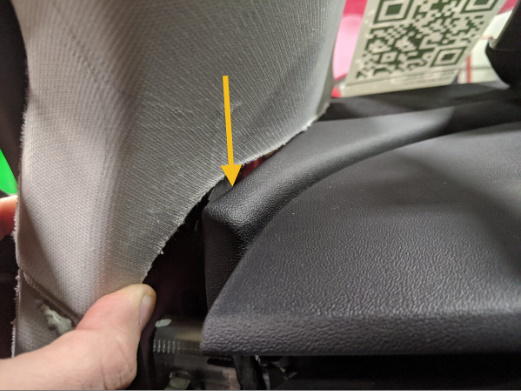

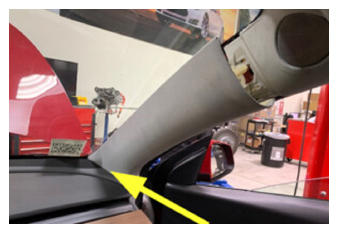

Install RH upper A-pillar trim
NOTE: 3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install RH mid A-pillar assembly
NOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Make sure the seal seat on top of the trim

Courtesy of TESLA, INC.
Install RH IP end cap
NOTE: 3x clips

Courtesy of TESLA, INC.
Move LH front seat to original position
Connect LH sun visor connector
NOTE: 1x connector

Courtesy of TESLA, INC.
Install LH sun visor into headliner area
NOTE: Fold sun visor to the closed and folded down position but do not latch in place

Courtesy of TESLA, INC.
Install LH sun visor fastener
NOTE: 1x screw, T25, 3.5 N.m

Courtesy of TESLA, INC.
Install LH sun visor bracket cover
NOTE: 4x clips

Courtesy of TESLA, INC.
Install LH upper A-pillar trim
NOTE: 3x clips, 1x tether, Slide bottom of trim along IP and speaker grill, attach tether to body side, Set clips starting at the bottom and work up, Pull seal over trim

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install LH lower A-pillar trim
NOTE: 6x clips, 2 locating pins, Align front locating pin first

Courtesy of TESLA, INC.
Install clip securing LH lower A-pillar trim
NOTE: 1x push clip

Courtesy of TESLA, INC.
Install LH mid A-pillar assembly
NOTE: 1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A-pillar, Pull seal over trim

Courtesy of TESLA, INC.
Install LH IP end cap
NOTE: 3x clips

Courtesy of TESLA, INC.
Connect to vehicle using Toolbox 3.0
Select 'Actions/Autodiag' and search for 'Service_Redeploy'
Select 'UPDATE_SERVICE-REDEPLOY', click 'Run', and allow routine to complete
NOTE: Select 'X' at top right of window to close once complete
Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle
Once firmware redeploy is complete, Verify on center display release notes are present
NOTE: If the redeploy fails you may receive an error message on UI
Raise all four windows
Close all four doors
NOTE: If 12V is powered up, Unlatch rear doors before closing
