Switch - Steering Wheel - LH - Remove And Replace: Remove

Remove the driver airbag. See Airbag - Driver (Remove and Replace) .

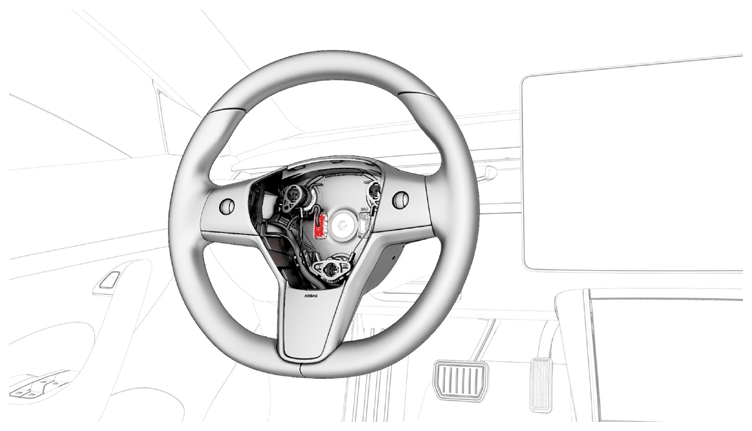

Disconnect the steering wheel electrical wiring harness from the connector.

Courtesy of TESLA, INC.

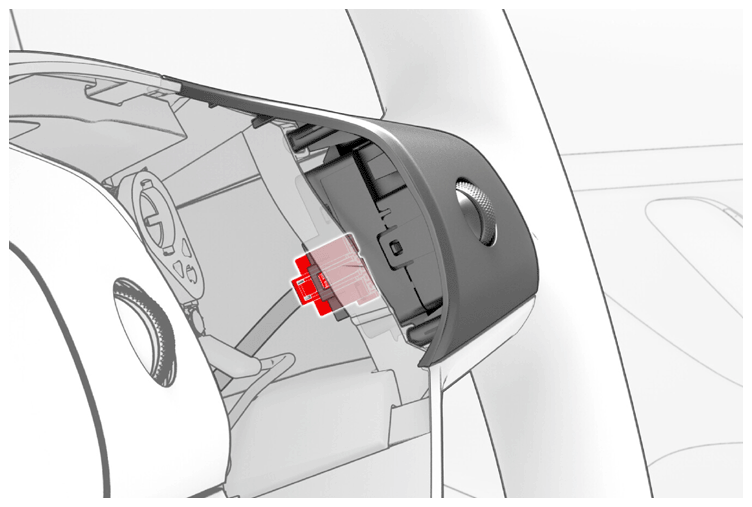

Disconnect the electrical harness from the LH steering wheel switch connector.

Courtesy of TESLA, INC.

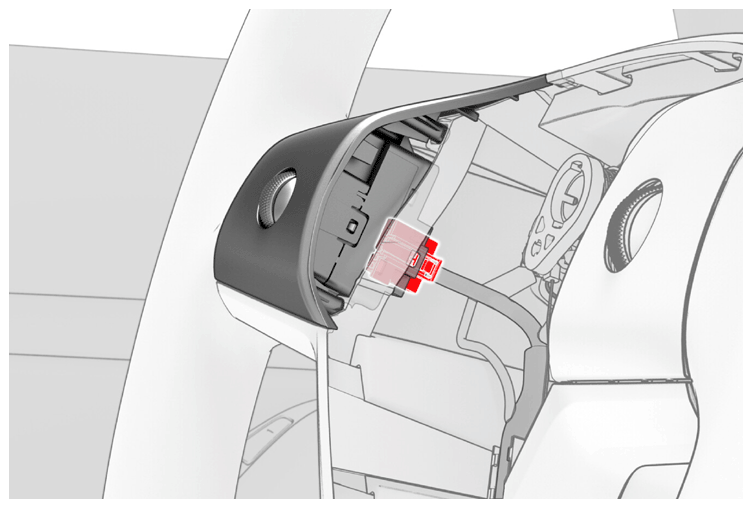

Disconnect the electrical harness from the RH steering wheel switch connector.

Courtesy of TESLA, INC.

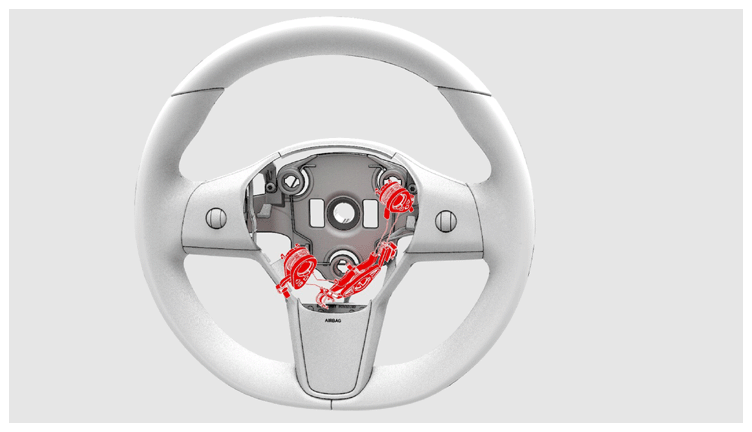

Release the clips that attach the horn assembly, and then move the horn assembly to the side.

Courtesy of TESLA, INC.

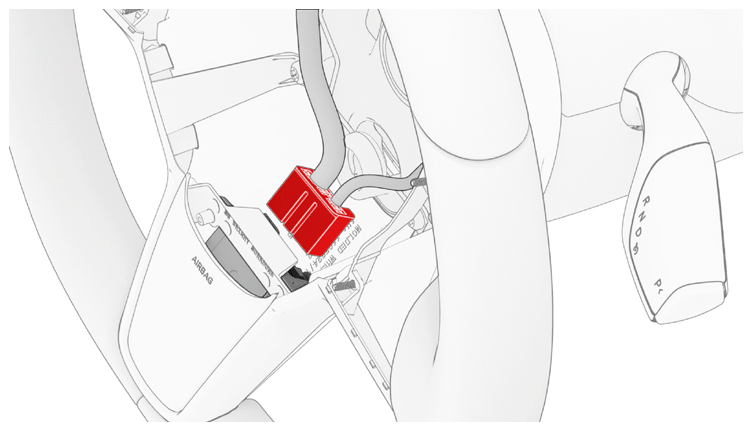

Disconnect the electrical harness from the lower connector, and then remove the electrical harness from the steering wheel.

Courtesy of TESLA, INC.

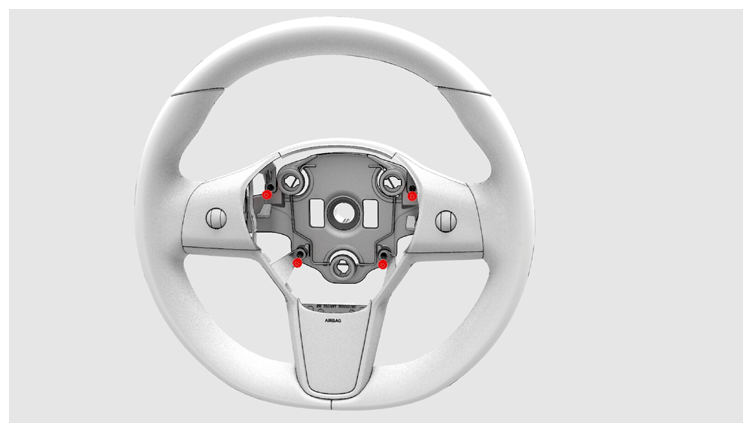

Remove the screws (x4) that attach the bright surround to the steering wheel, and then remove the surround.
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
Courtesy of TESLA, INC.

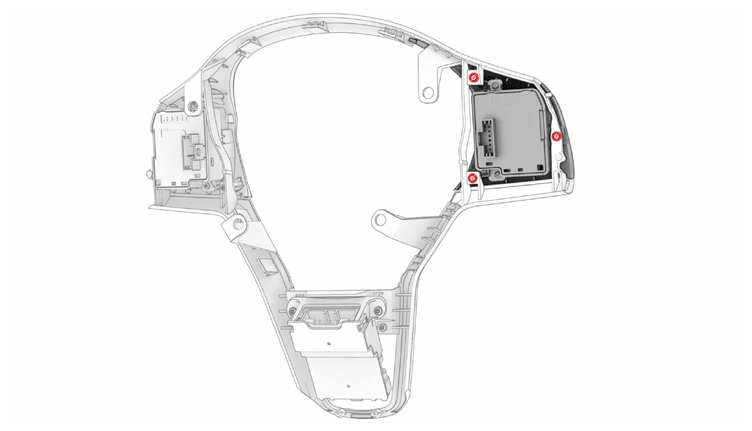

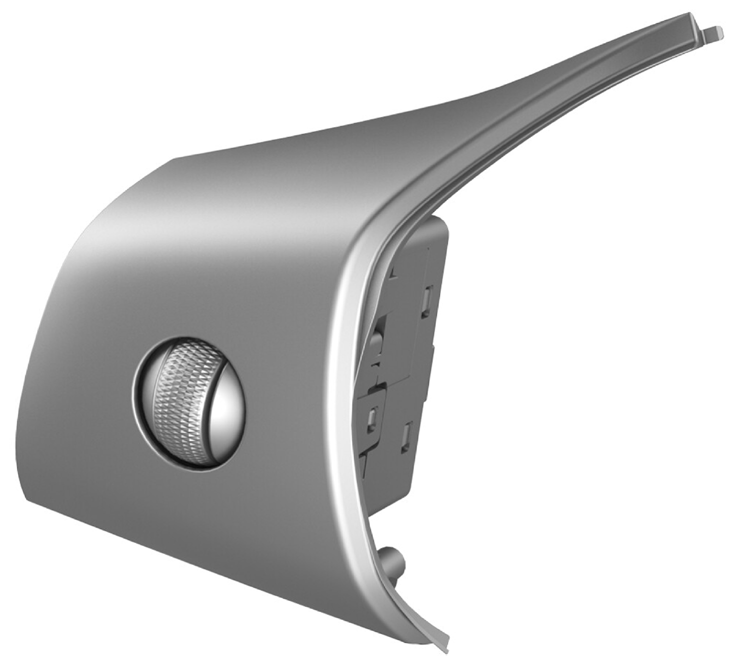

Remove the screws (x3) that attach the LH steering wheel switch to the bright surround, and then remove the switch from the surround.
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
