Light - Turn Signal/Fog - Front - LH - Remove And Replace: Remove

  1. Remove the LH front wheel. See Wheel (Remove and Install) .
  2. Remove the LH front fender garnish. See GARNISH - FENDER - FRONT - LH (REMOVE AND REPLACE)

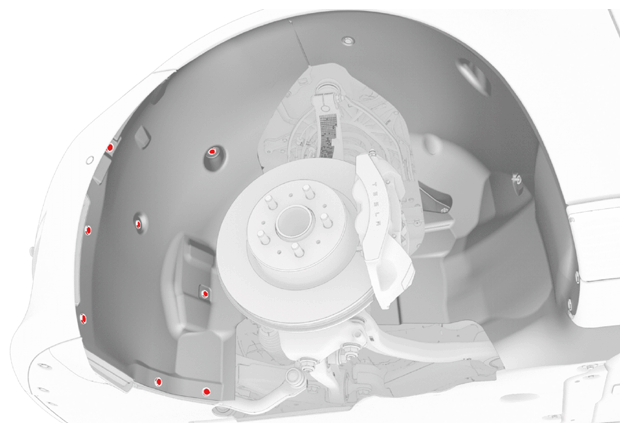

  3. Release the clips (x9) that attach the front portion of the LH front wheel arch liner to the vehicle, and then move the liner aside to perform the following steps.
    G14833985Courtesy of TESLA, INC.

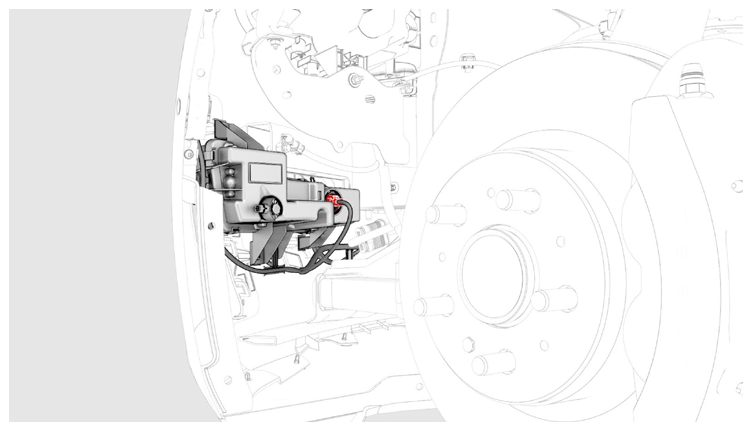

  4. Pull the red tab away from the electrical connector to release the connector lock, and then disconnect the electrical connector from the LH front turn signal/fog light.
    G14833986Courtesy of TESLA, INC.

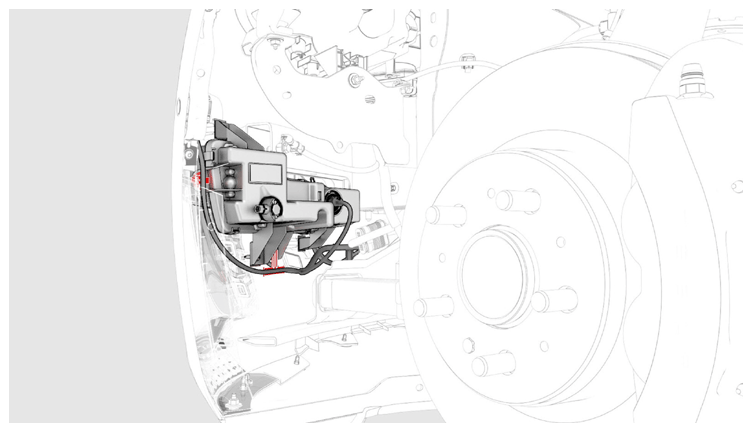

  5. Release the clips that attach the fascia electrical harness to the LH front turn signal/fog light.
    G14833987Courtesy of TESLA, INC.

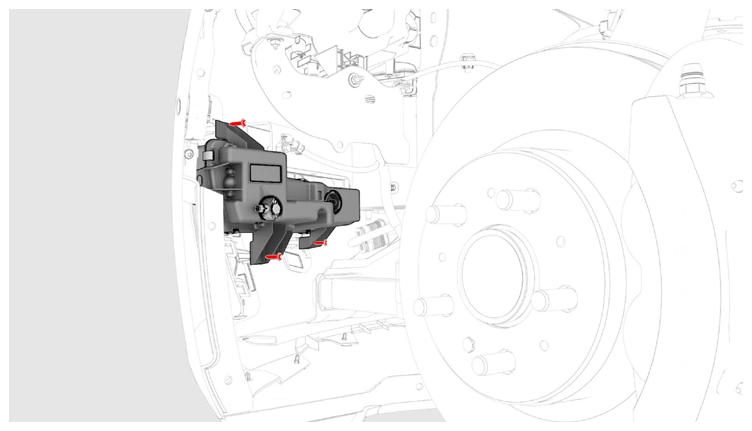

  6. Remove the screws, and then release the tabs that attach the LH front turn signal/fog light to the front fascia.

    2.8 N.m (2.1 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 4 in extension
    G14833988Courtesy of TESLA, INC.

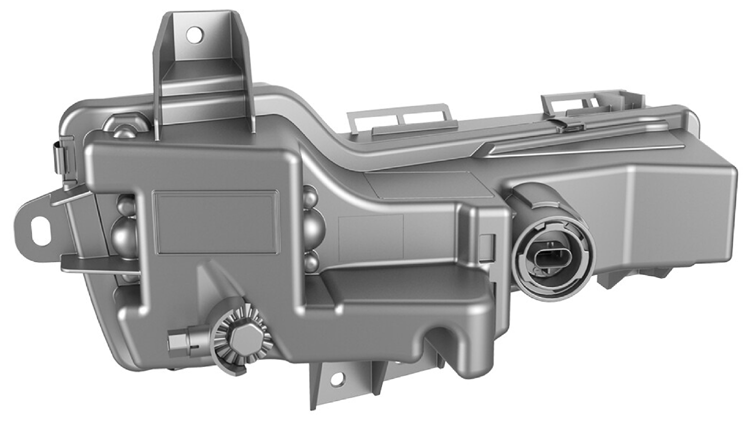

  7. Remove the LH front turn signal/fog light from the vehicle.
    G14833989Courtesy of TESLA, INC.
