ECU - Headlight - LH - Remove And Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Disconnect 12 V/LV power. See 12 V/LV POWER (DISCONNECT AND CONNECT) .
  3. Remove the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE) .

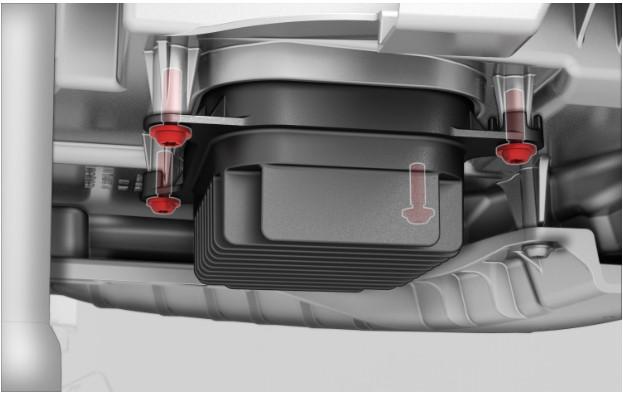

  4. Remove the screws (x4) that attach the headlight ECU to the LH headlight assembly.
    G00627569Courtesy of TESLA, INC.
  5. Release the electrical connector that connects the headlight ECU to the LH headlight assembly, and then remove the headlight ECU from the LH headlight assembly.
