ECU - Headlight - LH - Remove And Replace: Install

  1. Connect the LH headlight ECU connector, and then position the ECU onto the headlight.
    NOTE: Align the electrical connector to the headlight ECU, and then close the locking tab while pushing the connector into the headlight ECU.
    NOTE: Make sure that the electrical connector and locking tab are fully seated.

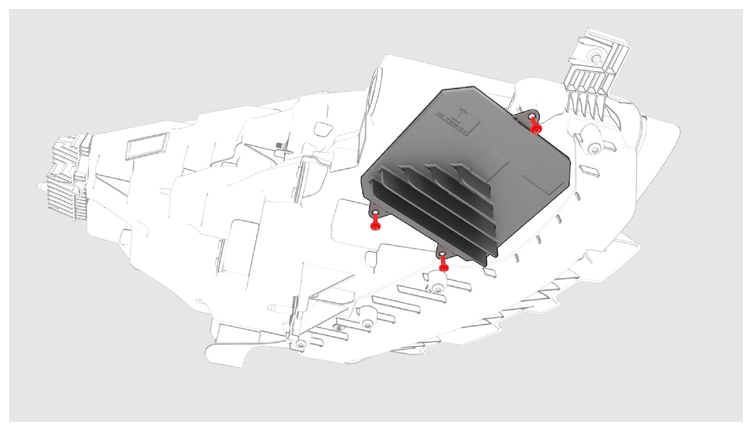

  2. Install the screws (x4) that attach the headlight ECU to the LH headlight assembly.

    2 N.m (1.5 ft-lbs)

    G14833913Courtesy of TESLA, INC.
  3. Connect 12 V/LV power. See 12 V/LV POWER (DISCONNECT AND CONNECT).
  4. Reinstall the vehicle firmware. See SOFTWARE REINSTALL .
  5. Install the underhood storage unit. See UNDERHOOD STORAGE UNIT (REMOVE AND REPLACE)
  6. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE)
