USB Hub - Center Console - Front (2.0) - Remove And Replace: Remove
- Open the sliding bin lid of the center console.
 Courtesy of TESLA, INC.
|

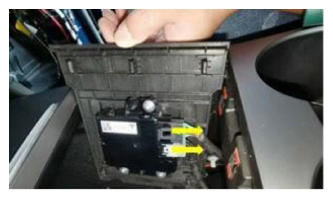

- Release the clips (x2) through the slots with a pick, and then release the rest of the clips (x3) that attach the bottom of the USB hub to the center console.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect the electrical harness from the USB hub connectors (x2), and then remove the USB panel from the center console.
 Courtesy of TESLA, INC.
|
- Remove the screws (x3) that attach the USB hub to the USB panel, and then remove the hub from the panel.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
