Tweeter Assembly - Front Door - LH (with Tether) - Remove and Replace: Install

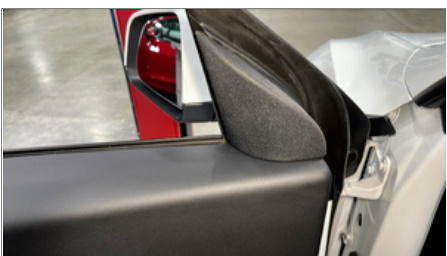

Position the LH front door tweeter onto the door assembly, feed the strap in, secure it over the body hook, and then hang the tweeter assembly aside.
NOTE:

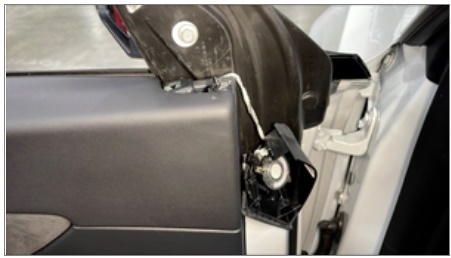

Make sure the tether stays in the position circled in red.

NOTE:
Install the tether using the routing noted during removal.

Tip: Use a trim to aid in installation if needed.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH front door trim panel. See Panel - Door Trim - Front - LH - Remove And Install .
Position the LH front door tweeter assembly onto the door panel, connect the connector, and then secure the clips (x2) and hook that attach the assembly to the door panel and body.
NOTE:
Make sure the component is fully engaged and the tether is not exposed from under the trim.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Raise the LH front window and close the LH front door.
