Subwoofer - Remove And Replace: Remove

  1. Open all the doors and fully lower all the windows.
  2. Move the driver seat fully forward.
  3. Remove the 2nd row lower cushion. See Seat Cushion - Lower - 2nd Row (Remove and Replace) .
  4. Remove the RH lower C-pillar trim. See TRIM - C-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
  5. Remove the rear frunk load floor. See frunk LOAD FLOOR - REAR (REMOVE AND REPLACE) .
  6. Remove the front frunk load floor. See frunk Load Floor - Front (Remove and Replace) .
  7. Remove the frunk sill trim. See Trim - Sill - frunk (Remove and Replace) .
  8. Remove the RH frunk side trim.
  9. Remove the RH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .

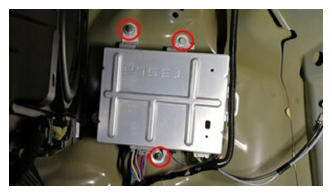

  10. Remove the nuts and bolt that attach the amplifier to the body, and then carefully set the amplifier aside.

    NaN N.m (NaN ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 2 in extension
    G14838897Courtesy of TESLA, INC.

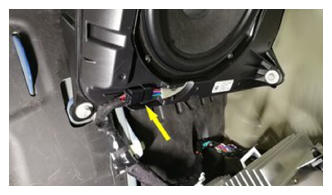

  11. Disconnect the subwoofer electrical connector.
    G14838898Courtesy of TESLA, INC.

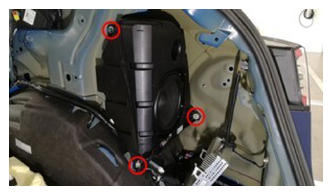

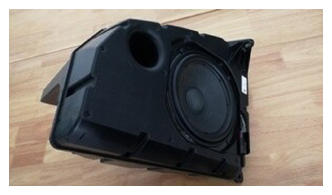

  12. Remove the nut and bolts that attach the subwoofer to the vehicle, and then remove the subwoofer from the vehicle.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • 2 in extension
    G14838900Courtesy of TESLA, INC.
    G14838901Courtesy of TESLA, INC.
