Sensor - Parking Distance - Outer - Front - Remove And Replace: Remove

  1. Remove the front wheel that is closest to the front outer parking sensor that is being serviced. See Wheel (Remove and Install) .
  2. Raise the vehicle to a comfortable working height.
  3. Remove the front fender garnish that is closest to the parking sensor that is being serviced. See GARNISH - FENDER - FRONT - LH (REMOVE AND REPLACE) .

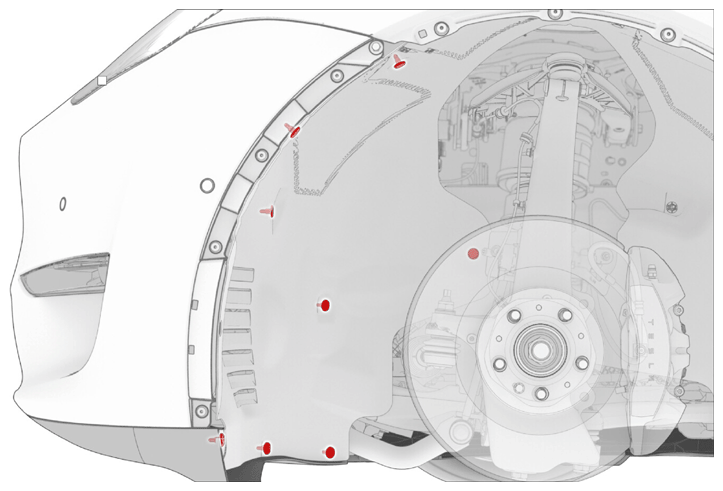

  4. Release the clips (x8) that attach the front of the front wheel arch liner to the vehicle, carefully pull the liner away from the front fascia, and then set it aside.
    G14833856Courtesy of TESLA, INC.

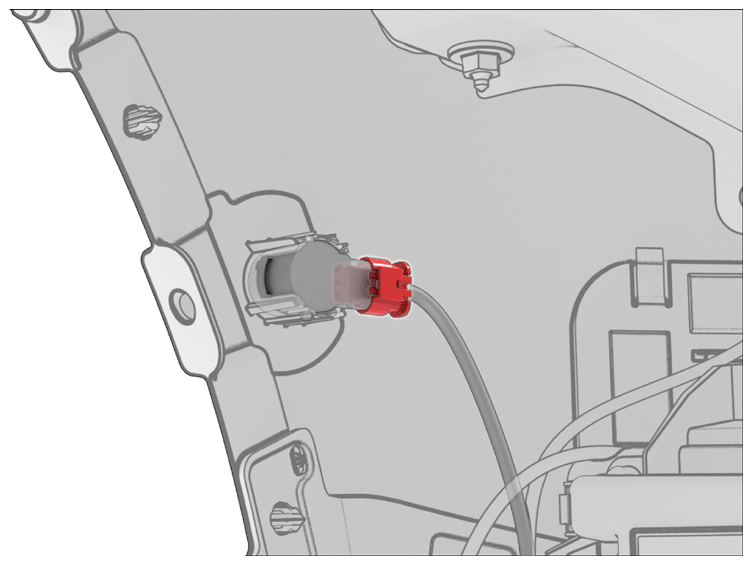

  5. Disconnect the electrical harness from the parking sensor.
    CAUTION: If the connector has a red-colored locking tab, DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G14833857Courtesy of TESLA, INC.

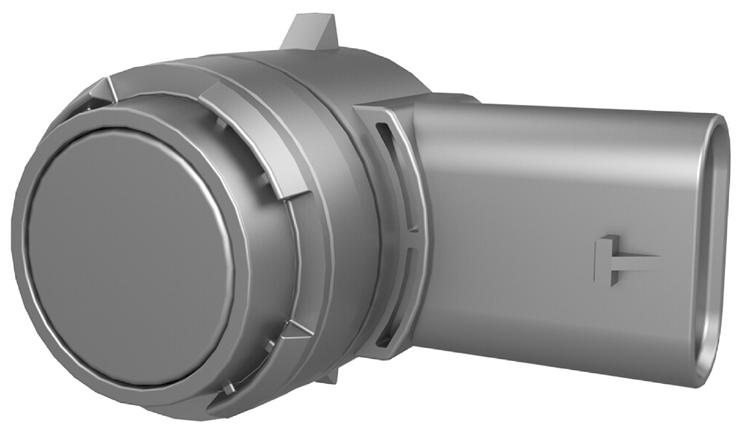

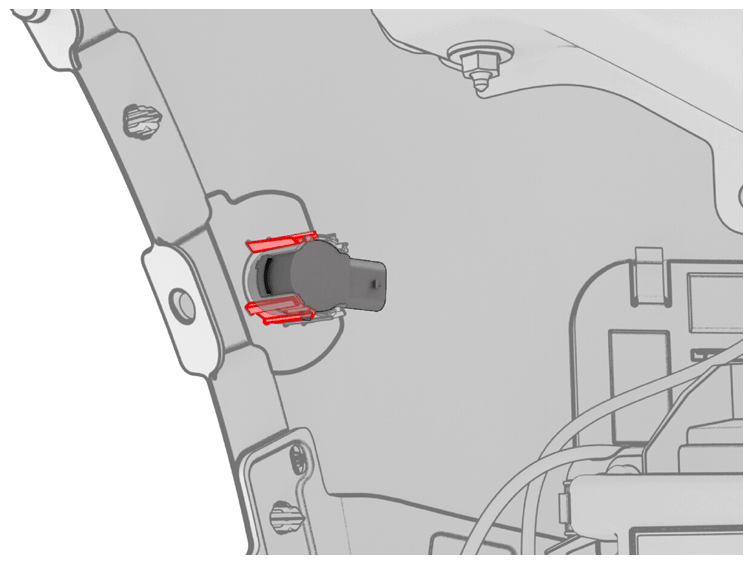

  6. Release the tabs (x2) that attach the front parking distance sensor to the front fascia, and then remove the sensor from the fascia.
    G14833858Courtesy of TESLA, INC.
    G14833859Courtesy of TESLA, INC.
