Hose - Washer - Reservoir (LHD) - Remove And Replace: Install

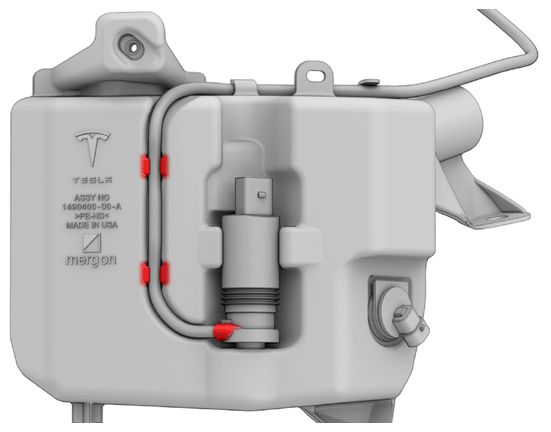

  1. Install the windshield washer hose onto the windshield washer pump and reservoir.
    G14834110Courtesy of TESLA, INC.

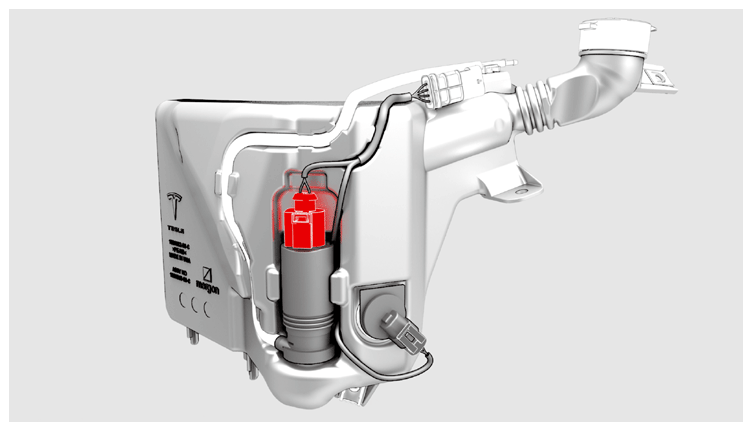

  2. Connect the electrical harness to the windshield washer pump connector and level sensor connector.
    G14834111Courtesy of TESLA, INC.

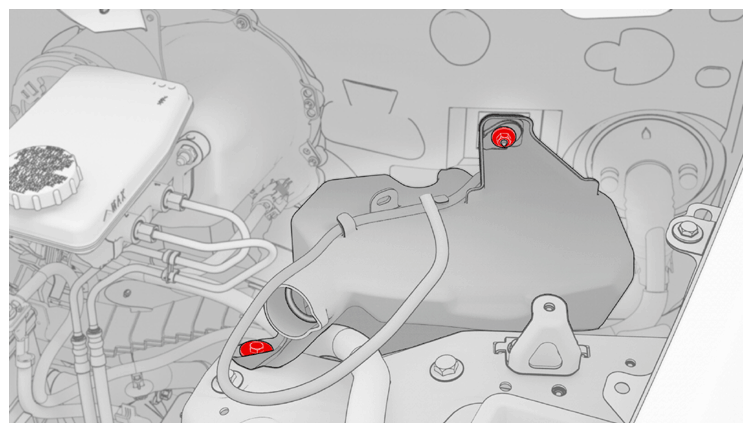

  3. Install the windshield washer reservoir into the vehicle, and then install the bolt and nut that attach the windshield washer reservoir to the body.

    3 N.m (2.2 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • 6 in extension
    G14834112Courtesy of TESLA, INC.

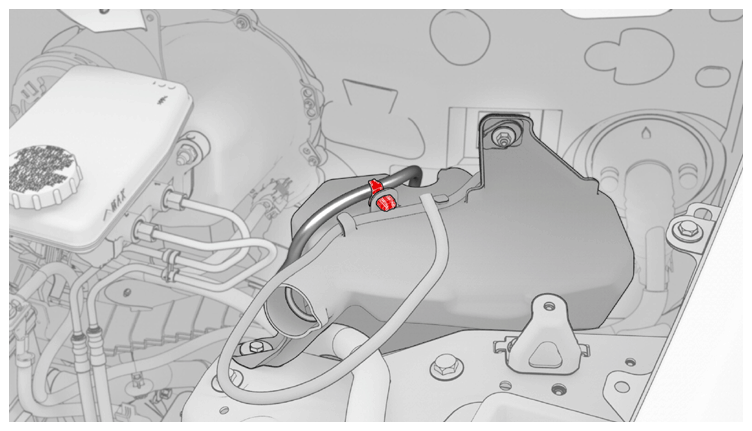

  4. Fasten the clip that attaches the electrical harness to the windshield washer reservoir.
    G14834113Courtesy of TESLA, INC.
  5. Install the wiper motor. See WIPER MODULE (REMOVE AND REPLACE) .
  6. Install the windshield washer reservoir filler neck. See FILLER NECK - RESERVOIR - WINDSHIELD WASHER (REMOVE AND REPLACE) .
  7. Install the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .
  8. Install the LH and RH wiper arms. See WIPER ARMS (REMOVE AND REPLACE) .
  9. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  10. Fill the windshield washer reservoir with fluid.
  11. Verify operation of the windshield wipers and washer.
