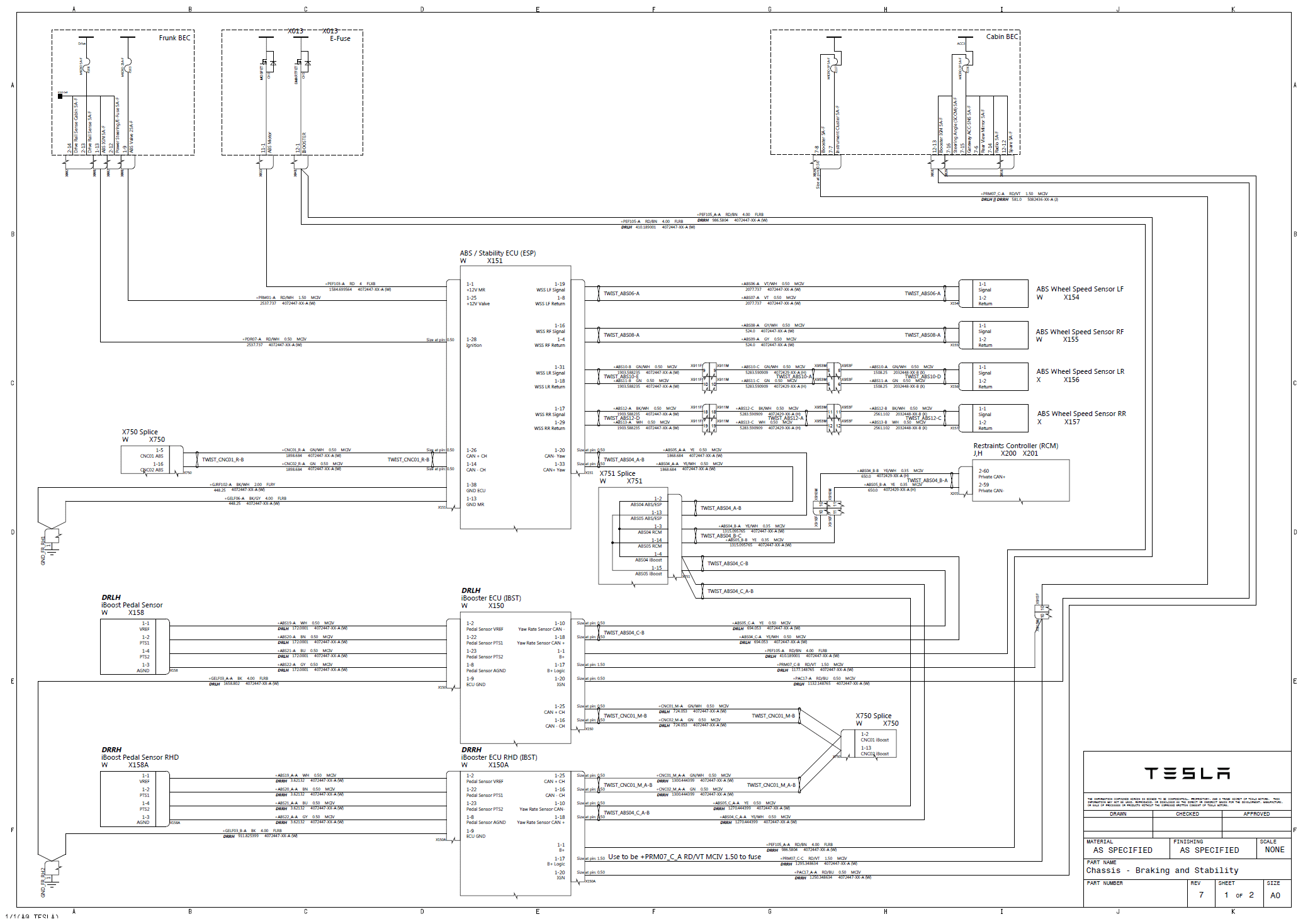

Chassis (Braking And Stability) 1/2 - Braking And Stability - Wiring Diagram [10/21/2019 -]

G15292821

Courtesy of TESLA, INC.
